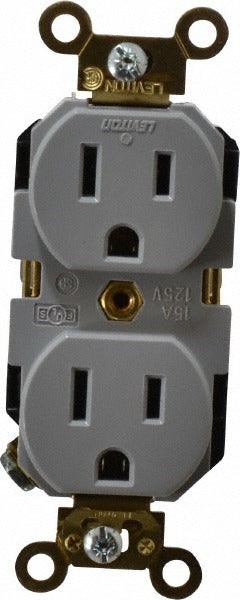

Leviton 5262-GY Duplex Receptacle 15A 125V Nema 5-15R Gray

Product Description

The LEVITON 5262-GY is an industrial-grade straight blade duplex receptacle rated at 15 amps and 125 volts AC, configured to NEMA 5-15R. Built with an impact-resistant thermoplastic body, this receptacle features a self-grounding design that eliminates the need for a separate grounding clip during installation. It accepts back-wired and side-wired terminations, giving electricians flexibility when working in standard electrical boxes. The flush-mount profile fits standard single-gang or multi-gang wallplate configurations. Licensed electricians install this device in commercial and industrial settings where a durable, code-compliant general-purpose outlet is required.

The 5262-GY is suited for commercial, industrial, and light industrial applications where a reliable 15-amp, 125-volt duplex outlet is specified. Its industrial grade rating makes it appropriate for higher-traffic or higher-demand environments compared to residential-grade devices. The flush-mount body fits standard electrical boxes used in new construction and retrofit wiring projects. The gray finish is commonly specified for industrial facilities, warehouses, and utility spaces where standard white or ivory devices are not preferred.

Key Features

• Industrial-grade construction rated for higher-demand applications than standard residential devices
• Self-grounding design eliminates the need for a separate ground clip, simplifying installation
• Back and side wiring terminals provide flexibility for different wiring methods
• Impact-resistant thermoplastic body withstands physical abuse in demanding environments
• NEMA 5-15R configuration accepts standard two-pole, three-wire 15-amp plugs
• Flush-mount profile compatible with standard single-gang electrical boxes

Compatibility

Designed as an OEM-style replacement or new-installation duplex receptacle for standard NEMA 5-15R applications in residential, commercial, and industrial electrical systems.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the circuit at the breaker panel and verify zero voltage with a meter before making any wiring connections. Both back-wire and side-screw terminations are available on this device; do not use both methods on the same terminal simultaneously. Torque screw terminals to the value specified on the device or per NEC requirements for the wire gauge being used.
