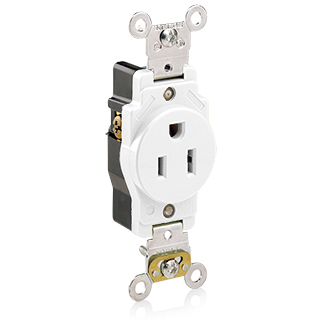

Leviton 5261W SM Self-Grnd Receptacle 125 Volt 15 Amp

Product Description

Leviton 5261W is a single outlet self-grounding receptacle designed for commercial applications. The receptacle is rated for 125 volts and 15 amps, suitable for various electrical needs. Its thermoplastic construction ensures durability in demanding environments.

• Self-grounding feature for safety
• Compatible with NEMA 5-15R ratings
• Back and side wired for flexible installation options

Product Highlights

This receptacle is ideal for heavy-duty usage and adheres to industrial specifications, ensuring reliability and safety.

Product Information

Standard Information

• Catalog Number: 5261-W
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• NEMA Rating: 5-15R
• Material: Thermoplastic
• Dimensions: 46 H x 1.31 W x 16 D inches
• Temperature Rating: -40 to 60 degrees C
• Wire Size: 14-10 AWG
• Number of Wires: 3
• Grounding: Self-grounding
• Environmental Conditions: Flammability rated V-2 per UL 94
• Warranty Length: 10 years
