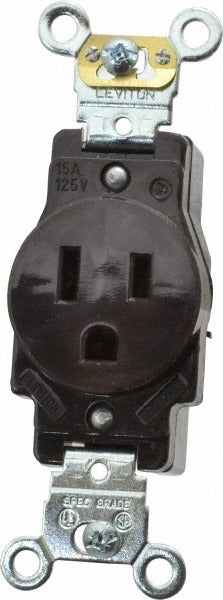

Leviton 5261 Single Receptacle Nema 5-15R 15A 125V

Product Description

The LEVITON 5261 is a straight blade single receptacle rated at 15 amps and 125 volts AC with a NEMA 5-15R configuration. Built to industrial grade standards, it features a self-grounding design that simplifies installation and ensures a reliable ground path without a separate grounding clip. The thermoplastic body is impact-resistant, making it well suited for demanding environments. It accepts back and side wiring methods, offering flexibility during rough-in. This receptacle is intended for licensed electricians performing commercial and industrial wiring work where a single-outlet flush-mount device is required.

The LEVITON 5261 is used in single-outlet flush-mount applications in commercial, industrial, and light-duty residential settings. Its 2-pole, 3-wire, single-phase configuration covers standard 15-amp branch circuits. The brown finish is commonly specified in industrial environments where standard white or ivory devices are not preferred. Back and side wiring support makes it compatible with both quick-connect and screw-terminal installation methods depending on jobsite requirements.

Key Features

• NEMA 5-15R configuration rated at 15 amps and 125 volts AC
• Industrial grade construction with impact-resistant thermoplastic body
• Self-grounding design eliminates need for a separate grounding clip
• Back and side wiring methods supported for installation flexibility
• Flush mount, 2-pole, 3-wire, single-phase design
• Meets ANSI C-73, UL, CSA, and NOM 057 standards

Compatibility

Designed as an OEM-style replacement or new-installation single receptacle for standard 15-amp, 125-volt single-phase branch circuits requiring a NEMA 5-15R flush-mount outlet.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. De-energize the branch circuit at the panel and verify with a meter before making any wiring connections. Secure the device to a listed outlet box and confirm the grounding path is continuous before restoring power.
