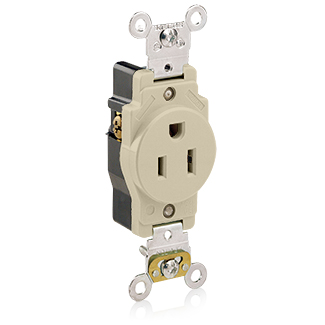

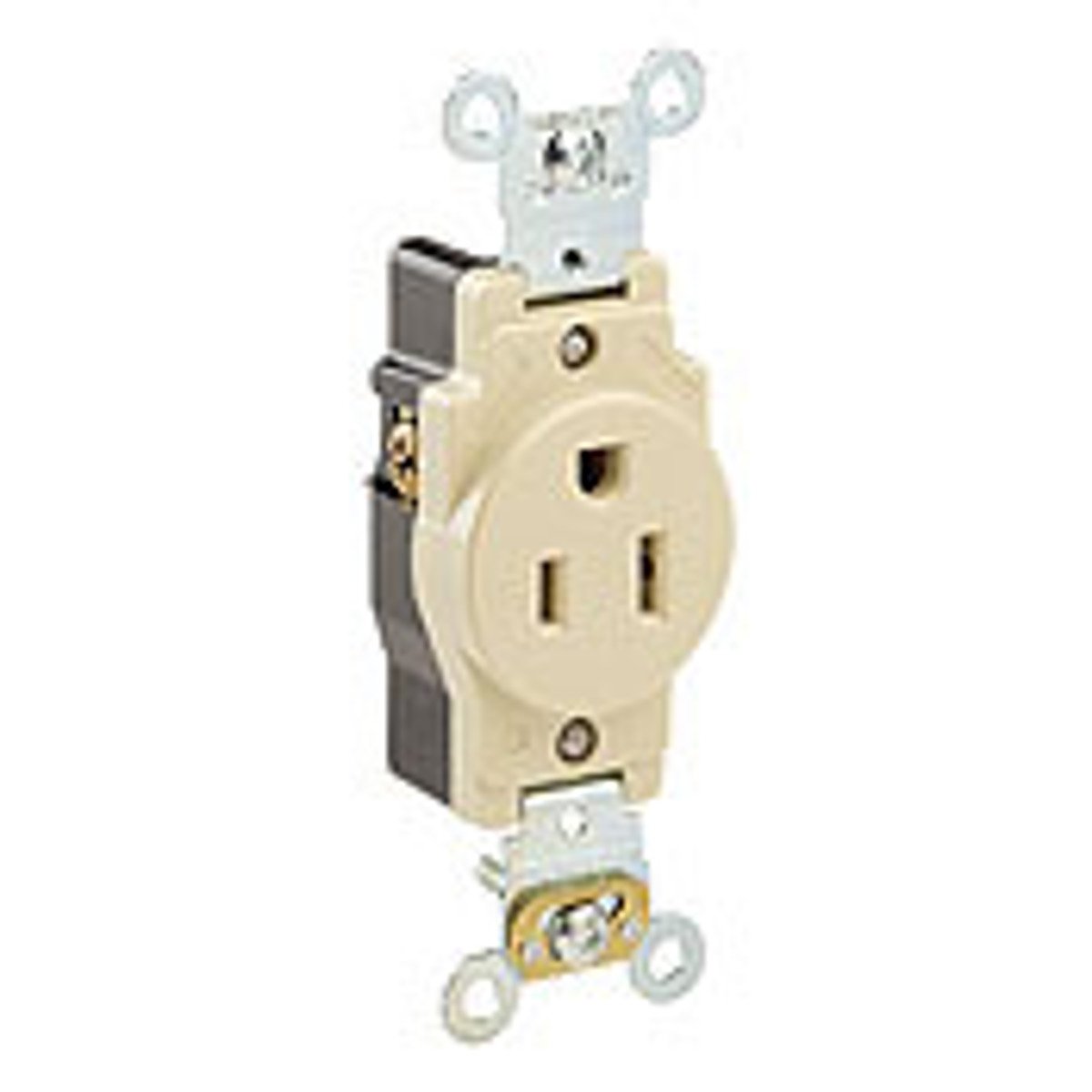

Leviton 5261-I 15 Amp 125 Volt NEMA 5-15R 2-Pole 3 Wire Industrial Series Heavy Duty Specification Grade Ivory Single Receptacle

Product Description

The Leviton 5261-I is a 15 Amp, 125 Volt NEMA 5-15R single receptacle designed for heavy-duty industrial applications. This receptacle features robust construction with a thermoplastic face to withstand demanding commercial use.

• 15 Amp and 125 Volt rating
• Self-grounding back and side wired installation
• Designed for use in commercial environments

Product Highlights

This industrial-grade receptacle is suitable for heavy-duty use and is ideal for various commercial settings.

Product Information

Standard Information

• Brand: Leviton
• Manufactured By: Leviton Mfg Co

Technical Specifications

• Catalog Number: 5261-I
• Voltage: 125 Volt
• Amperage: 15 Amp
• NEMA Rating: 5-15R
• Wire Count: 3
• Number of Poles: 2
• Material: Thermoplastic
• Dimensions: 46 inches H x 1.31 inches W x 16 inches D
• Operating Temperature: -40 to 60 Degrees Celsius
• Torque Rating: 14 lb-in
• Dielectric Strength: 2000 V
• Environment Rating: Rated V-2 per UL 94
• Warranty: 10 Years
