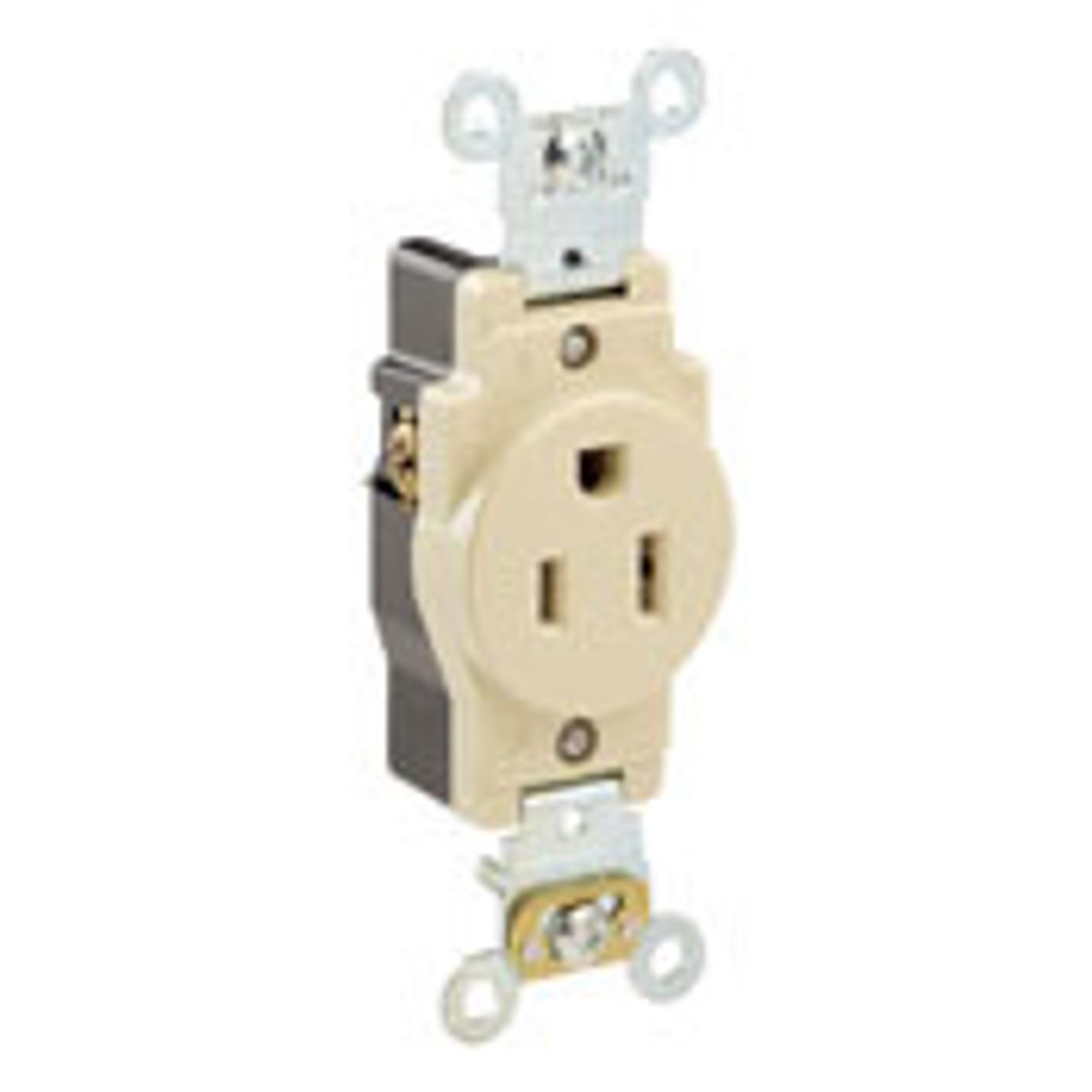

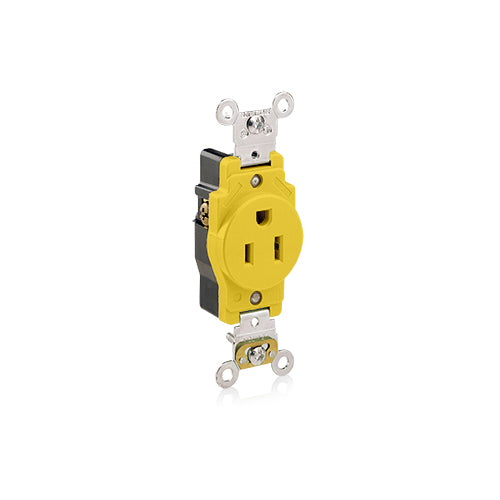

Leviton 5261-CR Single Receptacle 15 Amp 125 Volt NEMA 5-15R

Brand: LEVITON
SKU: 5261-CR
Availability: Out Of Stock
$50.13
$50.13
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Leviton 5261-CR is a heavy-duty industrial grade receptacle engineered for top performance in demanding commercial and institutional applications. This single receptacle outlet features a durable, thermoplastic face and impact-resistant construction. It supports back and side wiring options and is suitable for use in marine and industrial environments. Rated for 15 Amp and 125 Volt with NEMA 5-15R configuration.

  • Heavy-Duty Industrial Specification Grade
  • Corrosion-Resistant
  • Self-Grounding

Product Highlights

This receptacle is ideal for commercial applications requiring a robust and corrosion-resistant wiring device. It offers reliable performance and ease of installation.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 5261-CR
  • Country of Origin: Please Contact Customer Service
Technical Specifications
NEMA
WD-6
Type
Straight Blade;Single Outlet
Brand
Leviton
Grade
Heavy-Duty Industrial Specification Grade
Voltage
125 Volt
Amperage
15 Amp
Material
Santoprene TPV
Standard
NEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (LR-406);UL Fed Spec WC-596 (File E13399);UL Listed 498
Grounding
Self-Grounding
Sub Brand
Industrial Receptacles
Wire Size
18-10 AWG
Blade Type
Nickel-Plated Brass
Dielectric
2000 V
Wire Count
3
Device Type
Single Receptacle Outlet
Product UPC
07847712512
12-Digit UPC
078477125120
Applications
For Commercial
Body Material
Santoprene TPV
Mounting Type
Wallbox
TC Connection
Back and Side Wired
Conductor Size
18-10 AWG
Connection Type
Back and Side Wired
Number of Poles
2 Pole
Number of Wires
3 Wire
Number of Phases
1 Phase
Termination Type
Back Wire,Side Wire
Flamability Class
Rated V-2 Per UL 94
Temperature Rating
-40 to 60 DEG C
Dielectric Strength
2000 (Min.)
Operating Temperature
-40 degrees C
Environmental Conditions
Flammability (Rated V-2 per UL94)
Catalog Number
5261-CR
Manufacturer
LEVITON
Made in USA
No
Amperage Rating
15 A
Application
Commercial
Mounting
Wall
Number of Outlets
1
Phase
1
Item Type
Straight Blade;Single Outlet
Horsepower
1/2 hp
Terminal Type
Back/Side Wire
Voltage Rating
125 VAC
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Pole
2
Wire
3
Assembly Screws
Stainless Steel 300
Blades/Contacts
Nickel-Plated Brass
Bushing
Santoprene TPV
Compression Nut, Strain Relief
Nylon
Terminal Screws
Nickel-Plated Brass
Wire Module
Thermoplastic
Cord Range
.375 - .655
Product ID
Ratings and NEMA I.D. permanently marked on device
Terminal Accom.
18-10 AWG
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Termination
Back or Side Wire
Feature
Corrosion-Resistant,Smooth Face
ANSI
C-73
CSA C22.2 No. 42
File LR-406
NOM
057
UL
498
UL Fed Spec WC-596
File E13399
Volts AC
120
Amps
15
NEMA Configuration
5-15R
IGCC
4536
