Leviton 5259-VY Grounding Hinged Straight Blade Connector 125 VAC 15 A 2 Poles 3 Wires Yellow

Product Description

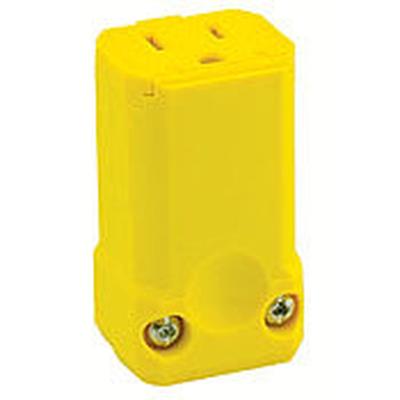

The Leviton 5259-VY is a grounding hinged straight blade connector. It is rated for 125 VAC and 15 A with two poles and three wires. The connector features a durable nylon construction with a bright yellow color for visibility. This product is suitable for various industrial applications due to its robust design.

• Designed for 15 A and 125 V applications
• Compatible with wires ranging from 18 to 10 AWG
• Hinged design allows for quick and easy installation

Product Highlights

This connector ensures reliable performance in tough conditions. It meets NEMA 5-15R standards and offers a wide cord clamp range of point two four five to point seven inches in diameter. The product is suitable for environments with temperatures from negative forty to sixty degrees Celsius.

Product Information

Standard Information

• Catalog Number: 5259-VY
• Material: Nylon

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 VAC
• Number of Poles: 2
• Number of Wires: 3
• NEMA Rating: 5-15R
• Temperature Rating: -40 to 60 degrees Celsius
• Dimensions: 1.41 in L x 1.23 in W x 2.5 in H
