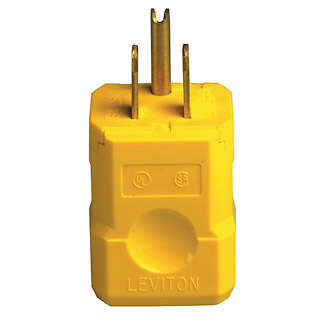

Leviton 5256-VY Straight Blade Plug 125VAC 15A 2 Poles 3 Wires

Product Description

The Leviton 5256-VY is a straight blade plug designed for cable mounting. It operates at 125 VAC and has a current rating of 15 A. This industrial-grade plug is equipped with two poles and three wires, featuring a NEMA 5-15P configuration for secure connections. The nylon body is yellow for high visibility and durability. It is suitable for use in various applications, particularly in industrial environments.

• Amperage rating: 15 A
• Voltage rating: 125 VAC
• Temperature range: -40 to 60 degrees Celsius

Product Highlights

This product combines a robust design with easy installation features. It includes a hinged design that simplifies the setup process and allows for quick access. The clear back cover aids in visual inspection, ensuring safety and reliability during use.

Product Information

Standard Information

• Manufacturer: Leviton
• Model Number: 5256-VY

Technical Specifications

• Current Rating: 15 A
• Voltage Rating: 125 VAC
• Grounding: Grounded
• NEMA Rating: 5-15P
• Color: Yellow
• Material: Super Tough Nylon
• Dimensions: 1.81 in H x 1.41 in W x 1.22 in D
• Number of Poles: 2
• Number of Wires: 3
• Cord Diameter: 0.25 to 0.655 in
