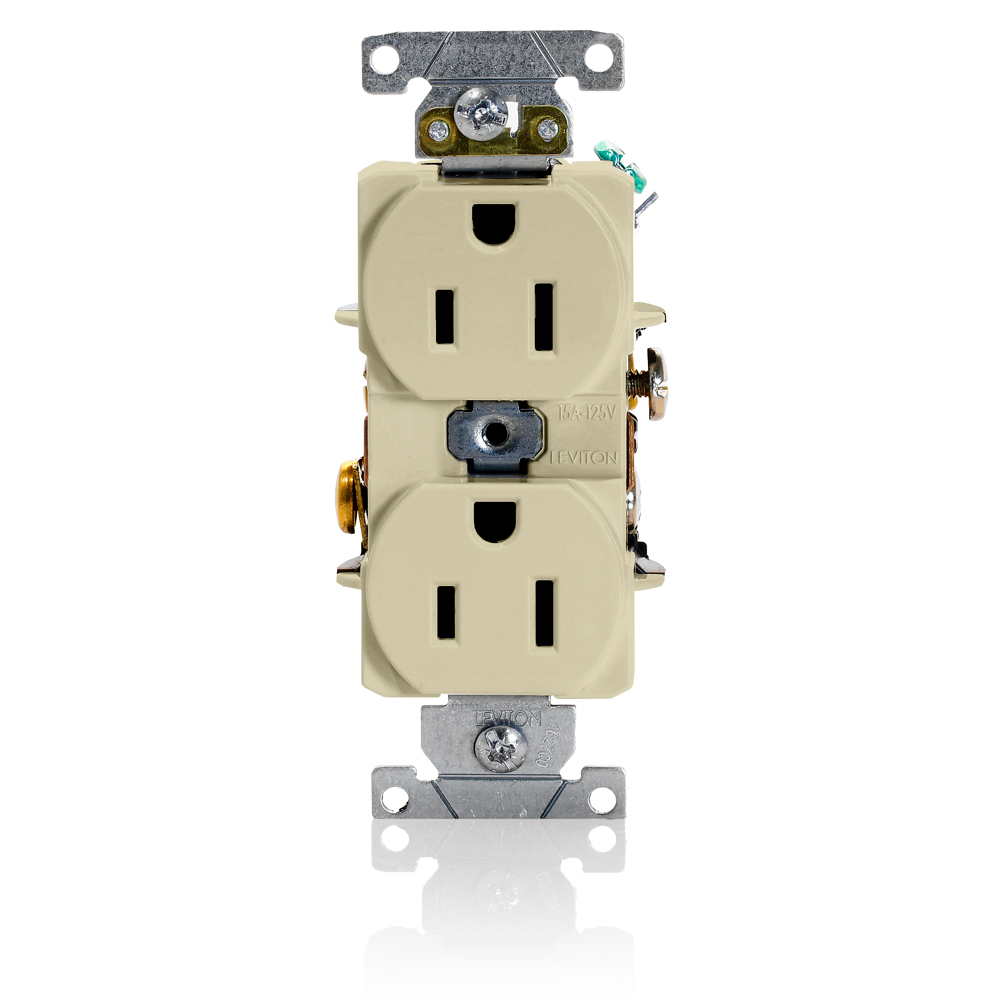

Leviton 5252-I Heavy-Duty Industrial Specification Grade Duplex Receptacle 15A 125V NEMA 5-15R

Product Description

Leviton 5252-I is a Heavy-Duty Industrial Specification Grade Duplex Receptacle that operates at fifteen amps and one hundred twenty-five volts. It features a straight blade design and a self-grounding mechanism ideal for commercial installations. This product is engineered for durability and performance in rigorous environments.

• Impact resistant thermoplastic nylon cover
• Back and side wire termination options
• Smooth face design to reduce dirt accumulation

Product Highlights

The Leviton 5252-I receptacle provides robust electrical connectivity with prominent safety features.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5252-I
• Material: Thermoplastic Nylon

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 125 V
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to +60 degrees C
• Dimensions: 4.06 inches H x 1.55 inches W x 1.12 inches D
• Country of Origin: Mexico
• Flammability Rating: Rated V-2 per UL 94
