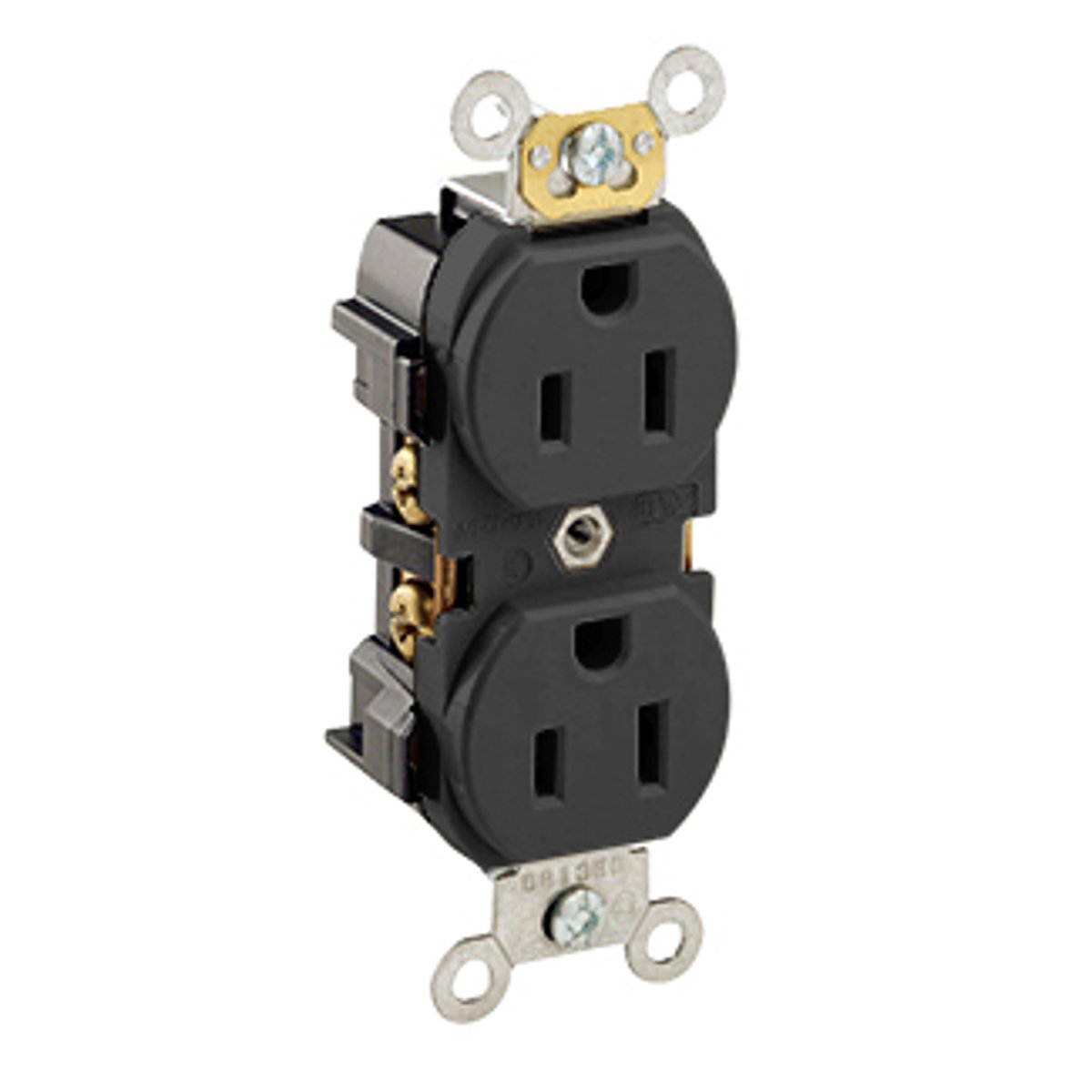

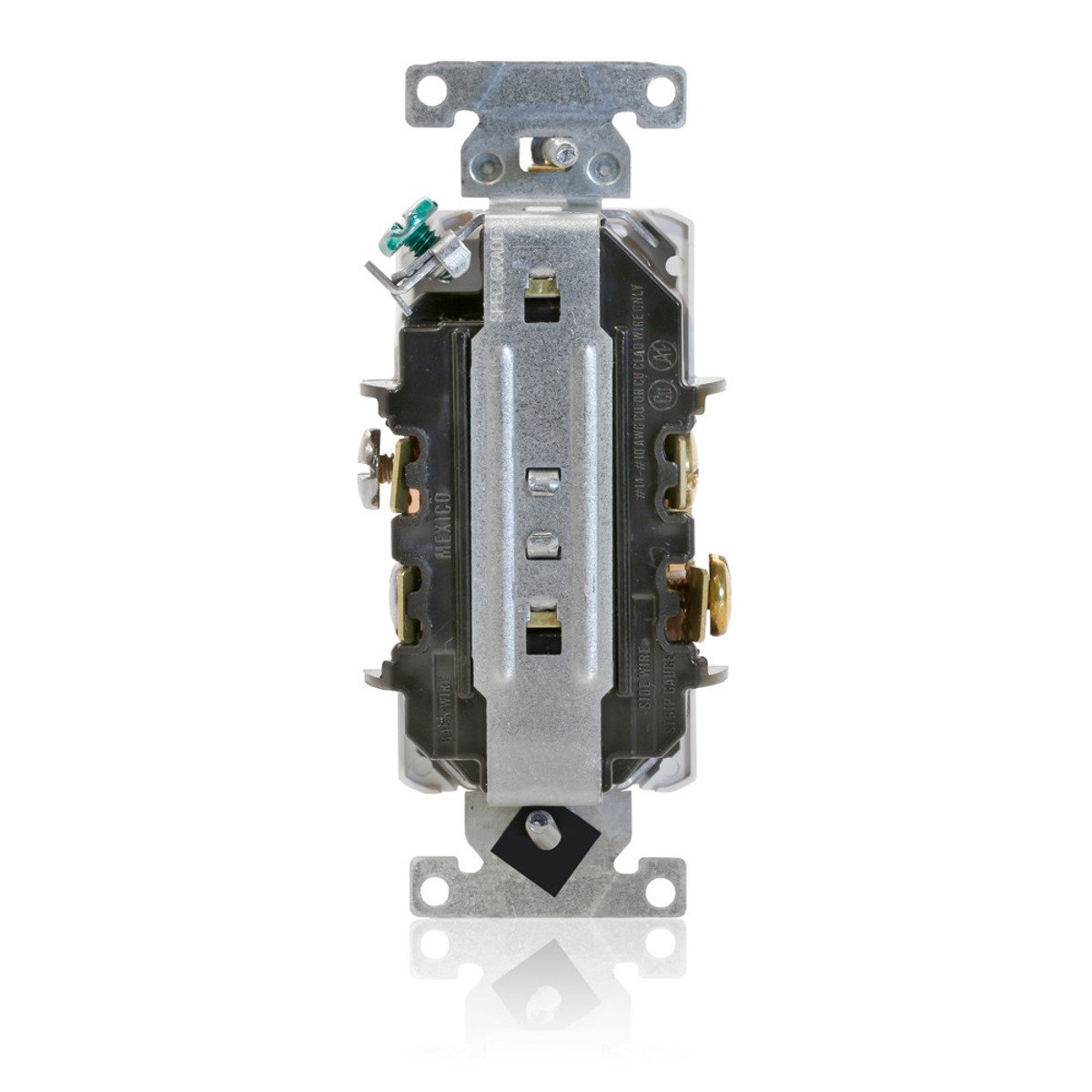

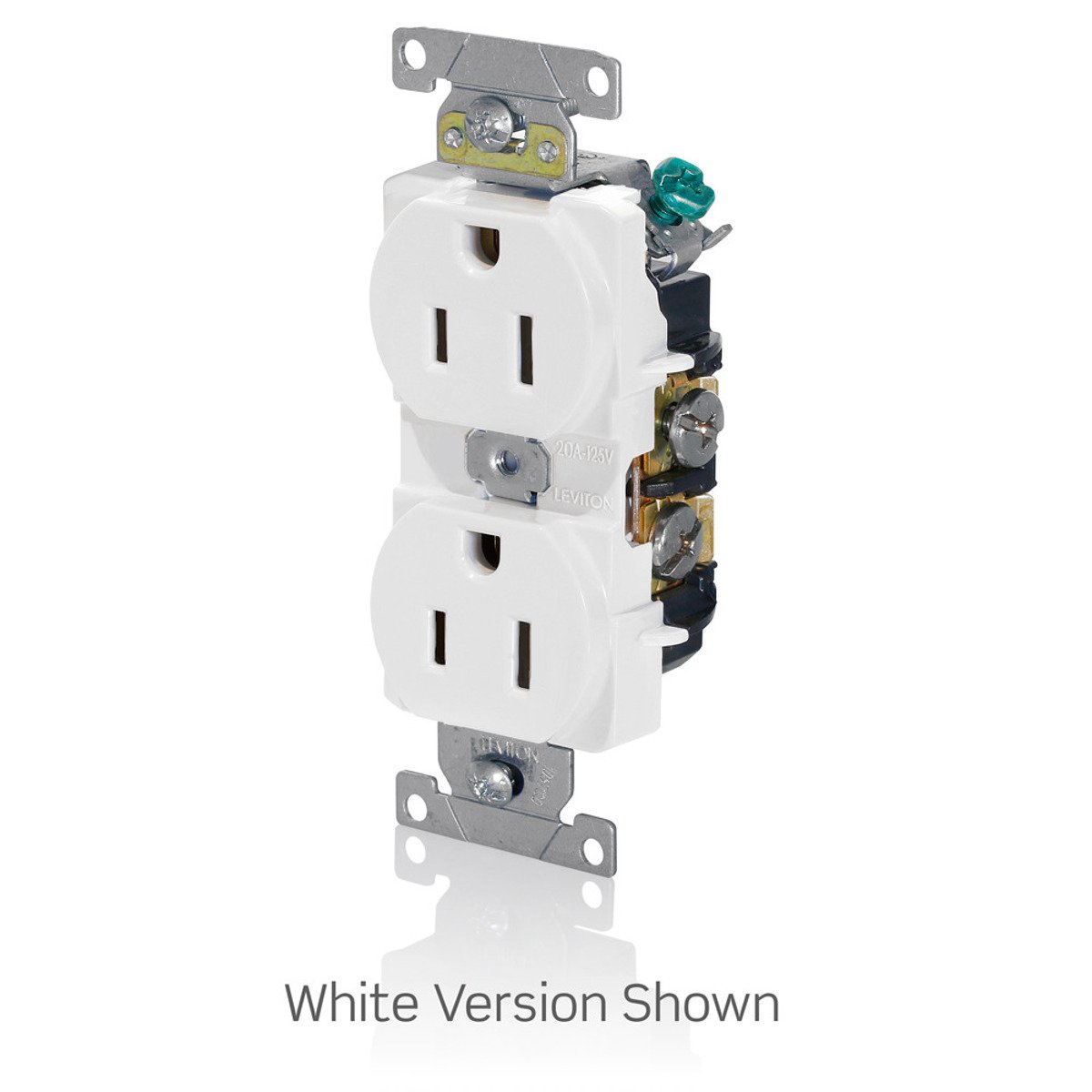

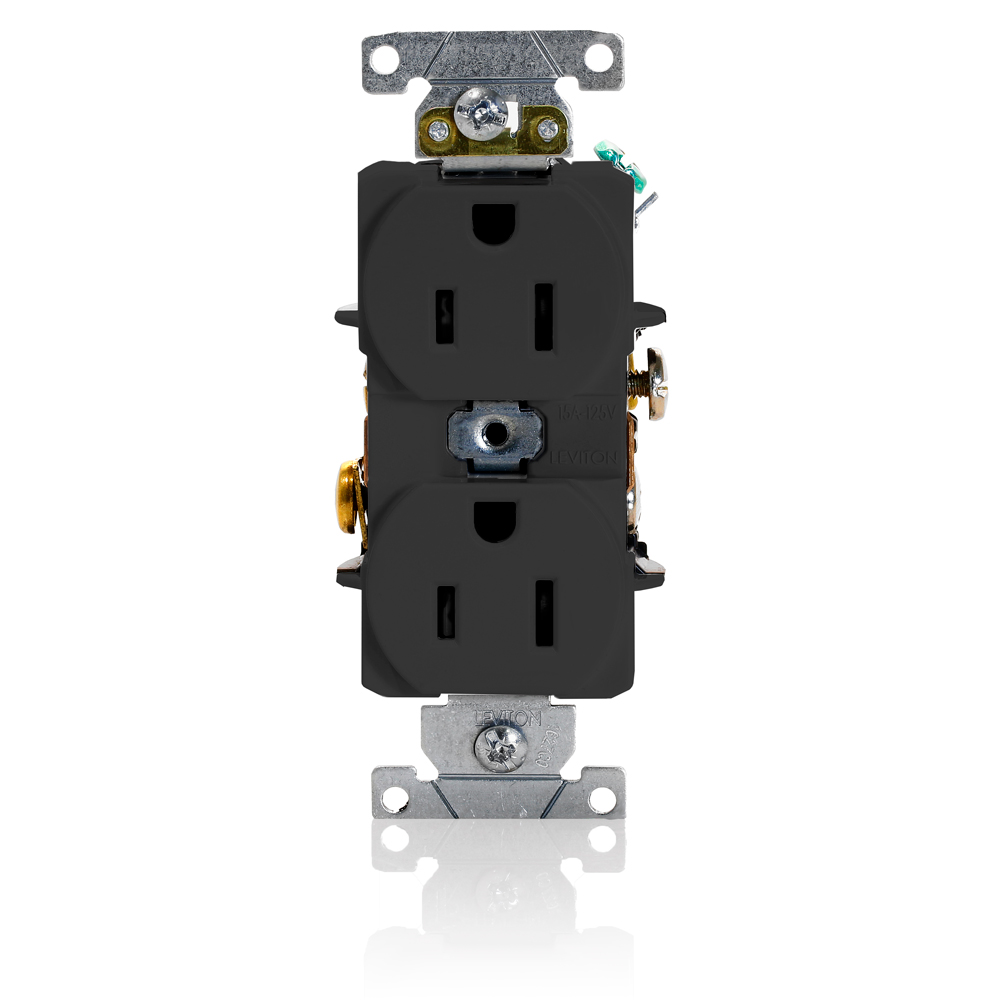

Leviton 5252-E Straight Blade Duplex Receptacle 15 Amp 125 Volt NEMA 5-15R 2 Pole 3 Wire

Product Description

The Leviton 5252-E is a straight blade duplex receptacle designed for industrial use. It supports 15 amperes and operates at 125 volts. This robust product is suitable for commercial applications and features a thermoplastic body that ensures durability.

• 15 Amp capacity with a 125 Volt rating
• Compatible with NEMA 5-15R configuration
• Self-grounding design for added safety

Product Highlights

The receptacle is ideal for heavy-duty applications in commercial settings. It includes back and side wiring options, simplifying installation and enhancing versatility.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer: Leviton Mfg Co

Technical Specifications

• MPN: 5252-E
• Color: Black
• Amperage: 15 Amp
• Voltage: 125 Volt
• NEMA Rating: 5-15R
• Material: Thermoplastic
• Grade: Commercial
• Temperature Rating: -40 to 60 degrees C
• Dimensions: 46 H x 1.55 W x 1.12 D inches
• Number of Poles: 2
• Number of Wires: 3
• Applications: Commercial
• Country of Origin: Mexico
• Warranty Length: 10 years
• Standard: ANSI C-73, UL Fed Spec WC-596
