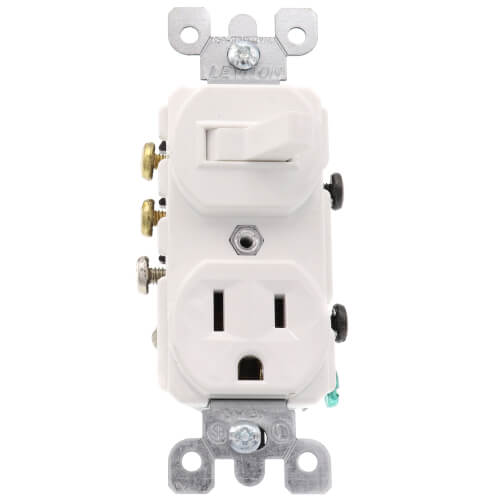

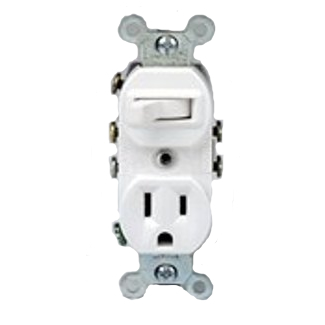

Leviton 5245-W 120 Volt 15 Amp NEMA 5-15R 3-Way White Thermoplastic Grounding Duplex AC Combination Switch

Product Description

The Leviton 5245-W is a 3-way duplex combination switch designed for use in commercial applications. It operates at 15 amps and 120 volts with a NEMA 5-15R configuration. This product combines a toggle switch and a receptacle, allowing for control of devices from multiple locations.

• Durable thermoplastic body for long-lasting use.
• Commercial grade components ensure reliability.
• Supports side wiring for simple installation.

Product Highlights

This combination switch offers a toggle actuator and is designed for wall plate mounting. It meets CSA and UL standards, ensuring safety and compliance in various installations.

Product Information

Standard Information

• Catalog Number: 5245-W
• Brand: Leviton

Technical Specifications

• Voltage Rating: 120/277 VAC (Switch); 125 V (Receptacle)
• Amperage Rating: 15 Amp
• Dimensions: 4.20 H x 1.62 W x 16 D inches
• Number of Poles: 3
• Material: Thermoplastic
• Environmental Conditions: Rated UL 94 V-2 for flammability
• Operating Temperature: -40 to 120 degrees C
• Connection Type: Side Wired
