Product Description

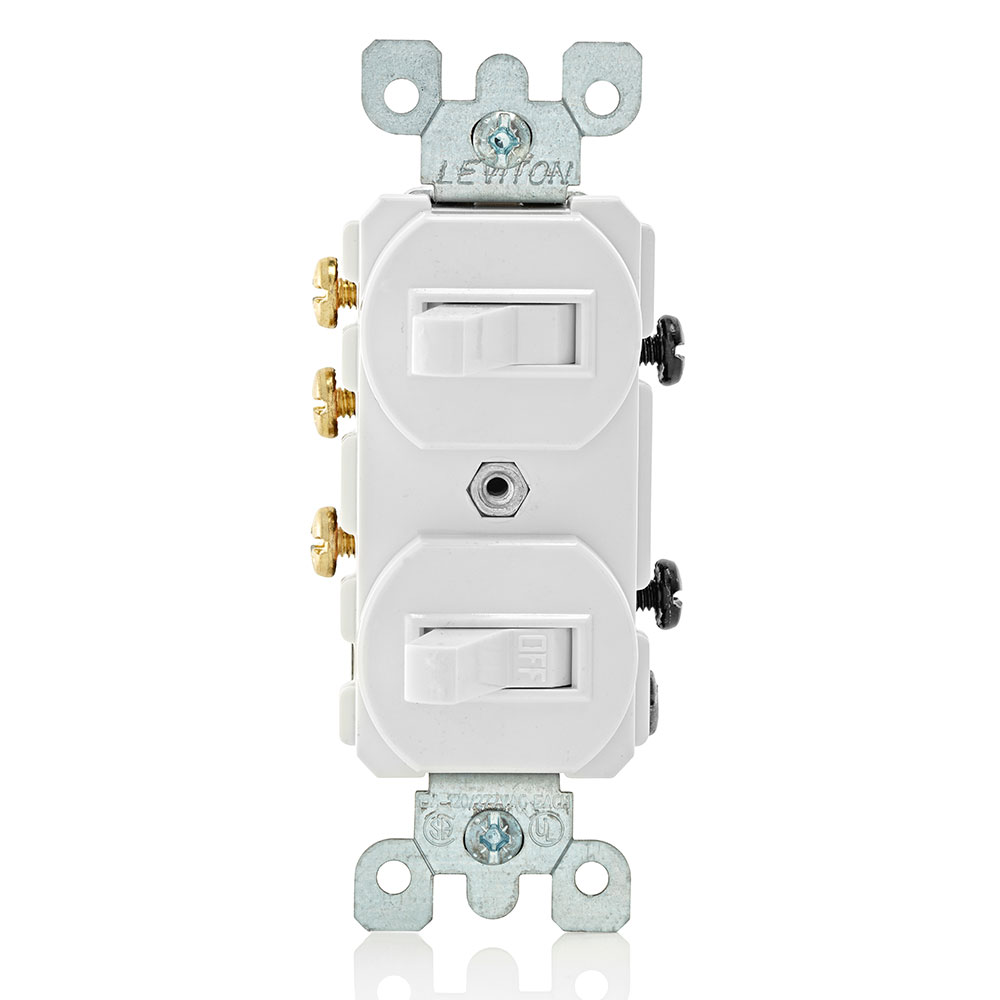

Leviton 5241-WS is a combination switch for 3-way application that operates at 15 amperes and 125 volts. It features a duplex style design and is suitable for commercial applications. This switch can handle up to 1800 watts and is built with durable thermoplastic and steel materials. The design includes a NEMA 5-15R enclosure, ideal for surface mounting. It can function in temperatures ranging from negative forty to positive one hundred twenty degrees Celsius.
- 15 A at 120/277 VAC contact rating
- Environmental conditions: -40 to 120 degrees Celsius operating temperature
- Standard wallbox compatible
Product Highlights
This combination device consolidates two switches into one gang space, enhancing efficiency and saving wiring space. It accommodates various configurations such as a switch and receptacle or multiple switches.
Product Information
Standard Information
-
Manufacturer: Leviton
-
Product Type: 3-Way Duplex Specification Grade
Technical Specifications
-
Contact Rating: 15 A at 120/277 VAC
-
Number of Poles: 1
-
Size: 4.2 inches H x 1.62 inches W x 16 inches D
-
Electrical Ratings: 15 A, 125 VAC, 1800 W
-
Mounting Type: Surface
-
Material: Thermoplastic/Steel
-
Special Features: Grounding, ac quiet switches with silver-cadmium oxide contacts
