Product Description

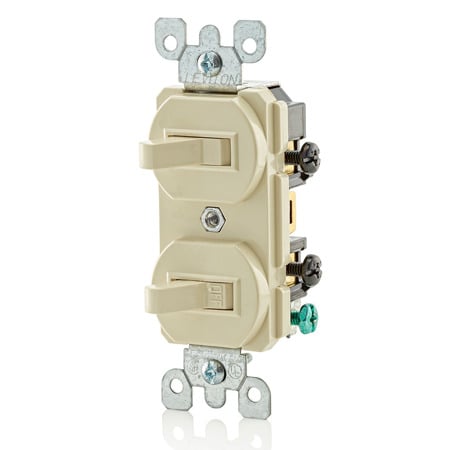

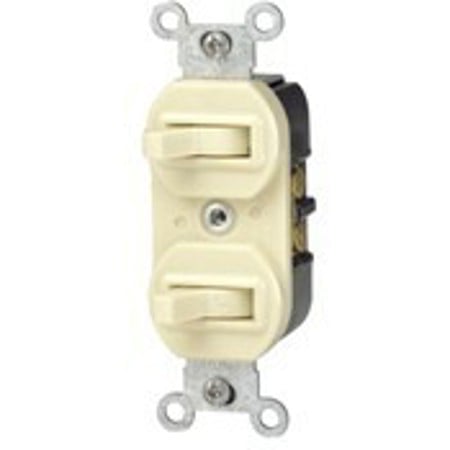

Leviton 5241-I is a single-pole combination stacked toggle switch. It is designed to support both 15 amp and 20 amp applications at 120 or 277 volts. This switch is non-grounding and is ideal for both residential and commercial settings.
- Supports 20 amps at 125 volts, 15 amps at 120/277 volts
- Uses thermoplastic and steel materials for durability
- Fits standard wallboxes with side wiring connections
Product Highlights
Leviton combination switches allow you to fill a one-gang space with two switches or a combination of switches and receptacles. Enhanced efficiency and space saving are primary design goals.
Product Information
Standard Information
-
Manufacturer: Leviton
-
MPN: 5241-I
Technical Specifications
-
Size: 4.2 inches H x 1.62 inches W x 16 inches D
-
Type: 3-Way Commercial Grade Duplex Non-Grounding
-
Color: Ivory
-
Material: Thermoplastic/Steel
-
Mounting: Surface
-
Enclosure: NEMA 5-15R
-
Contact Rating: 15 A at 120/277 VAC
-
Number of Poles: 1
-
Operating Cycles: 100 Cycles
-
Environmental Conditions: -40 to 120 degrees C Operating Temperature
