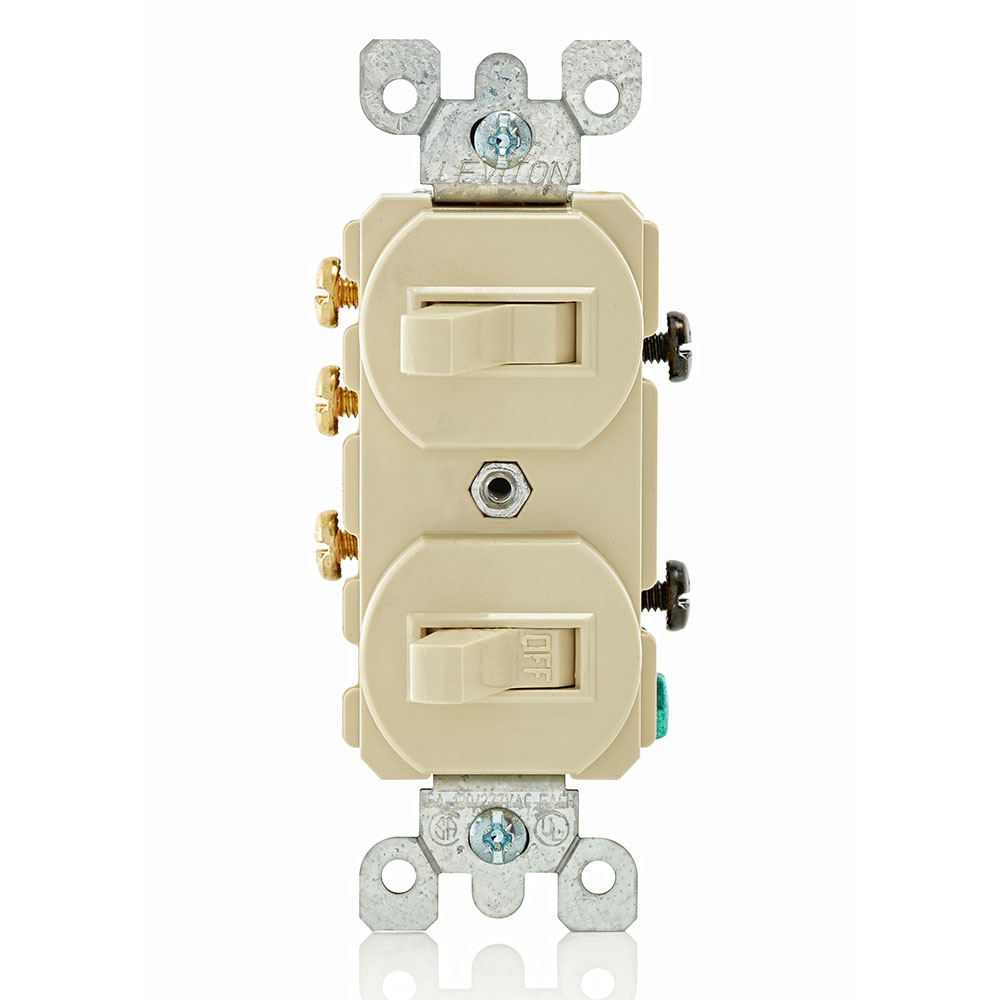

Leviton 5241-I 15A 120/277V Combo Switch Ivory

Product Description

The LEVITON 5241-I is a duplex-style single-pole and 3-way AC combination switch rated for 15 amps at 120/277 volts. It combines two switching functions in a single device, allowing independent control of two separate circuits or enabling 3-way switching alongside single-pole control in one gang space. The ivory finish and specification-grade construction make it appropriate for both residential and commercial installations. Side-wired terminals accommodate standard branch-circuit conductors, and the non-grounding design suits older wiring systems where a ground conductor is not present in the box.

This combination switch is suited for commercial office spaces, multi-family residential buildings, and light industrial environments where panel space and gang box space are at a premium. The 120/277-volt dual voltage rating makes it compatible with both standard residential 120-volt circuits and commercial 277-volt lighting branch circuits, which is a common requirement in fluorescent and LED lighting systems found in commercial tenant spaces. Licensed electricians typically install this device during rough-in, retrofit, or tenant-improvement work.

Key Features

• Dual-function design combines single-pole and 3-way switching in one device
• Rated 15 amps at 120/277 volts for residential and commercial lighting circuits
• Specification-grade construction for long-term durability in high-use environments
• Side-wired terminals for standard branch-circuit wiring
• Non-grounding configuration compatible with older wiring installations without a ground conductor
• Ivory color finish for standard decor matching

Compatibility

Designed as an OEM-style specification-grade replacement or new-installation combination switch for single-pole and 3-way AC switching applications on 15-amp, 120/277-volt lighting branch circuits in residential and commercial settings.

Installation Notes

Installation must be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the branch circuit at the panel and verify the absence of voltage with a meter before opening the device box or handling wiring. Side-wired terminals should be secured with an appropriate screwdriver to the terminal manufacturer torque guidance printed on the device body. Non-grounding devices must only be installed in wiring systems where the absence of a grounding conductor is permitted by the applicable code edition.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Configuration: Single-Pole and 3-Way combination
• Style: Duplex
• Wiring Method: Side wired
• Grounding: Non-grounding
• Grade: Residential/Commercial Specification Grade
• Color: Ivory
• UPC: 078477229200

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5241-I
