Product Description

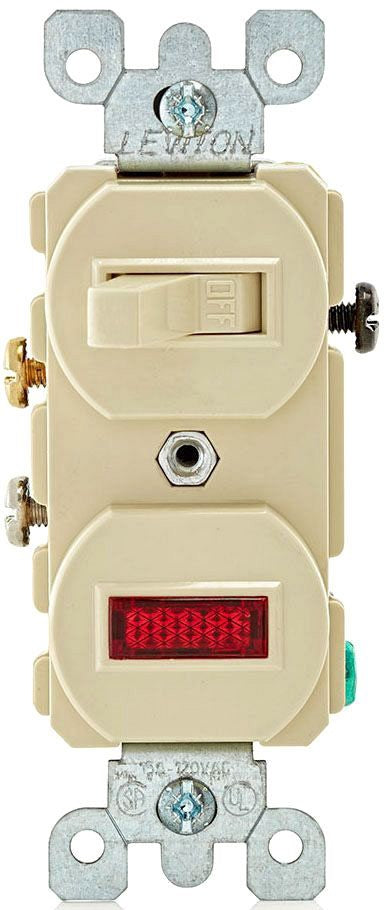

The Leviton 5226-I is a duplex grounding AC combination switch designed for use in both residential and commercial settings. It operates at 120/125 VAC with a current rating of 15 Amps. The switch features a neon pilot lamp to indicate power status and operates on a toggle action mechanism. Made of durable thermoplastic material, it is suitable for surface mounting with a side wire terminal.
- AC quiet switches feature silver cadmium oxide contacts.
- Compatible with standard wallboxes.
- Includes a grounding screw for added safety.
Product Highlights
This Leviton combination switch is built for reliability and ease of use. It can accommodate multiple applications, making it a versatile choice for various electrical installations.
Product Information
Standard Information
-
Brand: Leviton
-
MPN: 5226-I
Technical Specifications
-
Voltage Rating: 120/125 VAC
-
Amperage Rating: 15 A
-
Number of Poles: 1
-
Temperature Rating: -40 to 120 degrees C
-
Material: Thermoplastic
-
Dimensions: 4.2 in H x 1.62 in W x 16 in D
-
Mounting Type: Surface
-
Connection Type: Side Wire
