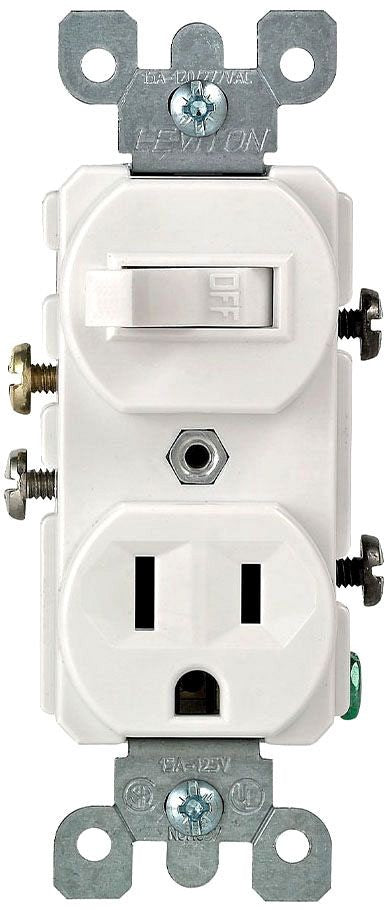

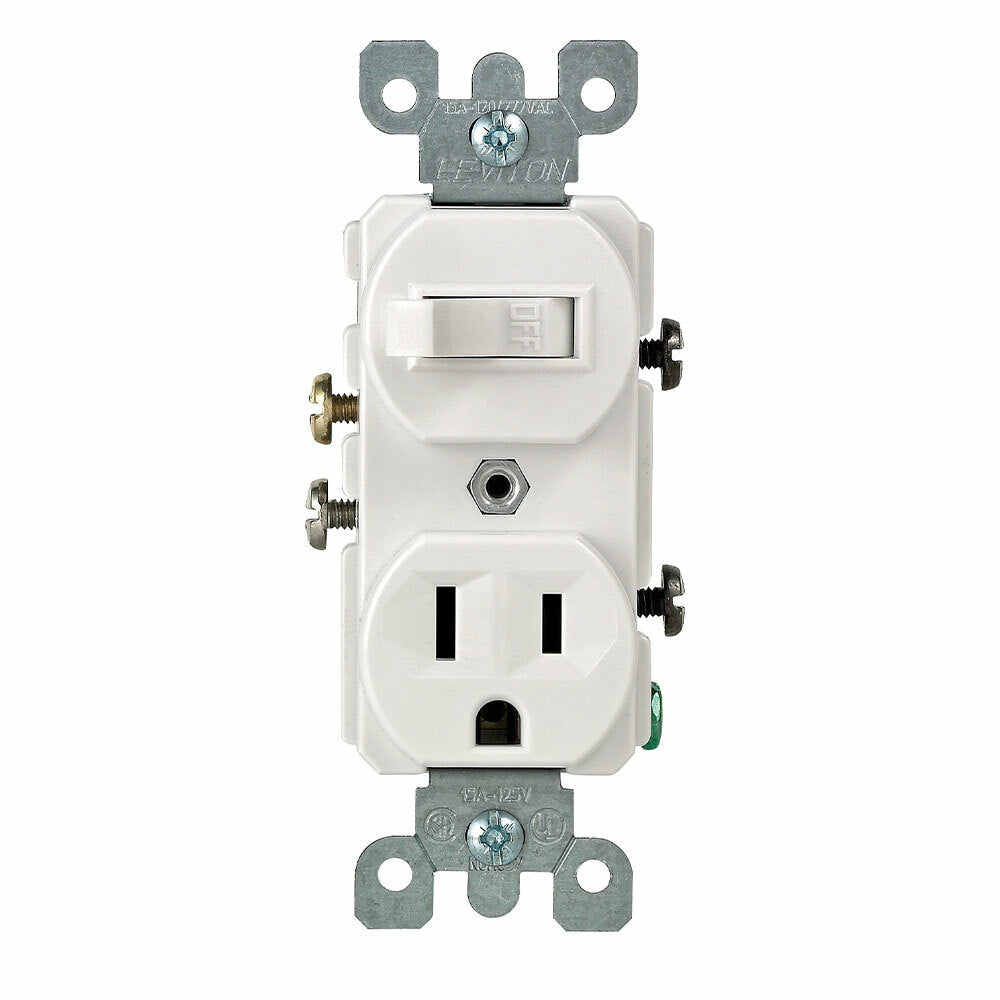

Leviton 5225-W Duplex Combination Switch and Receptacle, 15 A, 120/277 VAC, 1/2 hp at 120 VAC, 2 hp at 240/277 VAC

Product Description

The Leviton 5225-W is a combination switch and receptacle rated for fifteen amps at one hundred twenty volts. This device combines a toggle switch with a duplex receptacle, suitable for various electrical applications. It supports a maximum load of one half horsepower at one hundred twenty volts and two horsepower at two hundred forty or two hundred seventy-seven volts. The installation of this device is straightforward, fitting into standard wallboxes and requiring side wiring with terminal screws. Its design complies with commercial standards, making it ideal for use in various settings.

• Combination toggle switch and receptacle in one unit.
• Supports 15 amps at 120/277 VAC and 1/2 hp at 120 VAC.
• Constructed from thermoplastic material for durability.

Product Highlights

This product is designed for commercial use with a compact form factor that fits standard wall spaces, offering both switch and outlet functionality in one device.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5225-W

Technical Specifications

• Type: Duplex
• Color: White
• Material: Thermoplastic
• Mounting: Surface/Wall Plate
• Electrical Ratings: 15 A, 120/277 VAC
• Dimensions: 4.2 in H x 1.62 in W x 16 in D
• Grounding Style: Grounded
• Number of Poles: 1
