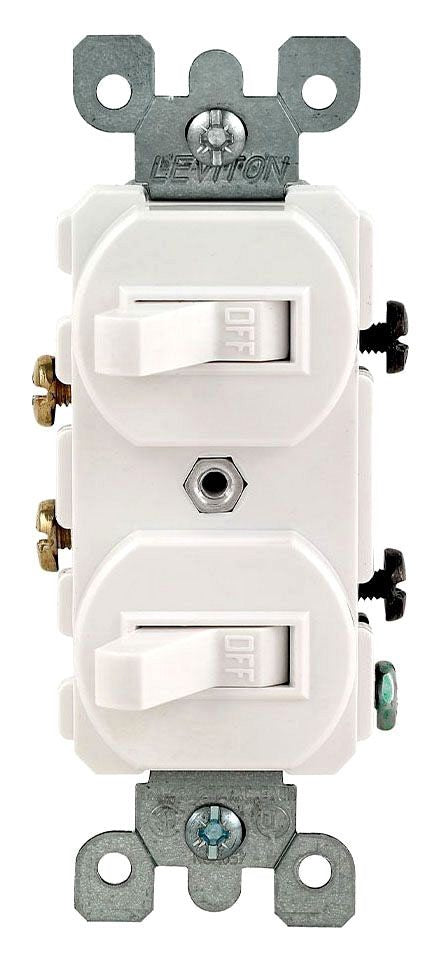

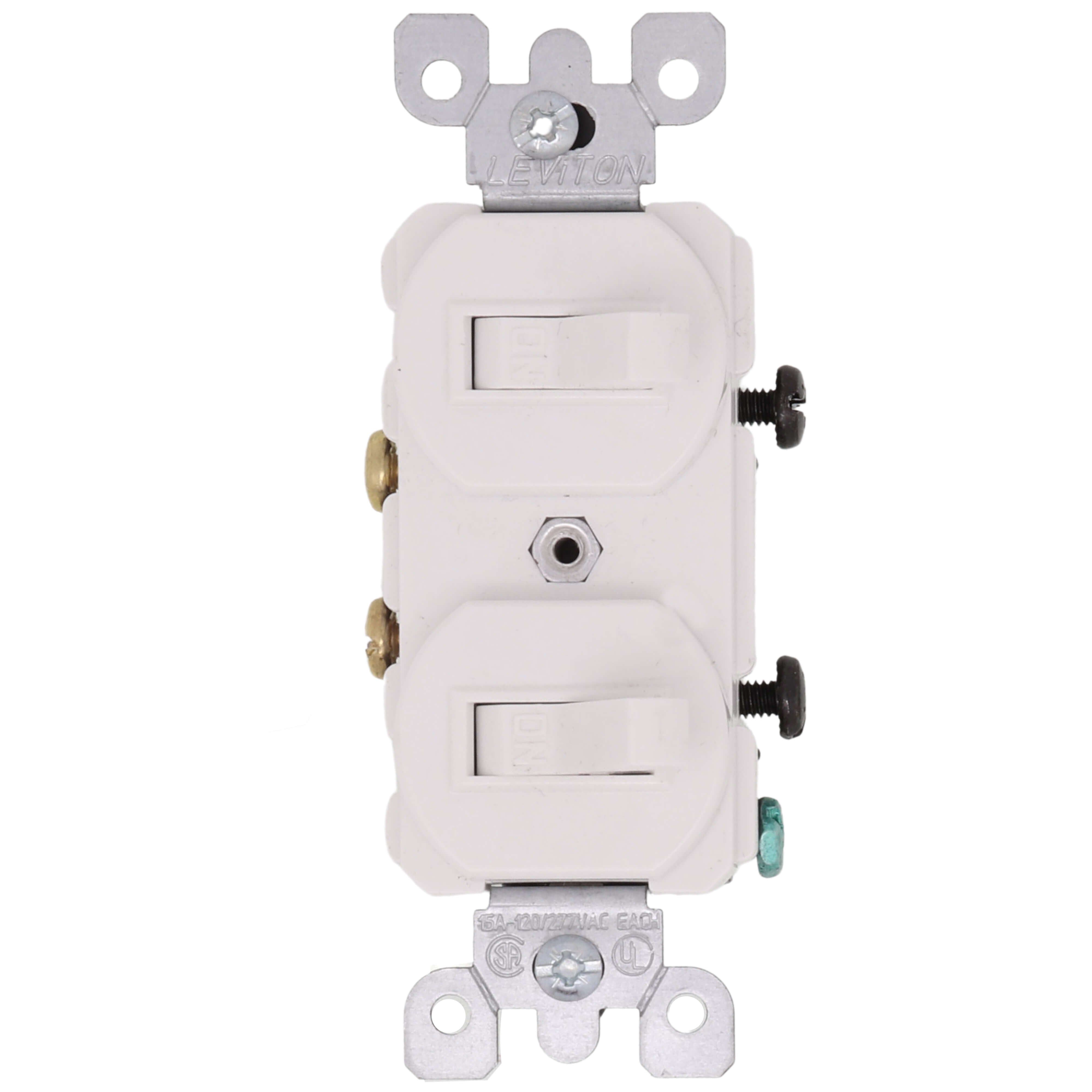

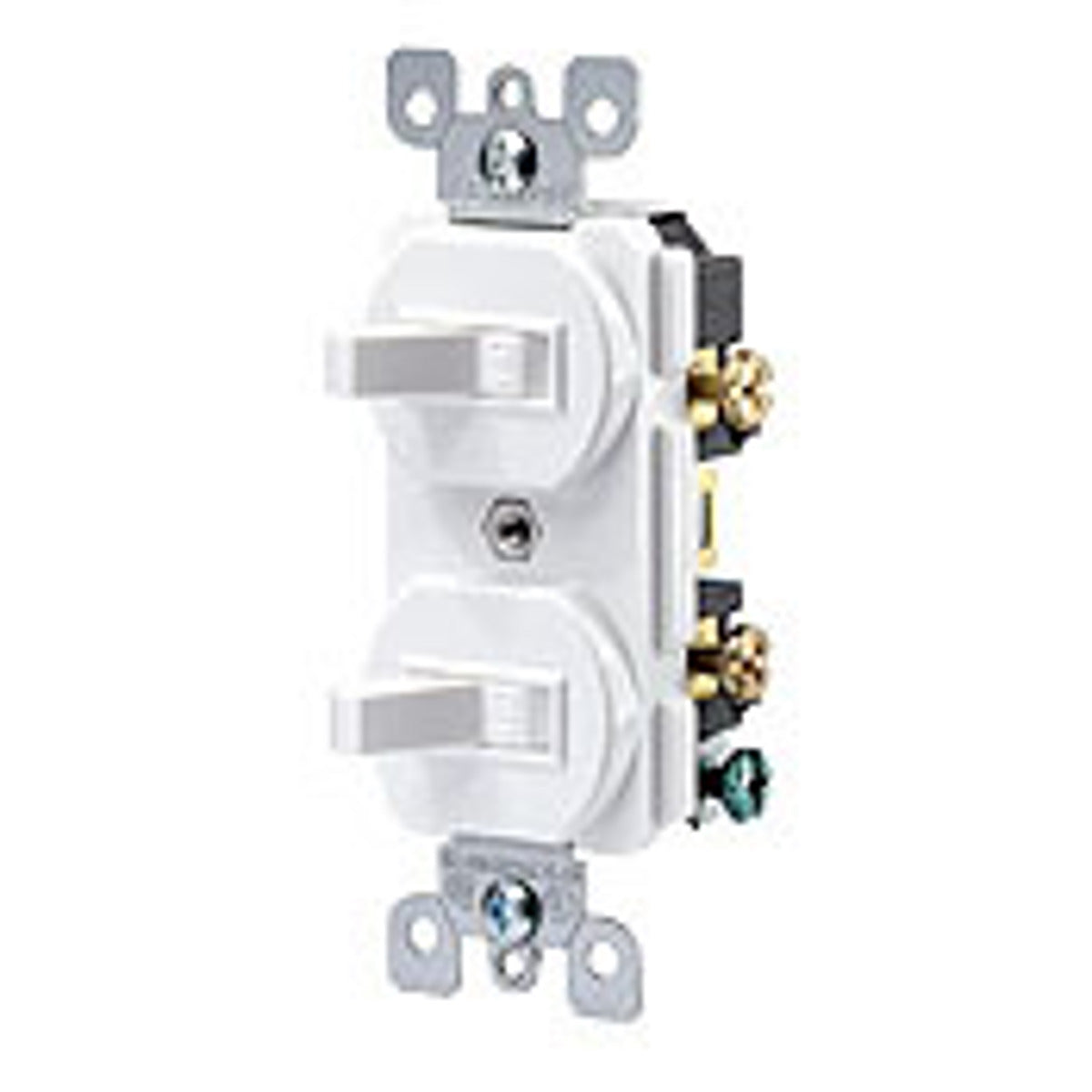

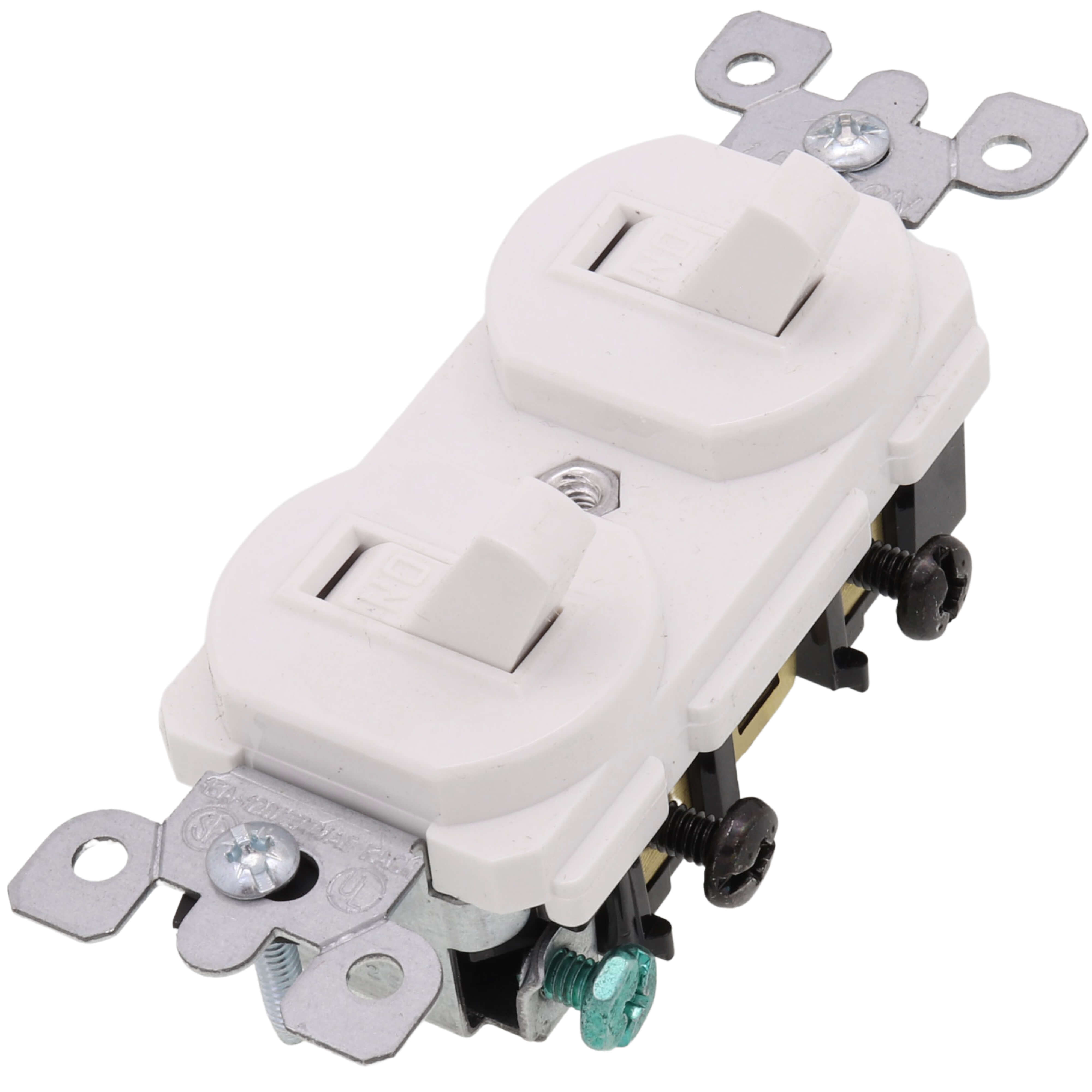

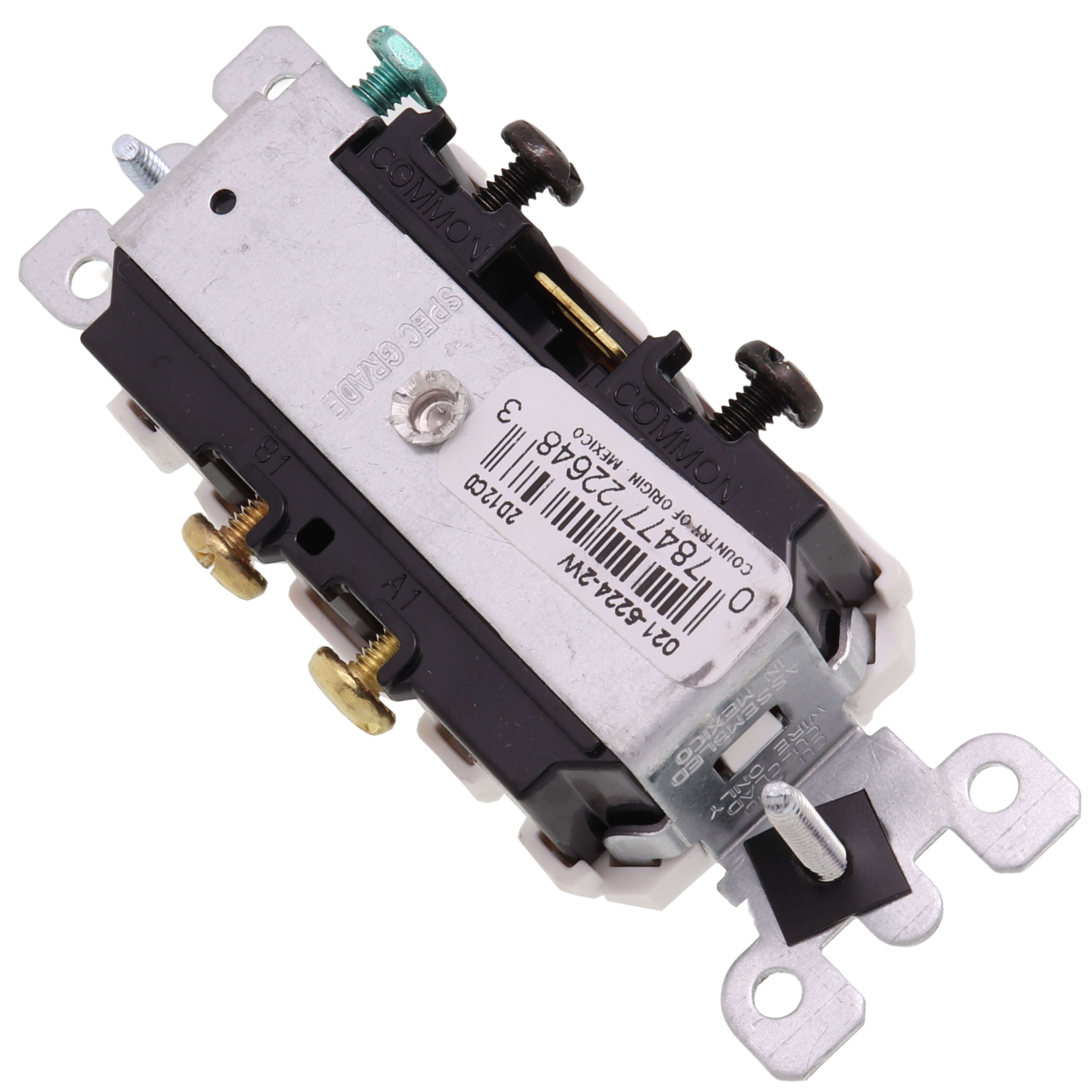

Leviton 5224-2W 15 Amp, 120/277 Volt, Duplex Style Single-Pole/Single-Pole AC Combination Switch, Grounding

Product Description

The Leviton 5224-2W is a 15 Amp, 120/277 Volt, Duplex Style Single-Pole/Single-Pole AC Combination Switch with grounding. Suitable for commercial, residential and industrial buildings. Leviton's combination devices help you to fill a one-gang space with a switch and receptacle, two switches, or even a switch and GFCI.

• 15 Amp, 120/277 Volt
• Duplex Style Single-Pole/Single-Pole AC Combination Switch
• Grounding screw

Product Highlights

This combination switch is perfect for commercial use. It has a compact and functional design and is made of thermoplastic for durability.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5224-2W
• Country of Origin: Mexico

Technical Specifications

• Color: White
• Voltage: 120/277 Volt AC
• Terminal: Screw,screws
• Horsepower: 1 hp
• Unit Count: 1.0 Count
• Circuit Type: Single Pole
• Mounting Type: Wall Mount
• Connector Type: Screw
• Current Rating: 15 Amps
• Operation Mode: ON-OFF
• Amperage Capacity: 12 Amps
• Operating Voltage: 120 Volts
• Batteries Included?: No
• Batteries Required?: No
• Application: Commercial
• Approval: UL 20, CSA C22.2, NOM 057
• Material: Thermoplastic
• Product UPC: 07847722648
• Switch 1 Type: 120/277 VAC 15 Ampere 1-Pole with Grounding Toggle
• Switch 2 Type: 120/277 VAC 15 Ampere 1-Pole with Grounding Toggle
• Type: Duplex Style Combination Switch
• Wall Plate Included: No
• Wiring: Side
• Applicable Standard: ANSI
• Actuator Material: Thermoplastic
• Strap Material: Steel
• Power Rating: 1/2 HP at 120 V
• Temperature Rating: -40 to 65 Deg C
• Amperage: 15 Amp
• Switch Type: Duplex Style Single-Pole / Single-Pole AC Combination
• Grounding: Grounding
• Grade: Commercial/Traditional
• Construction: Thermoplastic
• Configuration: NEMA 5-15R
• Dielectric Strength: Withstands 1500-Volts for 1 min
• Wire Size: 14 - 12-AWG
• Power Rating at 120V: 1/2 hp
• Power Rating at 240-277V: 2 hp
• Contact Material: Double-wire silver cadmium oxide
• Country of Origin: Mexico
• RoHS Compliant: False
• Pole: 1
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Side
• Torque Range: 14 18 in.-lbs
• Flammability: Rated V-2 per UL 94
• Terminal Accom.: 14-12 AWG
• Temperature Rise: Maximum 30 degrees C rise
• Dielectric Voltage: Withstands 1500V for 1 minute
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Operating Temperature: -40 C to 65 C
• Voltage Rating: 120-277V
• Number Of Poles: 1
• Special Features: Ac Quiet Switches have Silver-Cadmium Oxide Contacts and Receptacles have Double -wire Contacts for Maximum Conductivity, Terminal Screw Accept Up to No 12 AWG Copper or Copper-Clad Wire, Fits Standard Wallboxes, Break-Off Tabs on Devices with Switches Permit Conversion to Separate Feeds, Limited Two-Year Warranty, Grounding, Made in Mexico
• Environmental Conditions: Dry Location
• Electrical Ratings: 15 A, 125 VAC, 1800 W
• Enclosure: NEMA 5-15R
• Operating Cycles: 100
• Operating Cycles UOM: Cycles
• UNSPSC Code: 39120000
• Series: 5200 Series
• Actuator Type: Toggle
• Operation: on-off
• Contact Form: SPST
• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• NEMA: WD-1 & WD-6
• UL Standard: UL 20
• Product Type: 2-Switch Combo
• CSA C22.2 No. 111: File #152105
• NOM: 057
• Mounting: Wallplate
• Contact Rating: 120/277 VAC;15 AMP
• Item Type: Switch With Receptacle
• Number of Positions: 2
• Upper Temperature Rating: 65 Degrees Celsius
• Control Type: Manual
• Compatible Devices: Leviton Residential Grade Receptacles, Standard Wallboxes, Other Devices with Compatible Wiring Configurations
• Smart Home Compatibility: Not Smart Home Compatible
• ANSI [Specifications]: C-73
• Amps [Specifications]: 15
• Item [Specifications]: Combination Device
• NEMA [Specifications]: WD-1 & WD-6
• Pole [Specifications]: 1
• Type [Specifications]: Toggle
• Feature [Specifications]: Single-Pole / Single-Pole
• Voltage [Specifications]: 120/277VAC
• Amperage [Specifications]: 15 A
• Grounding [Specifications]: Grounding
• HP Rating [Specifications]: 1/2HP-120V 2HP-240V-277V
• Terminal ID [Specifications]: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination [Specifications]: Side
• UL Standard [Specifications]: UL 20
• Product Type [Specifications]: 2-Switch Combo
• Torque Range [Specifications]: 14- 18 in.-lbs
• Body Material [Specifications]: Thermoplastic
• Max. Amperage [Specifications]: 12 Amp
• Strap Material [Specifications]: Steel
• Terminal Accom. [Specifications]: 14-12 AWG
• Temperature Rise [Specifications]: Maximum 30 degrees C rise
• Actuator Material [Specifications]: Thermoplastic
• Dielectric Voltage [Specifications]: Withstands 1500V for 1 minute
• NEMA Configuration [Specifications]: 5-15R
• Overload UL20 Test [Specifications]: 100 cycles of OL at 4.8 times rated current
• Wiring Combination [Specifications]: Duplex Switch
• Operating Temperature [Specifications]: -40 C to 65 C
• Description/Special Features [Specifications]: Duplex Switch
• Country of Origin (subject to change) [Specifications]: Mexico
• Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 - 277 Volt
• Item Name: AC Combination Switch
• Terminal Accommodations: 14-12 AWG
• Terminal Connection: Side Wired
• Number of Poles: (2) Single Pole
• AC Horsepower Ratings: HP Rating : 1/2HP-120V 2HP-240V-277V
• Feature: Single-Pole / Single-Pole
• ANSI: C-73
• Dimensions: H: 4.188 in
• Dimensions: W: 1.625 in
• Dimensions: D: 1.688 in
• Color/Finish: White
• UNSPSC: 39122231
• Brand Name: Leviton
• Description: LEV 5224-2W COMB-2SP 15A277V AC SWS
• Product Name: Combination Switch
• Commodity Code: 5160
• Stripped Catalog Number: 52242W
• Catalog Description (MFR): 15 Amp, 120/277 Volt, Duplex Style Single-Pole / Single-Pole AC Combination Switch, Grounding, White
• Invoice Description (MFR): WH COMBI 2SW DUP W/GRND SP 15A120/277VAC.
• Concatenated Invoice Description: WH COMBI 2SW DUP W/GRND SP 15A120/277VAC
• Safety Data Sheet (SDS) Flag: Y
• Buy American Act (BAA) Compliant: C
• American Recovery and Reinvestment Act (ARRA) Compliant: C
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• UPC: 078477226483
• GTIN: 00078477226483
• Alternative Part Number: 7365317
• IDEA Index ID: 7365317
• Country: USA
• Connection: Side Wired
• Amperage Rating: 15 A
• Actuator: Toggle
