Product Description

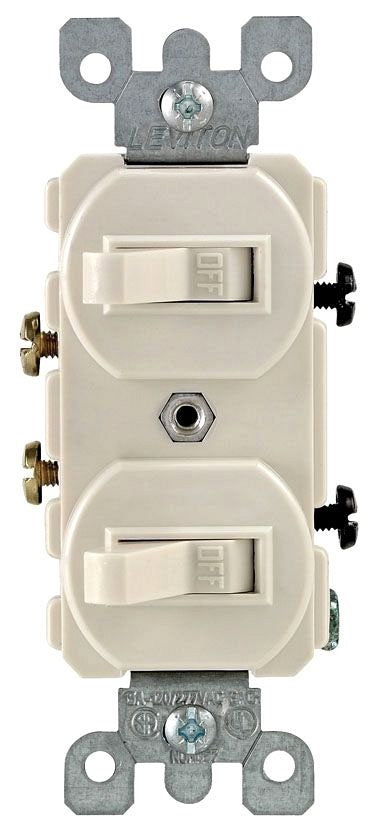

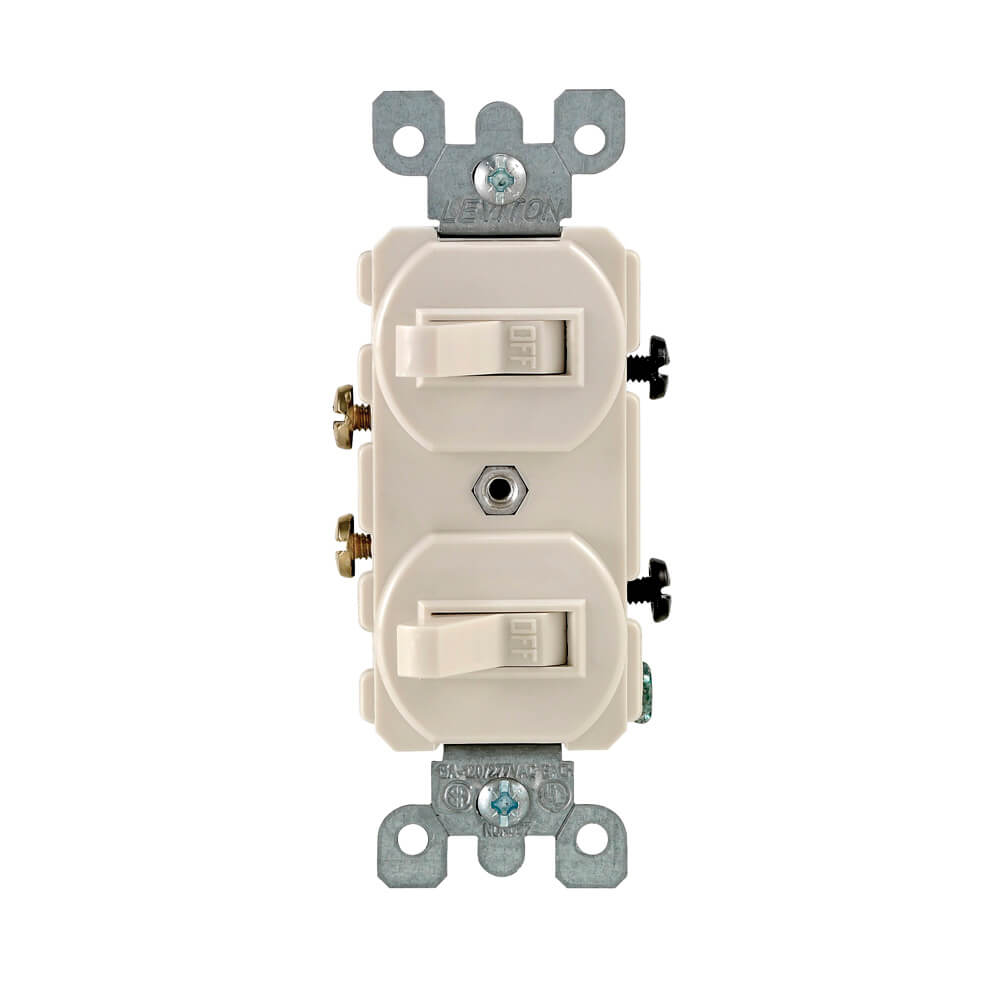

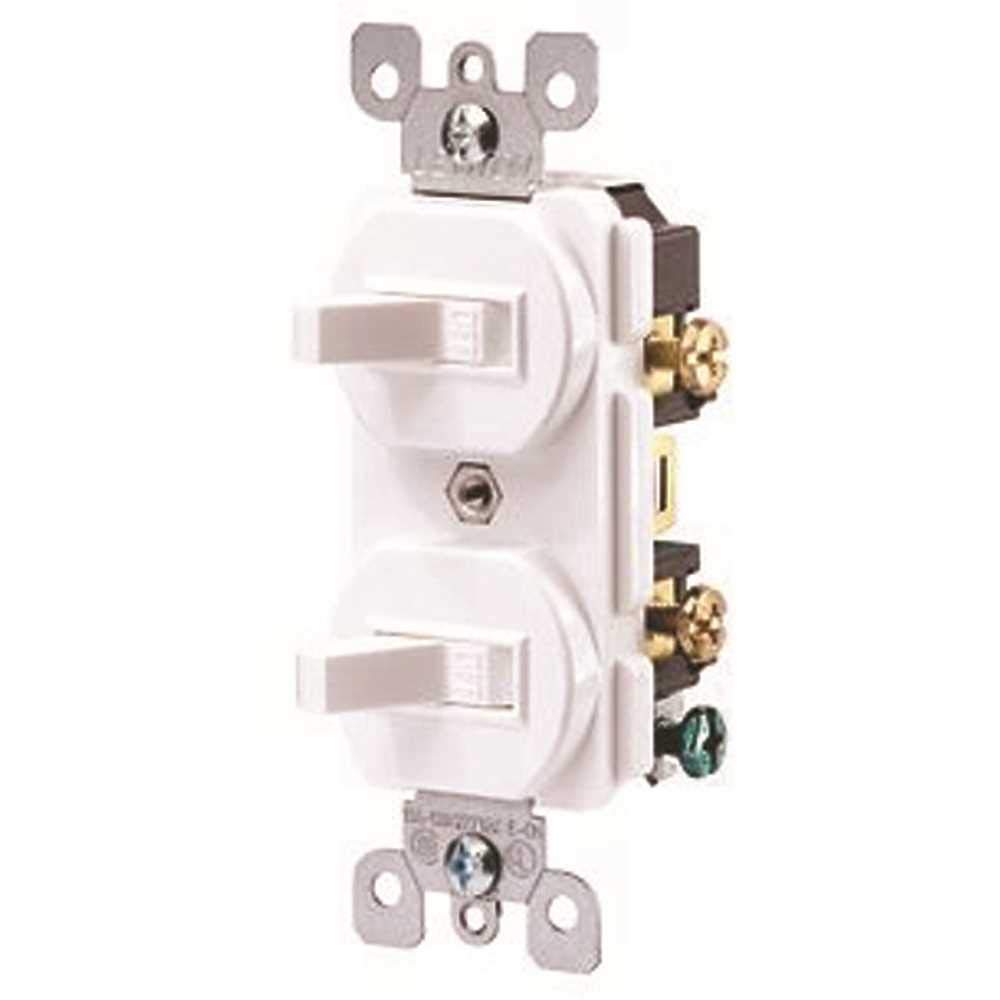

The Leviton 5224-2T is a 15 Amp, 120/277 Volt, Duplex Style Single-Pole/Single-Pole AC Combination Switch. This grounding switch is suitable for commercial applications. It features side wiring and fits standard wallboxes. The device is made with a thermoplastic body and steel strap material.
- 15 Amp
- 120/277 Volt
- Duplex Style
Product Highlights
This combination switch offers a convenient solution for controlling multiple circuits in a single location.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 5224-2T
-
Country of Origin: Mexico
Technical Specifications
-
Color: Light Almond
-
Voltage: 120/277 Volt AC
-
Material: Thermoplastic/Steel
-
Switch Type: Single-Pole / Single-Pole AC Combination
-
Switch Style: Toggle Switch
-
Mounting Type: Surface
-
Amperage: 15 Amp
-
Style: Duplex Style
-
Grounding: Grounding
-
Application: Commercial Applications
-
Approval: UL, CSA
-
Wiring: Side Wiring
-
Contact Rating: 120/277 VAC;15 AMP
-
Electrical Ratings: 20 A, 125 VAC, 1 hp
-
Number of Poles: 1
-
Series: Traditional
-
Type: Duplex Grounding
-
Actuator Type: Toggle
-
Current Rating: 15 Amps
-
Operation Mode: Toggle
-
Operating Voltage: 120 Volts
-
Specification Met: CSA
-
Voltage Rating: 120-277V
-
Amperage Rating: 15 A
-
Operating Temperature: -40
C to 65
C
-
Stripped Catalog Number: 52242T
-
Catalog Description (MFR): 15 Amp, 120/277 Volt, Duplex Style Single-Pole / Single-Pole AC Combination Switch, Grounding, Light Almond
-
Invoice Description (MFR): LA COMBI 2SW DUP W/GRND SP 15A120/277VAC.
-
HP Rating: 1/2HP-120V 2HP-240V-277V
-
Termination: Side
-
Actuator Material: Thermoplastic
-
Body Material: Thermoplastic
-
Strap Material: Steel
-
Standards and Certifications: UL/CSA
-
Poles: 1-Pole
-
Feature: Single-Pole / Single-Pole
-
Rated Voltage: 120/277V AC
-
Connection Type: Side Wired
-
Mounting: Surface
-
Color Family: Brown
-
Dielectric Strength: Withstands 1500 Volt/1 min
-
Terminal Accommodations: 14-12 AWG
-
Temperature Rating: -40 to 65 deg C
-
Standards: UL 20 Listed, CSA C22.2 No.111, 152105 Certified, NEMA WD-1 and WD-6, ANSI C-73 Standard, NOM 057 Certified
-
AC Horsepower Ratings: HP Rating : 1/2HP-120V 2HP-240V-277V
-
Dielectric Voltage: Withstands 1500V for 1 minute
-
Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
-
Switch Amperage: 15 Amp
-
Switch Voltage: 120/277V AC
-
Temperature Rise: Maximum 30 degrees C rise
-
Flammability: Rated V-2 per UL 94
-
Terminal Accom.: 14-12 AWG
-
Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
-
Torque Range: 14 18 in.-lbs
-
ANSI: C-73
-
CSA C22.2 No. 111: File #152105
-
NEMA: WD-1 & WD-6
-
NOM: 057
-
UL Standard: UL 20
-
Manufacturer Part Number: 5224-2T
-
UPC: 07847727313
-
Manufacturer Name: Leviton
-
Country Of Origin: Mexico
-
GTIN: 00078477273135
-
Maximum Load Capacity: 1/2 hp at 120 Volt, 2 hp at 240 - 277 Volt
-
Item Name: AC Combination Switch
-
Brand Name: Leviton
-
Actuator: Toggle
-
Terminal Connection: Side Wired
-
ECCN: EAR99
-
Country of Origin: MX - Mexico
-
No. of Poles: 1
