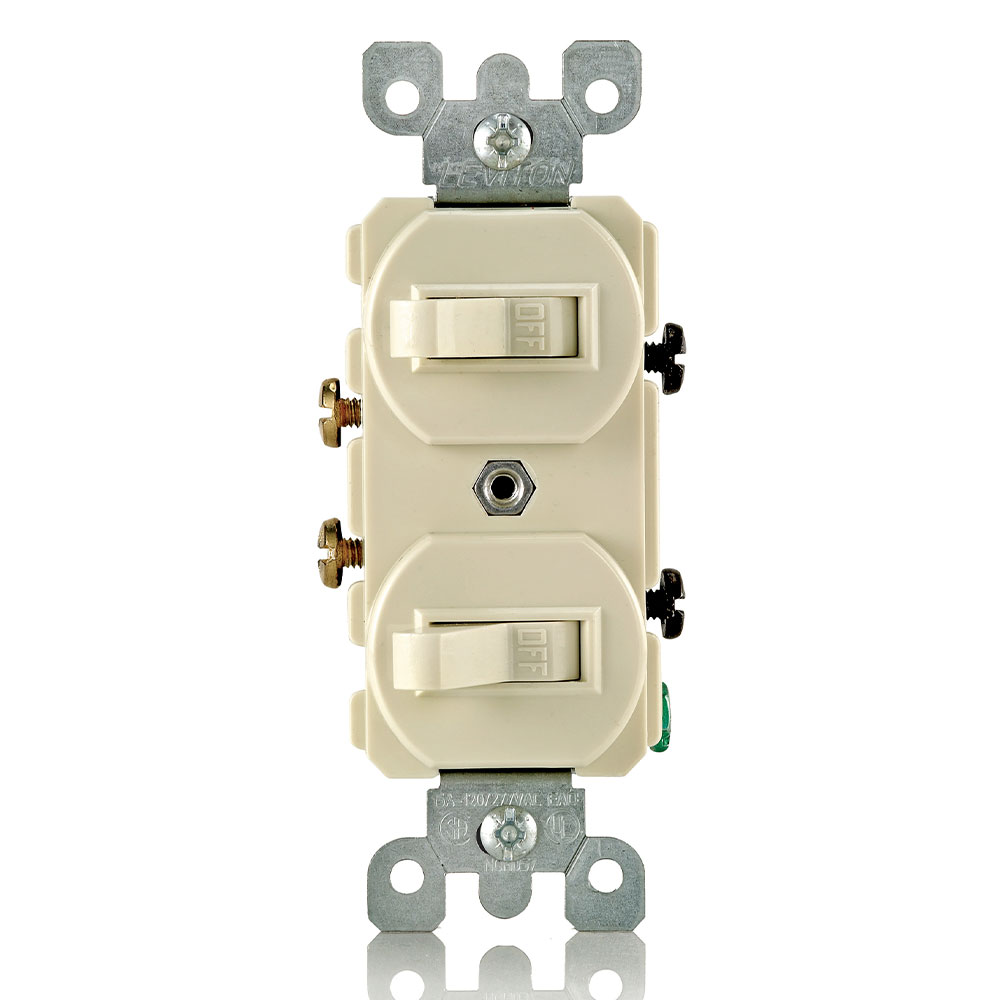

Leviton 5224-2I Duplex Combination Switch 15A 120/277V Ivory

Product Description

The LEVITON 5224-2I is a duplex-style single-pole/single-pole AC combination switch rated for 15 amps at 120/277 volts. It consolidates two independent single-pole switching functions into one standard-size device, reducing box fill and simplifying circuit control in commercial wiring applications. The commercial-grade construction and grounding configuration make it suitable for demanding environments where reliability and code compliance are required. Licensed electricians typically specify this device for office, retail, and light industrial installations where dual-switch control is needed without occupying two gangs.

This combination switch is designed for commercial-grade installations operating at 120 or 277 volts, making it compatible with both standard residential-style branch circuits and the 277-volt lighting circuits common in commercial and industrial facilities. The duplex form factor fits a single-gang box, and side-wiring terminals allow straightforward connection to branch circuit conductors. Ivory finish coordinates with standard commercial device and cover plate systems.

Key Features

• Dual single-pole switching in one single-gang device reduces box fill
• Rated 15 amps at 120/277 volts for compatibility with commercial lighting circuits
• Commercial-grade construction for durability in high-use environments
• Grounding device meets NEC grounding requirements for wiring devices
• Side-wired terminals for standard branch circuit connections
• Ivory finish for use with standard commercial wallplates

Compatibility

Designed as an OEM-style commercial wiring device for single-gang boxes in 120-volt and 277-volt branch circuit applications typical of commercial and light industrial electrical systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and applicable local codes. Always shut off the branch circuit breaker and verify the circuit is de-energized with a voltage tester before making or disturbing any wiring connections. Side-wired terminals require proper torque per the device markings and applicable NEC requirements. Do not exceed the 15-amp or 277-volt ratings of the device.

Technical Specifications

• Amperage: 15 amps
• Voltage: 120/277 volts
• Switch Type: Single-Pole / Single-Pole Combination
• Style: Duplex
• Grade: Commercial
• Wiring: Side Wired
• Grounding: Yes
• Color: Ivory
• UPC: 078477226452

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5224-2I
