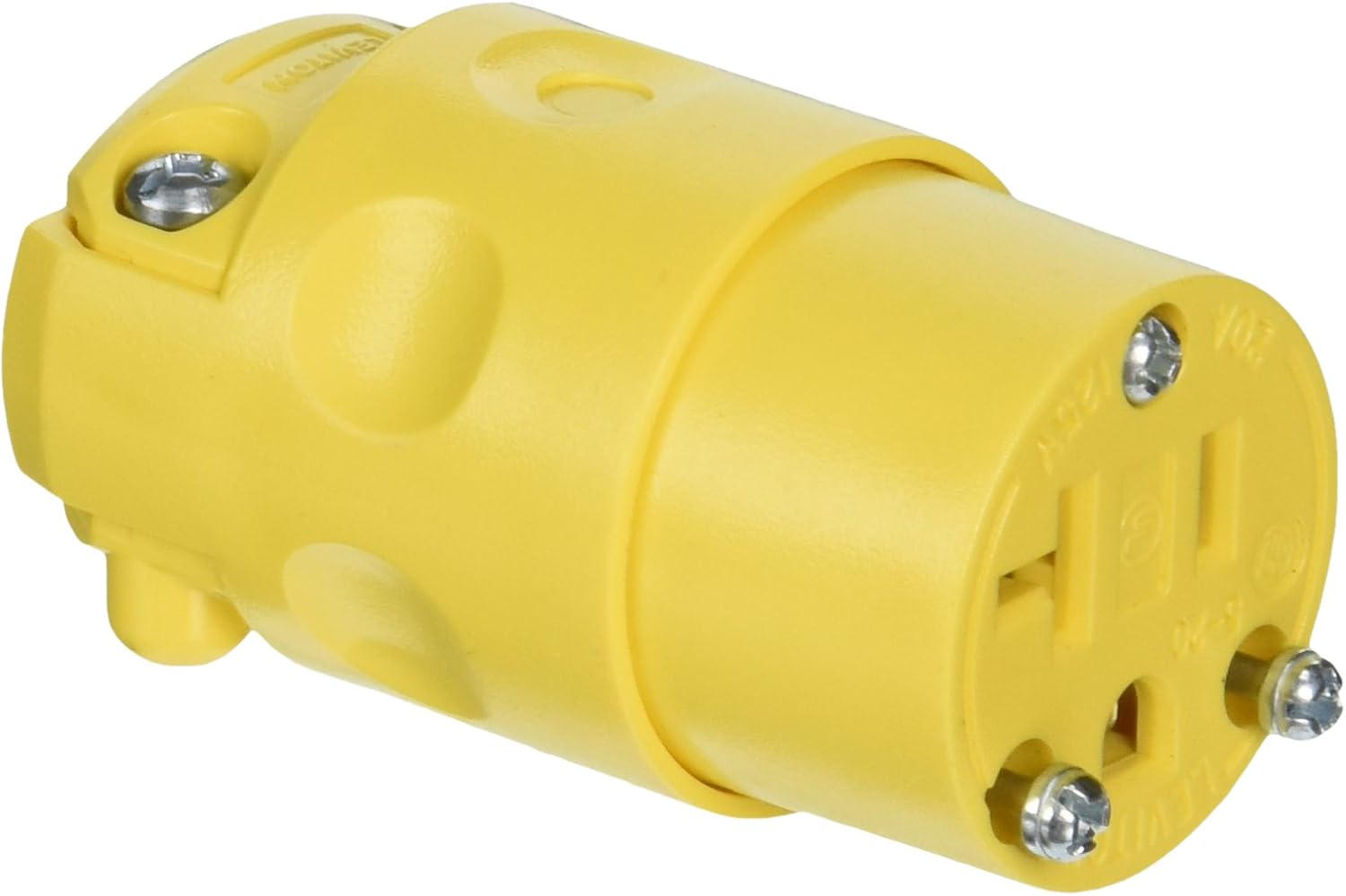

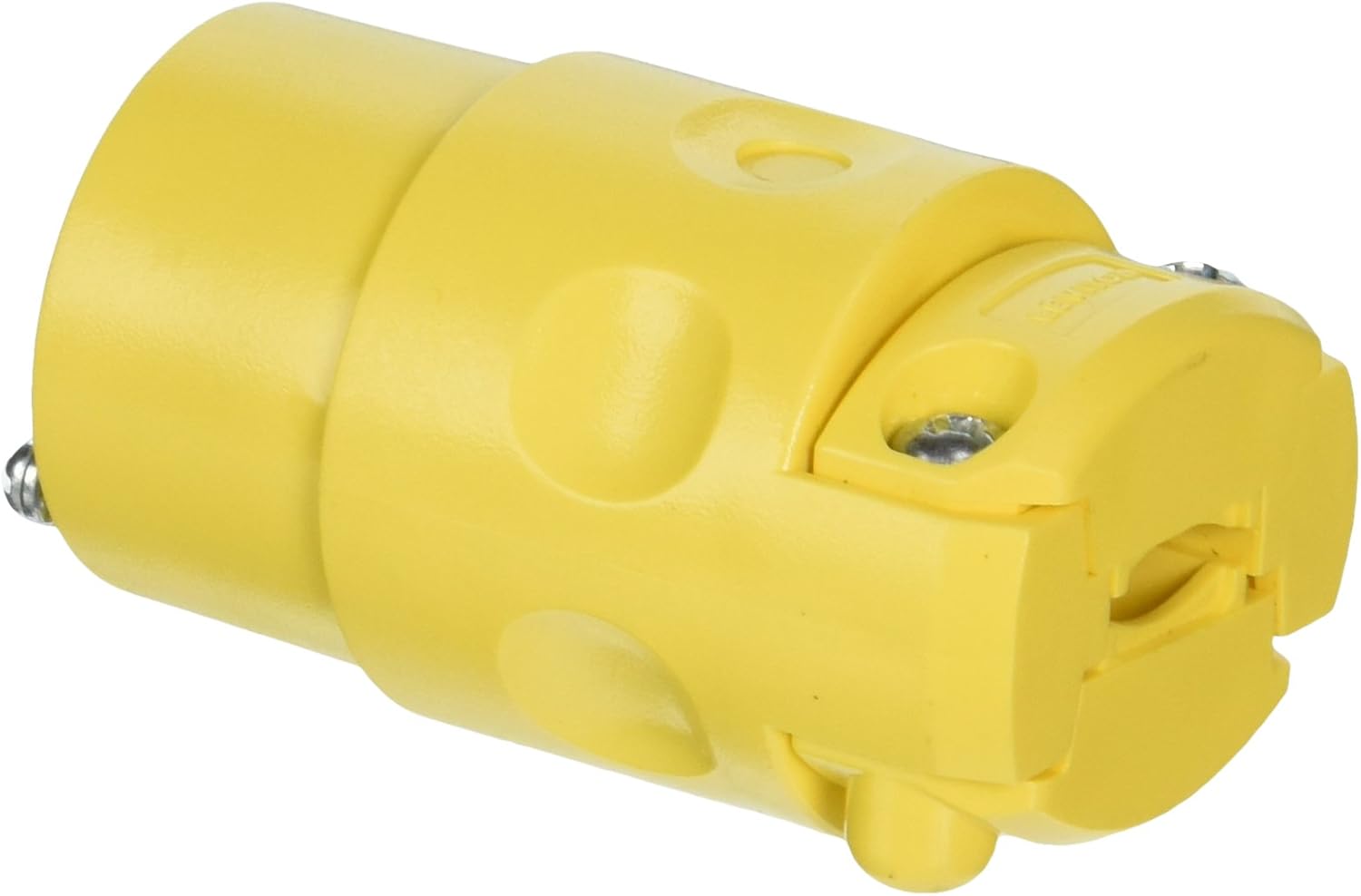

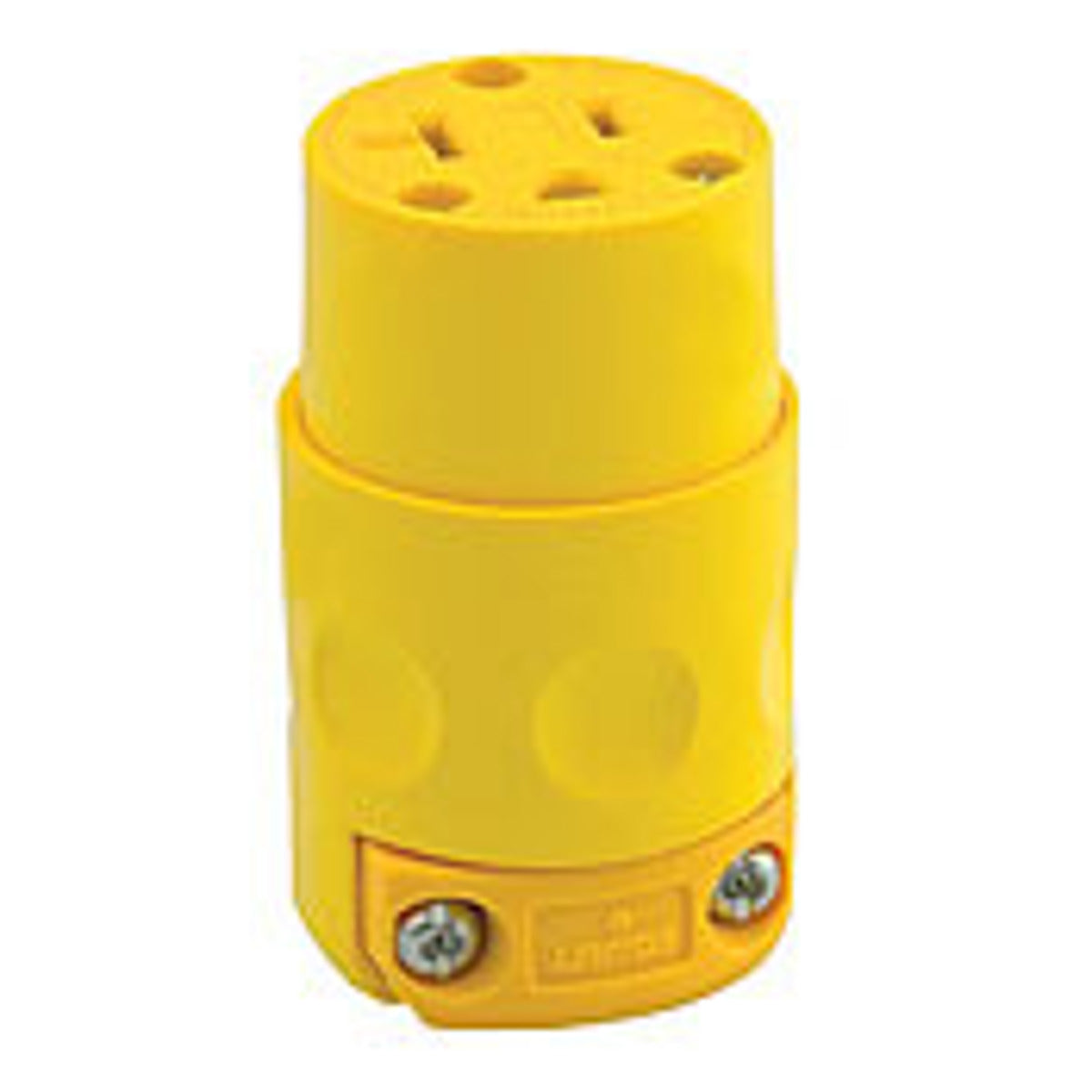

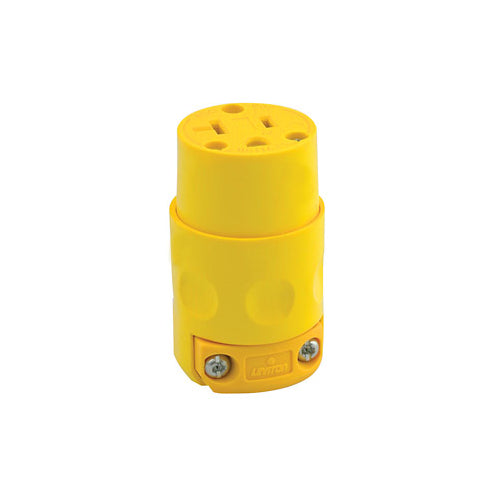

Leviton 520CV YL Conn Workshop 2PO 3WI Polar 20A 125V

Product Description

The Leviton 520CV YL Conn Workshop 2PO 3WI Polar 20A 125V is a standard outlet. This commercial-grade straight blade connector is moisture, chemical, and abuse-resistant, making it ideal for indoor and outdoor use. The deep-slotted terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

• Moisture and chemical resistant
• Ideal for indoor and outdoor use
• Deep-slotted terminal screws for maximum conductivity

Product Highlights

This straight blade connector is suitable for commercial applications and provides a secure and reliable connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 520CV
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 VAC
• Material: Polyvinyl Chloride (PVC)
• Thickness: 1 Inches
• Batteries Required?: No
• Included Components: 520CV
• NEMA: WD-6
• Size: 1.54 Dia x 2.56 H IN
• Type: Female Cord Body
• Brand: Leviton
• Length: 8.7500 in
• Amperage: 20 Amp
• Diameter: 1.54 Inch
• Standard: NEMA (WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406)UL Lis
• Grounding: Grounding
• Sub Brand: RESIDENTIAL PLUGS AND CONNECT
• Wire Size: 18-12 AWG
• Blade Type: Brass
• Dielectric: 2000 V
• Screw Type: Steel,Zinc-Plated
• Wire Count: 3
• Applications: Commercial
• Body Material: PVC
• Mounting Type: Cable
• Conductor Size: 18-12 AWG
• Connection Type: Screw Terminal
• Number of Poles: 2
• Number of Ports: 2
• Number of Wires: 3
• Contact Material: Brass
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Country of Origin: Mexico
• Flamability Class: Rated V-2 Per UL 94
• Temperature Rating: -40 to 60 Deg C
• Number of Conductors: 3
• Operating Temperature: -40 00b0C to 60 00b0C
• Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
• IGCC: 4526
• Weight: 0.18
• Mounting: Cable
• Application: Commercial
• NEMA Rating: 5-20R
• Family group: WIRING DEVICES
• Manufacturer: LEVITON
• Voltage Rating: 125
• Amperage Rating: 20 AMP
• Assembly Screws: Zinc Plated Steel
• Special Features: Grounding; Rugged PVC Body Resist Moisture and Chemicals Suited for Outdoor Cord
• WES Product code: 2734262140
• Blades/contacts Material: Brass
• Cord Diameter: 0.245 to 0.7 in
• Rated Voltage: 125V
• Volts AC: 120
• Amps: 20
• Terminal Type: Screw
• Input Voltage: 120 V
• Maximum Input Current: 20 Amp
• Recommended Environment: Indoor/Outdoor
• Features: Moisture/Chemical/Abuse Resistant Properties
• Resistance Properties: Moisture/Chemical/Abuse Resistant Properties
• Output Voltage: 125 Volt
• Poles: 2
• Wires: 3
• Grade: Commercial
• Terminal Accom.: 18-12 AWG
• UNSPSC: 39121402
• Color: Yellow
• Cord Size: 0.245 to 0.655 Inch
• Current Rating: 20 Ampere
• Ground Type: Grounding
• Wire Gauge: 18 to 12 AWG
• Configuration: 5-20R
• Constructional Feature: Moisture/Chemical Resistant
• ARRA Compliant: C
• Buy American Compliant: C
• Catalog Number: 520CV
• EU RoHS Indicator: C
• Gross Weight Per Pack: 1.8800 lb
• Gross Weight per Pack Metric: 0.08
• Gross Weight UOM Metric: kg
• Hazard Class: N
• Height: 3.8750 in
• UPC 11: 07847784193
• UPC 12: 078477841938
• Stock Status: NONSTOCK
• Item Type: Straight Blade
• Dimensions: 1.38 Inch Top Dia x 1.54 Inch Bottom Dia x 2.61 Inch Length
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM: 057
• UL498: File E13393
• Amperage compatibility: 20 A
• Voltage compatibility: 125 V

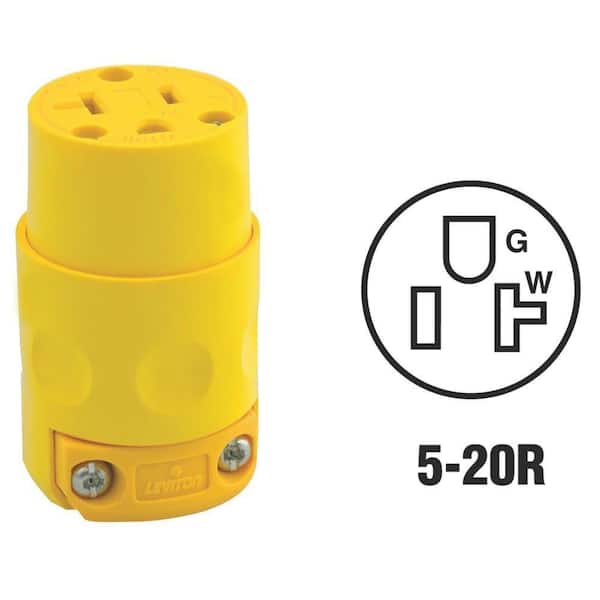

• Connector type: Straight blade connector, NEMA 5-20R
• Safety features: Grounding
• ECCN: EAR99
• No. of Poles: 2
• No. of Wires: 3
• NEMA Configuration: 5-20R
• Dielectric Voltage: Withstands 2000V per UL498
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Product ID: Ratings and NEMA I.D. permanently marked on device
