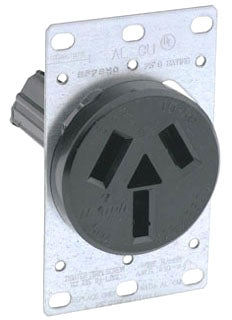

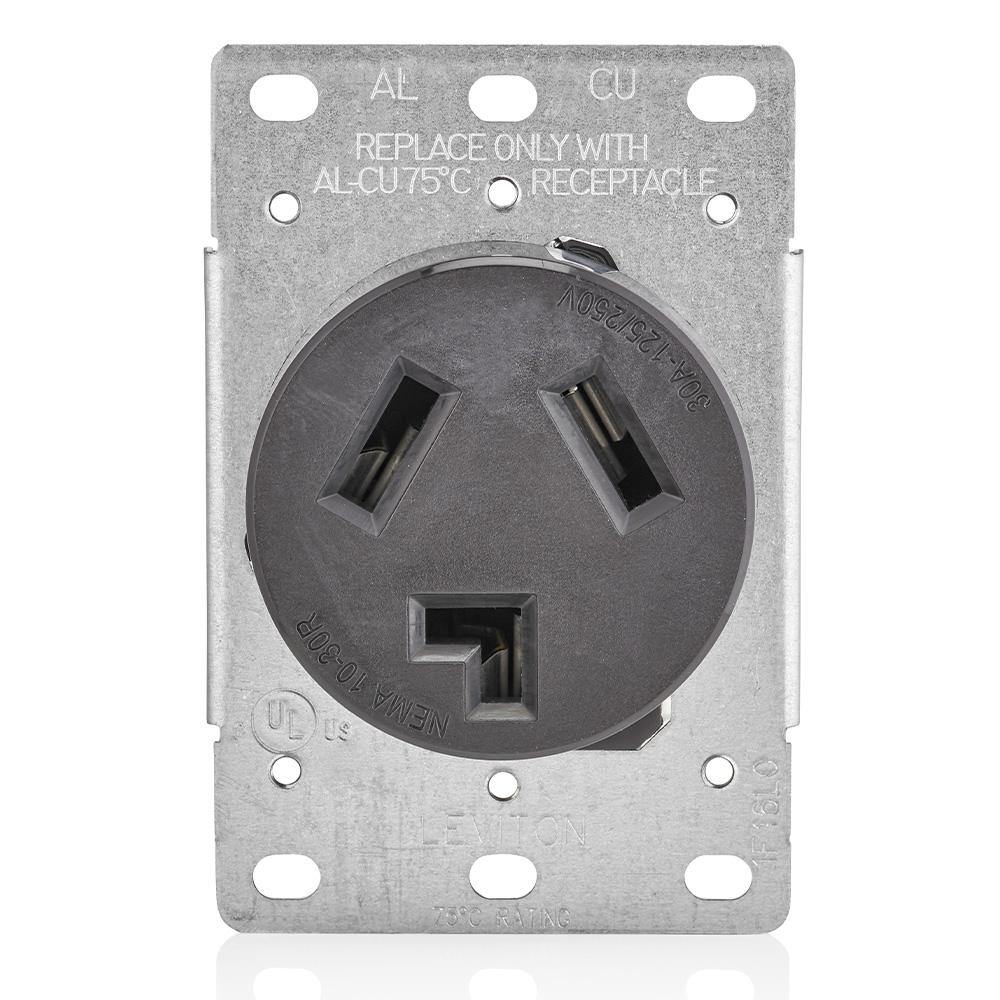

Leviton 5207-S10 Shallow Straight Blade Receptacle 30A 125/250 VAC

Product Description

The Leviton 5207-S10 is a shallow straight blade receptacle designed for 125/250 VAC and rated for 30 Amps. This device features three poles and three wires, providing reliable power connections in various industrial applications. The receptacle is suitable for flush mounting and is built from durable materials to ensure longevity.

• Rated for 30 Amps and 125/250 VAC
• Utilizes three poles and three wires for effective power distribution
• Designed for flush mounting with a shallow profile

Product Highlights

This receptacle is perfect for industrial settings and provides a NEMA 10-30R configuration. It is constructed for side wiring and is compatible with a range of cord sizes.

Product Information

Standard Information

• Brand: Leviton
• Model Number: 5207-S10

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• NEMA Rating: NEMA 10-30R
• Color: Black
• Material: Thermoplastic
• Standard: UL 498
