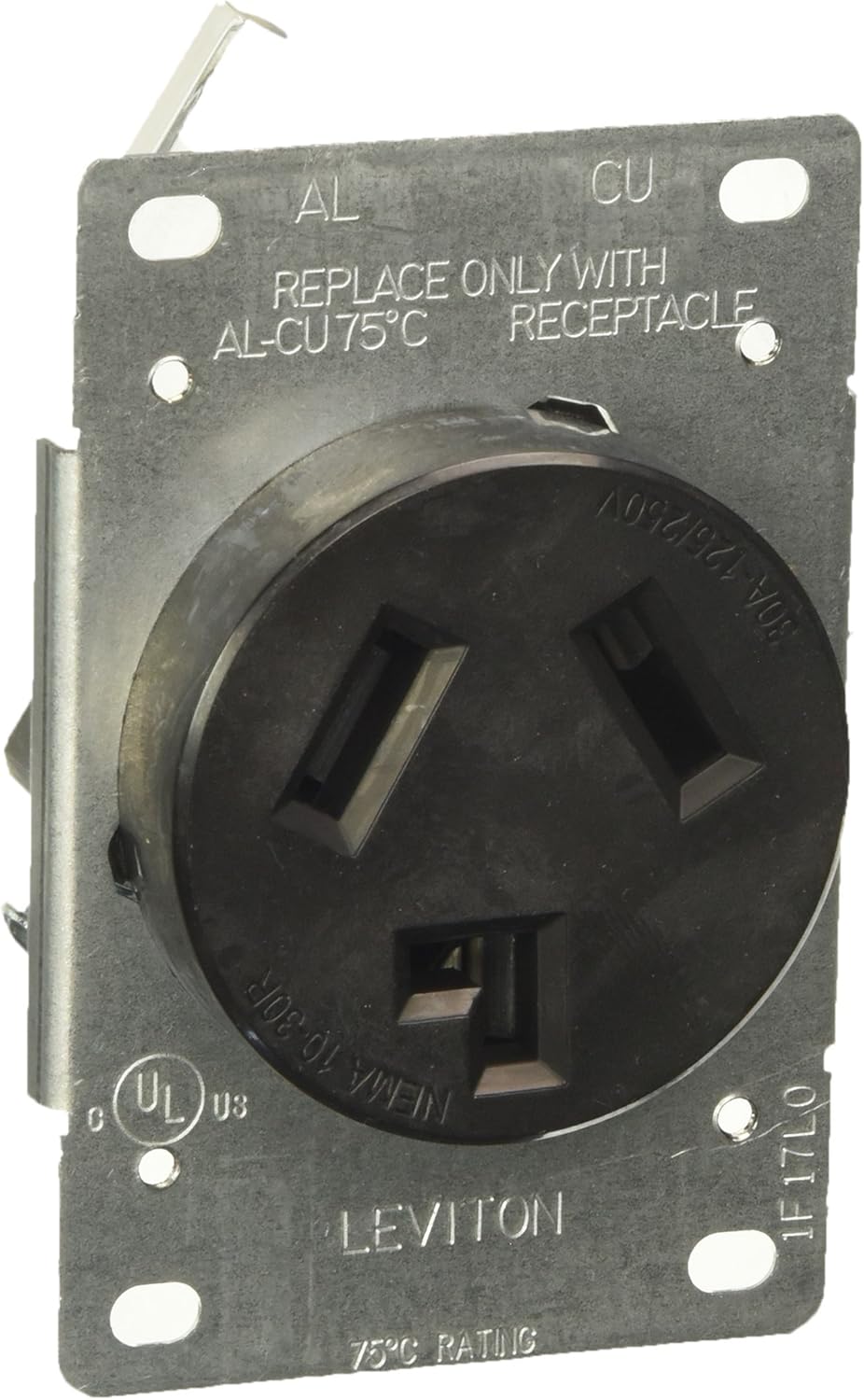

Leviton 5207-S10 30 Amp, 125/250 Volt, NEMA 10-30R Flush Mtg Receptacle

Product Description

The Leviton 5207-S10 is a 30 Amp, 125/250 Volt, NEMA 10-30R flush mount receptacle. This straight blade, industrial grade, non-grounding receptacle features AL-CU and side wired steel strap. It is designed for flush mounting and is suitable for ovens.

• 30 Amp, 125/250 Volt
• NEMA 10-30R, 3P, 3W
• Industrial Grade, Non-grounding

Product Highlights

This receptacle is ideal for industrial applications requiring a robust and reliable power connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5207-S10
• Country of Origin: Mexico

Technical Specifications

• Color: Black
• Voltage: 125/250V
• Amperage: 30A
• Grade: Industrial Grade
• Configuration: NEMA 10-30R
• Poles: 3
• Wires: 3
• Mounting: Flush Mounted
• Voltage Rating: 125/250-Volts
• Current Rating: 30A
• Dielectric Voltage Rating: 2000-Volts
• Termination: Side wired
• Conductor Size: Up to 4-AWG
• Contact Material: Double wipe copper alloy
• Terminal Identification: Brass-hot, green-ground and white-neutral color-coded
• Construction: Thermoplastic
• Load Capacity: 2 hp
• Strap Material: Steel
• Temperature Range: -40 to 75 deg C
• Flammability Rating: V2 per UL94
• Standards: UL listed, CSA/NOM certified and NEMA WD-6, ANSI C-73
• NEMA Configuration: Nema 10-30R
• Wiring: Side Wired
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• Type: Grounding Shallow Single
• Manufacturer Name: Leviton
• Brand Name: Leviton
• Standard: UL 498
• Application: Industrial
• Manufacturer: LEVITON
• Special Features: Shallow Design
• Connector Type: Plug-In
• Total Power Outlets: 1
• Material Type: Plastic
• Specification Met: NEMA
• Product Name: 30A Flush Mount Outlet/Receptacle
• Product Type: Receptacle
• Mounting Style: Flush
• Volts AC: 120, 240
• Amps: 30
• Nema: 10-30R
• Terminal Accom.: #10WG thru #4 AWG
• Terminal ID: X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
• Torque Range: 25 in-lbs.
• UL498: Yes
• CSA: Yes
• RoHS Compliant: Yes
