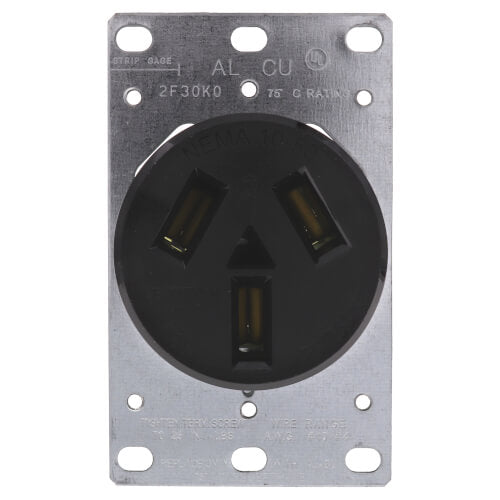

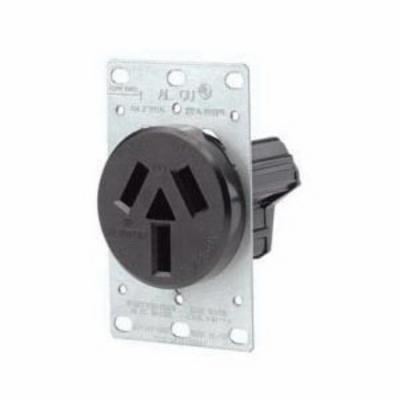

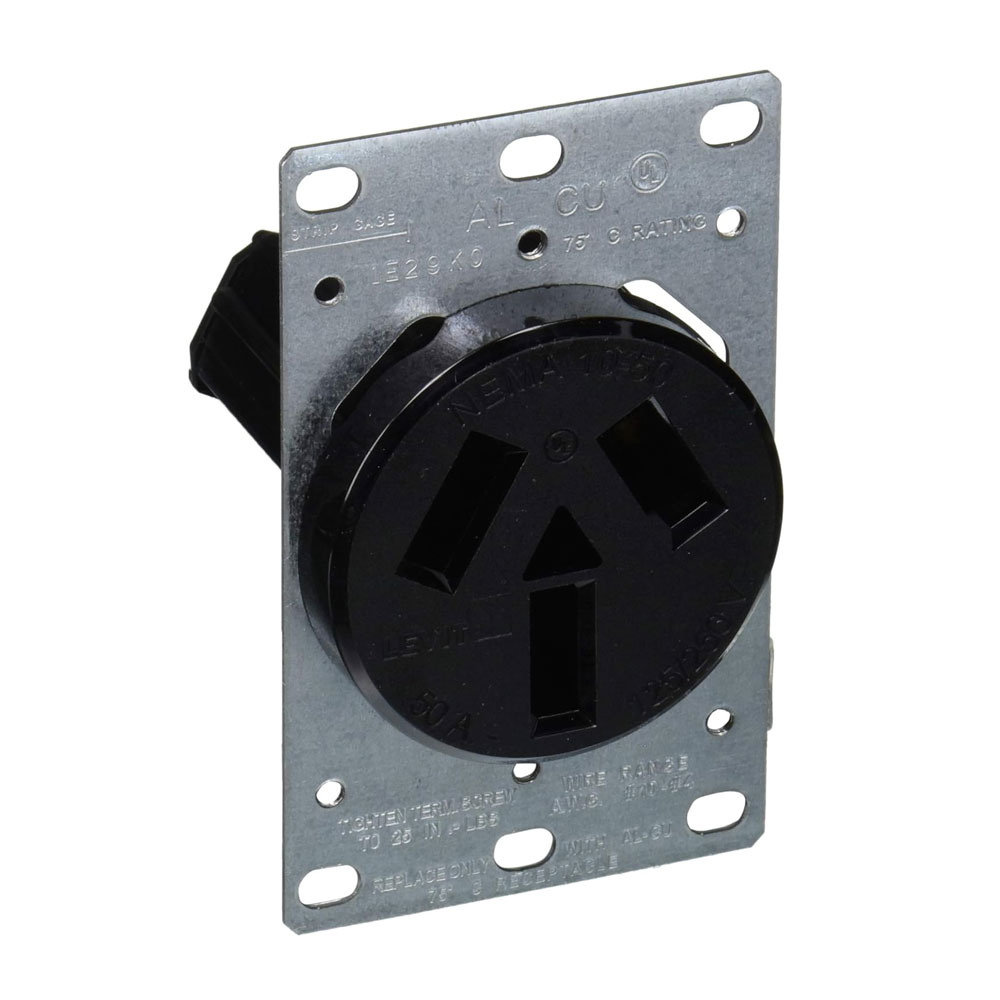

Leviton 5206-S10 Straight Blade Receptacle 50A 125/250 VAC 3 Poles 3 Wires

Product Description

Leviton 5206-S10 is a straight blade receptacle designed for industrial use, rated at fifty amps and operates on one hundred twenty-five to two hundred fifty volts. This receptacle features three poles and three wires. The NEMA rating is 10-50R, ideal for heavy-duty applications.

• Heavy gauge, double wipe copper alloy contacts

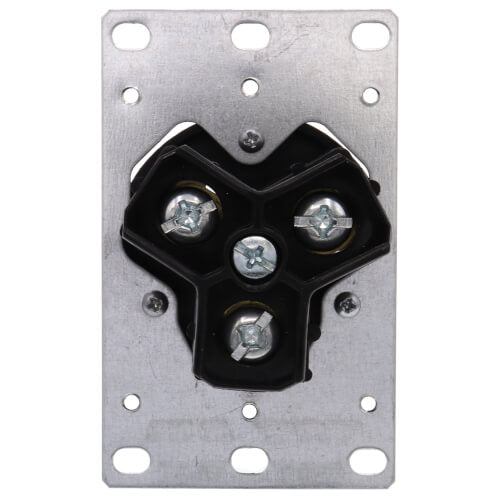

• Easy-to-wire terminals that accept up to four AWG conductors
• Terminals are marked for quick identification and speedy wiring

Product Highlights

Built for durability, this receptacle is made with thermoplastic material and is capable of operating in temperatures ranging from minus forty to sixty degrees Celsius. The side wire terminal design allows for straightforward installation. Flush-mounted options fit well with various gang outlet boxes.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5206-S10

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 3
• NEMA Rating: NEMA 10-50R
• Material: Thermoplastic
• Temperature Rating: -40 to 60 degrees Celsius
• Grade: Industrial
