Product Description

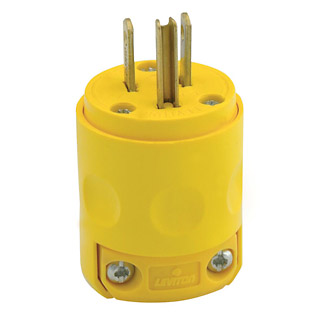

Leviton 515PV is a straight blade plug designed for use with 125 Volt and 15 Amp electrical systems. This NEMA 5-15P plug has two poles and three wires, making it suitable for a range of applications. The rugged PVC construction provides resistance to moisture and chemicals, suitable for both indoor and outdoor use.
- 15 amp and 125 volt rating
- Compatible with NEMA 5-15P standards
- Constructed with durable PVC material
Product Highlights
The Leviton 515PV plug is ideal for replacing plugs on tools, appliances, and extension cords. Its hinged design allows for quick assembly, and it securely accommodates wire sizes between eighteen and twelve AWG.
Product Information
Standard Information
-
Catalog Number: 515PV
-
Manufacturer: Leviton
Technical Specifications
-
Voltage Rating: 125 VAC
-
Amperage Rating: 15 A
-
NEMA Rating: 5-15P
-
Material: PVC
-
Number of Poles: 2
-
Number of Wires: 3
-
Temperature Rating: -40 to 60 degrees C
-
Dimensions: 1.54 inches diameter x 2.77 inches height
-
Environmental Conditions: UL 94 Requirements, V2 Rated Flammability
-
Country of Origin: Mexico
