Product Description

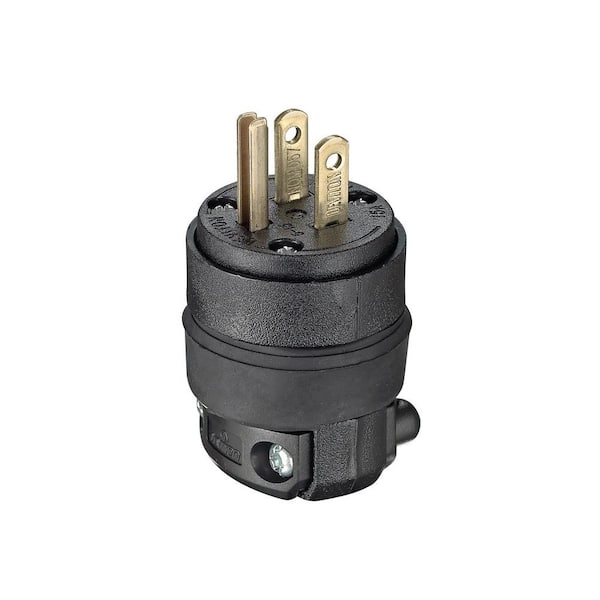

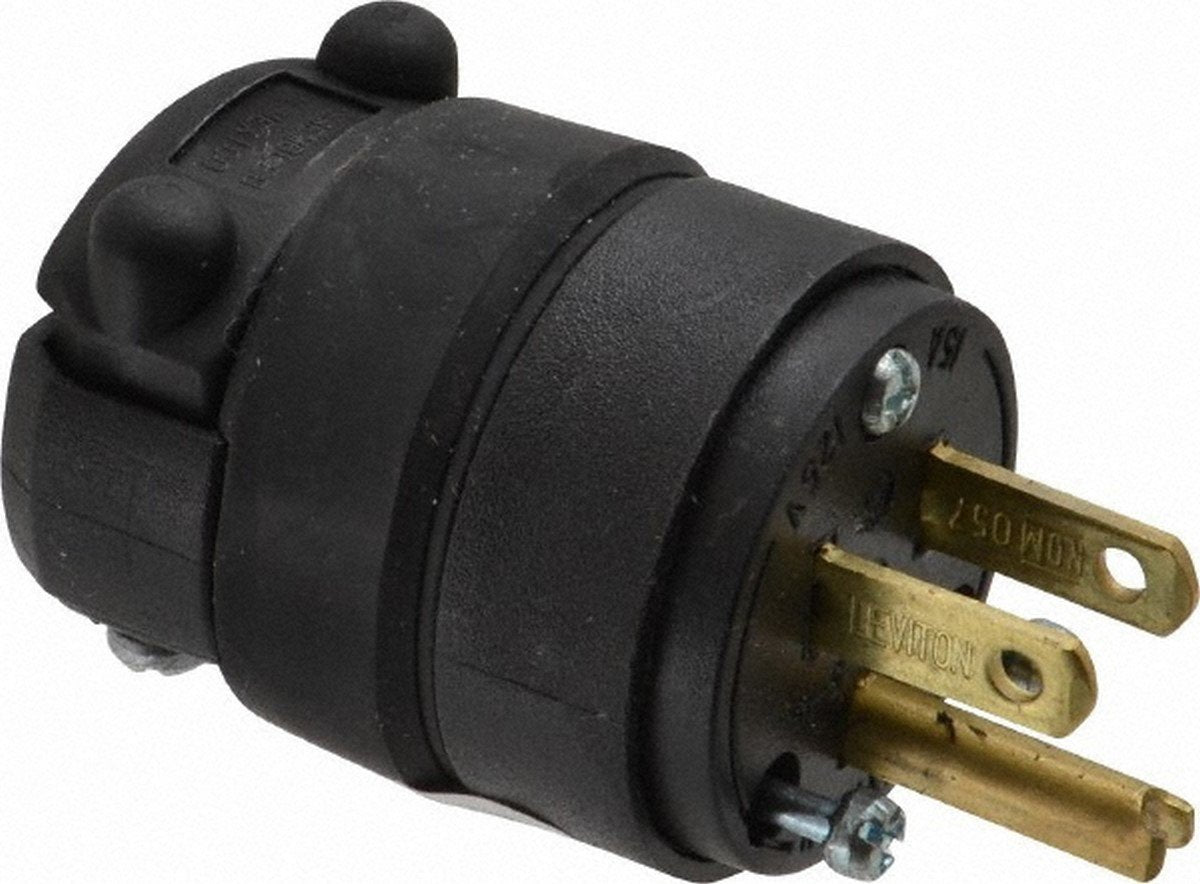

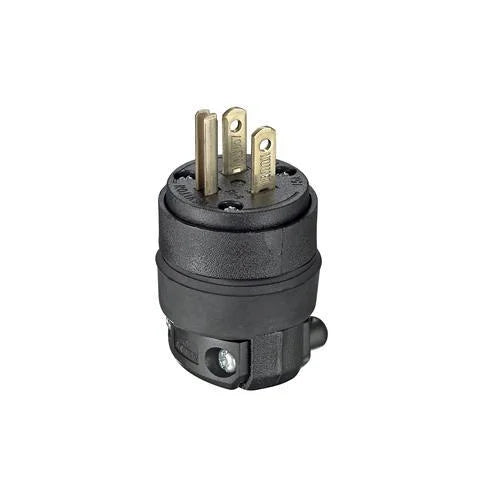

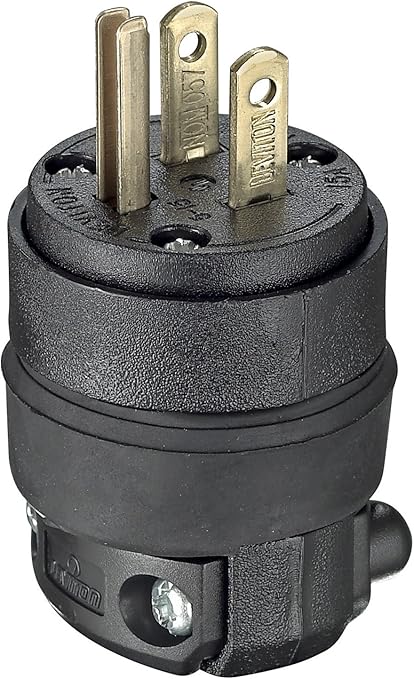

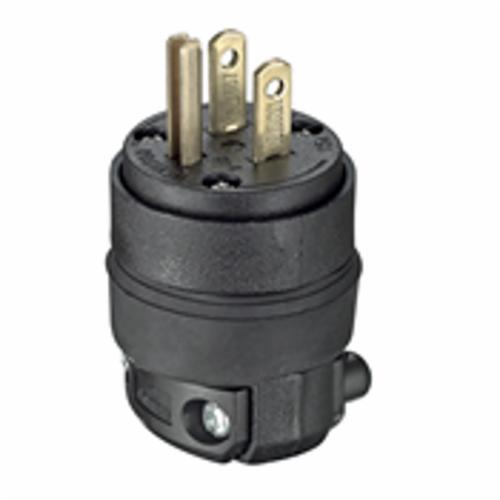

The Leviton 515PR is a commercial-grade straight blade plug. These rugged plugs are moisture, chemical, and abuse-resistant, making them ideal for indoor and outdoor use. The deep-slotted terminal screws draw backwire clamps securely over stripped leads for maximum conductivity. Suitable for commercial and residential applications.
- Moisture, chemical, and abuse-resistant
- Suitable for indoor and outdoor use
- Deep-slotted terminal screws for maximum conductivity
Product Highlights
This straight blade plug is ideal for a variety of applications. It is built to withstand rough use and harsh environments.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 515PR
-
Country of Origin: Mexico
Technical Specifications
-
Brand Name: Leviton
-
Manufacturer Part Number: 515PR
-
Product Type: Power Plug
-
Product Model: 515PR
-
Current Rating: 15 A
-
Voltage Rating: 125 VAC
-
Contact Material: Brass
-
Product Material: Rubber,Steel
-
Certifications & Standards: NEMA: WD-6\nANSI: C-73\nUL498: File E13393\nCSA C22.2 No. 42: File LR-406\nNOM: 057
-
Plug Type: NEMA 5-15P
-
Material: EPTR Rubber
-
Poles: 2
-
Wires: 3
-
Mounting Type: Cable Mount
-
Grounding: Grounding
-
Type: Polarized
-
Configuration: 5-15P
-
Cord Size: 0.245 to 0.7 in
-
Blade Material: Brass
-
Wire Gauge: 18 to 12 AWG
-
Temperature Rating: -40 to 60 deg C
-
Grade: Commercial/Residential
-
Approval: UL 498, CSA C22.2, NOM 057
-
NEMA Rating: NEMA 5-15P
-
Application: Commercial Applications
-
Environmental Conditions: Flammability (Rated V-2 per UL94);Operating Temperature Range (-40 to +60 DEG C)
-
Number Of Poles: 2 Pole
-
Number Of Wires: 3 Wire
-
Dielectric Strength: 2000 Volt
-
Conductor Size: 18-12 AWG
-
Maximum Load Capacity: 1/2 hp
-
Terminal Connection: Screw
-
Operating Temperature: -40 degrees C
-
Flamability Class: Rated V-2 Per UL 94
