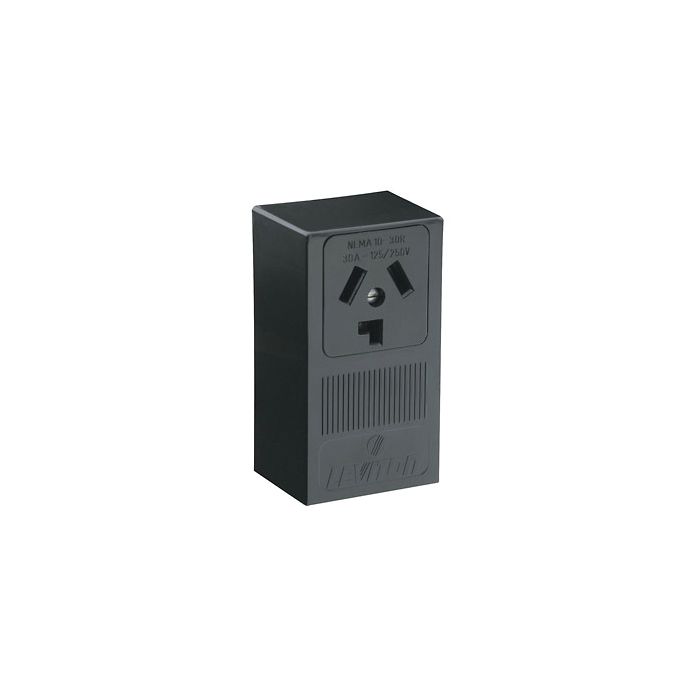

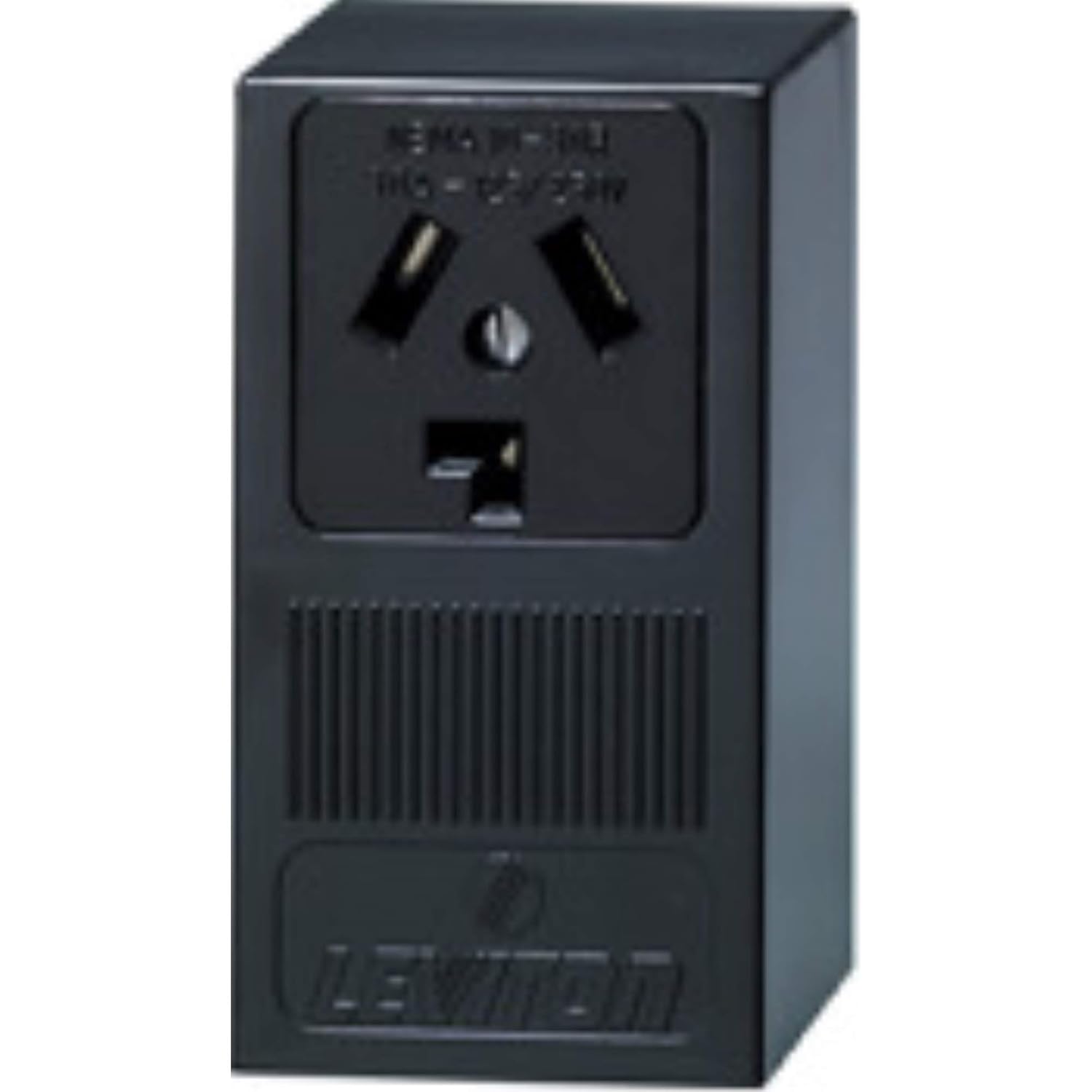

Leviton 5054-P00 RECPT, 3-P 3-W, 30A-125/250V, NEMA10-30R

Product Description

Leviton 5054-P00 is a straight blade receptacle designed for 30 amp, 125/250 volt applications. This unit features three poles and three wires, making it suitable for various industrial needs. The NEMA rating of 10-30R ensures compatibility with specific plug types, which is essential for safety and reliability in electrical installations.

• Non-grounding design for simple installations.
• Durable thermoplastic housing for long-lasting use.
• Temperature rated from negative forty to sixty degrees Celsius.

Product Highlights

This receptacle is ideal for applications requiring a robust and reliable power connection, often used in drying equipment and other heavy-duty electrical systems.

Product Information

Standard Information

• Brand: Leviton
• MPN: 5054-P00

Technical Specifications

• Voltage Rating: 125/250 VAC
• Amperage Rating: 30 A
• Number of Poles: 3
• Number of Wires: 3
• NEMA Rating: NEMA 10-30R
• Horsepower: 2 hp
• Material: Thermoplastic
• Connection Type: Side Wire
• Dimensions: 4.82 in H x 2.68 in W x 2.04 in D
• Temperature Rating: -40 to 60 deg C
• Standards: UL 498, CSA C22.2
