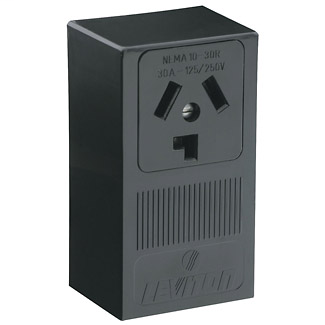

Leviton 5054 30A 125/250V Nema 10-30R Surface Receptacle

Product Description

The LEVITON 5054 is a straight-blade, surface-mount receptacle rated at 30 amps and 125/250 volts, conforming to the NEMA 10-30R configuration. It is a 3-pole, 3-wire, non-grounding device built to industrial-grade standards. The steel strap construction provides durable mounting support in demanding environments. Wiring is side-entry, and the device is rated for use with both aluminum and copper conductors (AL-CU). Finished in black, this receptacle is typically installed by licensed electricians in commercial and industrial facilities where a robust, surface-mounted outlet is required for high-amperage loads.

The LEVITON 5054 is suited for surface-mount installations in commercial, industrial, and light manufacturing environments. Common applications include dryer circuits, workshop power drops, and other 30-amp, 3-wire branch circuits operating at 125/250 volts. The non-grounding NEMA 10-30R configuration is consistent with legacy wiring systems where a separate ground conductor is not present. Side-wired terminations allow for straightforward conductor connections during installation.

Key Features

• NEMA 10-30R configuration — 3-pole, 3-wire non-grounding straight blade design
• Rated 30 amps at 125/250 volts for high-amperage branch circuits
• AL-CU rated terminals accept both aluminum and copper conductors
• Side-wired entry simplifies conductor routing in surface-mount boxes
• Steel strap for secure, rigid mounting
• Industrial-grade construction for demanding commercial and industrial use

Compatibility

Designed as an OEM-style replacement or new-installation receptacle for NEMA 10-30R surface-mount applications in 3-wire, non-grounding branch circuit configurations.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC) and all applicable local codes. De-energize the circuit at the breaker panel and verify absence of voltage with a meter before making any wiring connections. The AL-CU rating requires use of appropriate anti-oxidant compound on aluminum conductors per code requirements. Do not use this non-grounding receptacle as a substitute for a grounding-type outlet in circuits where a ground conductor is present.

Technical Specifications

• Amperage: 30 amps
• Voltage: 125/250 volts
• NEMA Configuration: 10-30R
• Poles: 3
• Wires: 3
• Grounding: Non-grounding
• Wiring: Side wired
• Conductor Compatibility: AL-CU (aluminum and copper)
• Mounting Type: Surface mount
• Strap Material: Steel
• Color: Black
• Grade: Industrial
• UPC: 078477100226

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5054
