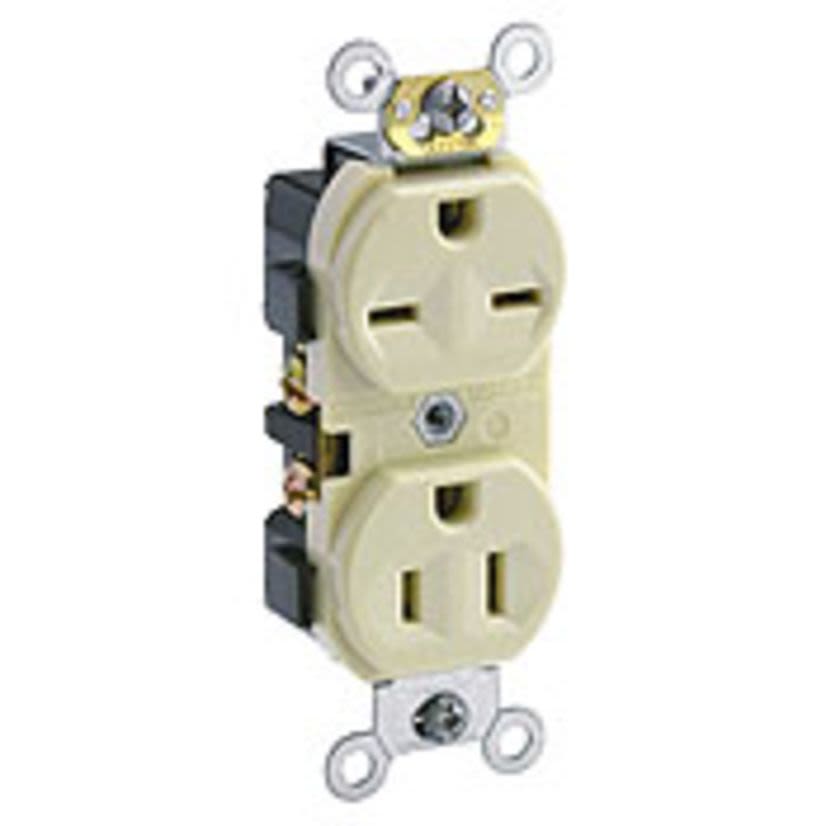

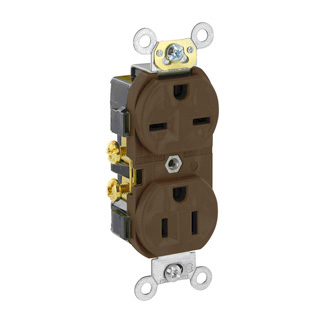

Leviton 5031-I Duplex Receptacle/Outlet, Commercial Grade, Dual Voltage, Self-Grounding

Product Description

The LEVITON 5031-I is a duplex receptacle outlet designed to withstand demanding environments. This commercial specification grade, dual voltage receptacle features an indented face, and is rated for 15 Amp, 125/250 Volt, with side wire, NEMA 5-15R_6-15R, 2-Pole, 3-Wire, and self-grounding.

• Dual Voltage
• Indented Face
• Self-Grounding

Product Highlights

Ideal for use in hotels, schools, hospitals and commercial office buildings. This receptacle is a reliable choice for electrical contractors.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 5031-I
• Country of Origin: Mexico

Technical Specifications

• Nema: 5-15R_6-15R
• RoHS Compliant: Yes
• At Rated Voltage: 1/2 HP 125V / 1-1/2 HP 250V
• Amperage: 15 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
• Voltage: 125/250 VAC
• Wire: 3
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40 60 to 61°30'C
• Body Material: Nylon
• Clamp Nuts: Zinc-Plated Steel
• Current Rating: 15 A
• Device Type: Duplex Receptacle Outlet
• Face Material: Nylon
• Grade: Commercial Specification Grade
• Ground Clips: Brass-Plated
• Grounding Screw: Brass 8-32
• Input Voltage: 125V AC, 250V AC
• Line Contacts: Brass Triple-Wipe .031 Thick
• Material: Nylon
• Product Name: 15 Amp Duplex Receptacle/Outlet, Commercial Grade, Dual Voltage, Self-Grounding
• Product Type: Power Socket
• Receptacle Type: NEMA 5-15R, NEMA 6-15R
• Screw Terminal Torque: 14-16 in-lbs
• Strap Material: Zinc-Plated Steel
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Terminal Screws: Brass 10-32
• Termination: Side Wire
• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-2 WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: 10-Year Limited
• Product ID: Ratings are permanently marked on device
• AC Horsepower Ratings At Rated Voltage: 1/2 HP 125V / 1-1/2 HP 250V
• Dielectric Strength: Withstands 2000V per UL498
• Temperature Rise (Max): Max 30C after 100 cycles OL at 150 percent rated current
• Flammability Rating: Rated V-2 per UL 94
