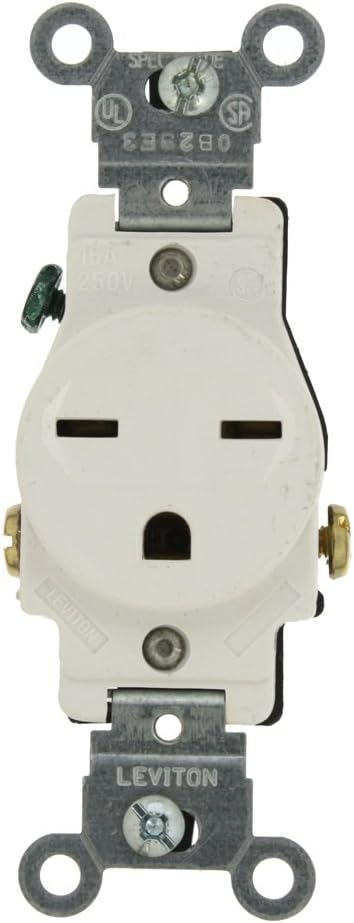

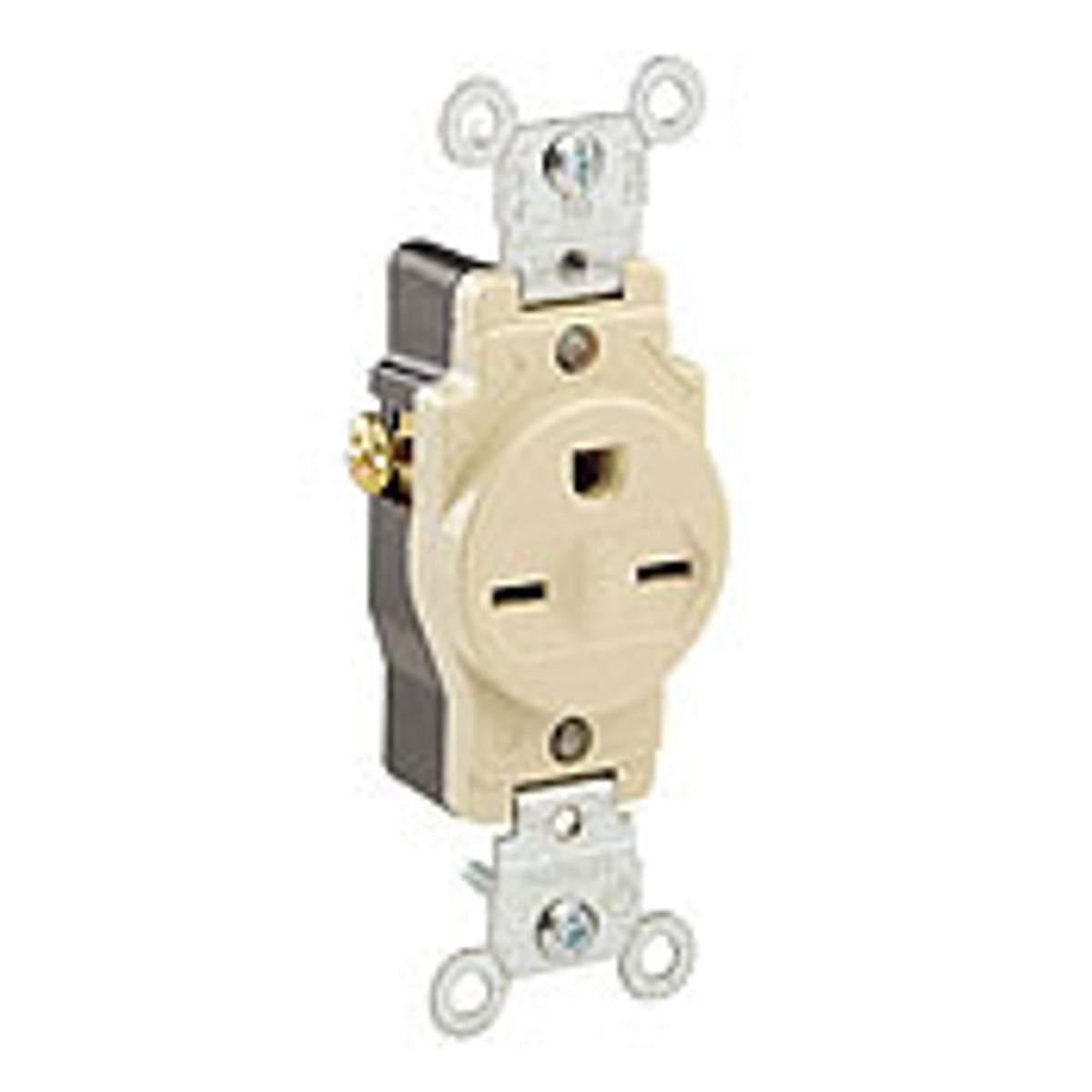

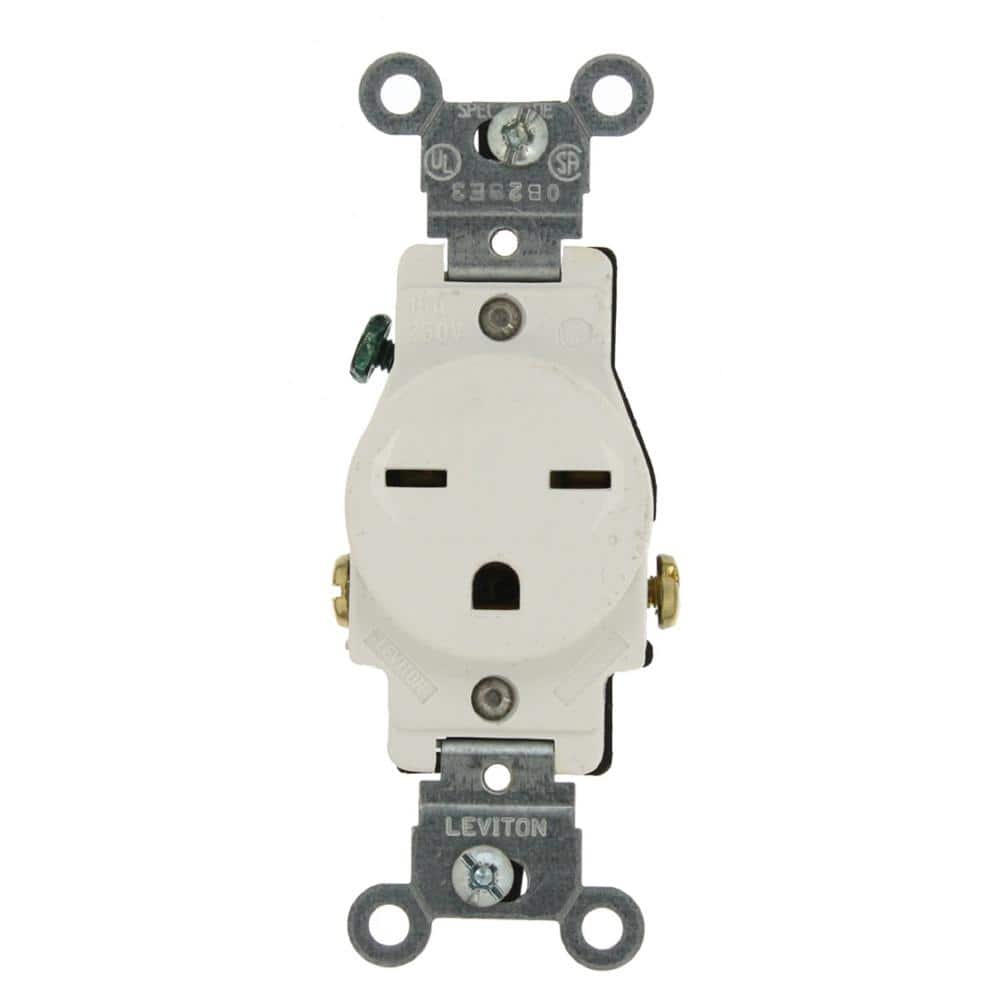

Leviton 5029-W Narrow Body Single Receptacle 15 Amp 250 Volt (Single) 5651W

Brand: LEVITON
SKU: 5029-W
Availability: In Stock

Ships same day if ordered by 12 pm
$17.23
$17.23
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Leviton 5029-W is a commercial-grade narrow-body single receptacle rated 15 Amp, 250 Volt with straight-blade grounding contacts. The device is constructed of steel for the mounting strap and body components, features a space-saving narrow profile for tight installations, and is supplied as a single unit. It is intended for standard in-wall electrical outlet applications in commercial settings.

  • 15 Amp, 250 Volt rating with straight-blade grounding contacts and NEMA 6-15R configuration
  • Narrow-body design for space-constrained installations; single outlet packaged unit
  • Steel construction with commercial-grade components

Product Highlights

Commercial-grade, narrow-body, 15 A 250 V grounding single receptacle (MPN 5029-W) with steel construction.

Product Information

Standard Information

  • Brand: LEVITON
  • Manufacturer Part Number: 5029-W
  • Country of Origin: Mexico
Technical Specifications
Brand
Leviton
Manufacturer Part Number
5029-W
Amperage Rating
15 Amp
Voltage Rating
250 Volt
NEMA Configuration
NEMA 6-15R
Body Type
Narrow body
Blade Type
Straight blade
Grade
Commercial / Specification grade
Grounding
Self-Grounding
Material
Steel
Mounting Type
Wallbox, Flush
Number of Poles
2
Number of Wires
3
Wire Size
14-10 AWG
Connection Type
Side Wire
Enclosure Rating
NEMA WD-2 / WD-6
Operating Temperature
-40 to 60 �C
Dimensions
1.97 x 0.39 x 1.18 inches
Certifications
NEMA WD-1; NEMA WD-2; NEMA WD-6; ANSI C-73; CSA C22.2 No. 42; UL 498; UL Federal Spec WC-596; NOM 057
Dielectric Strength
2000 V
Flammability Rating
Rated V-2 per UL 94
UPC
068679123345
Country of Origin
Mexico
