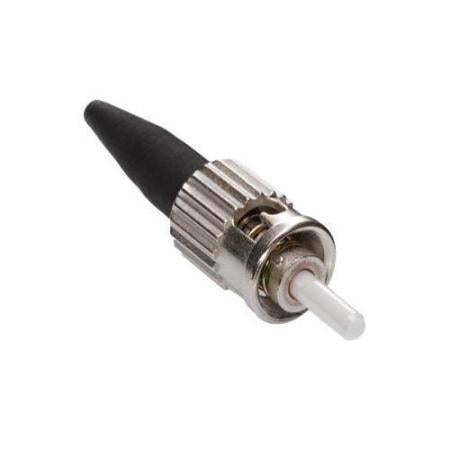

Leviton 49991-5ST Conn FCAM ST OM2 BK

Product Description

The Leviton 49991-5ST is a field-installable fiber optic connector designed to simplify installations. This connector eliminates the need for hand polishing, bonding, or the use of epoxy in the field. It supports both single-mode and multimode configurations and is suited for commercial applications including data centers.

• Field-installable design for quick installation
• Compatible with LC, SC, or ST connections
• Pre-polished with low insertion loss

Product Highlights

The Leviton 49991-5ST is ideal for rapid network deployment and maintenance. It allows verification of optical continuity using a visual fault locator.

Product Information

Standard Information

• Brand: Leviton
• Type: Field-Installable

Technical Specifications

• Connector Type: ST
• Fiber Type: Multi-Mode
• Temperature Rating: -40 to 75 degrees Celsius
• Color: Black
• Finish: Pre-Polished
• Applications: Commercial Use
• Standard: ANSI (TIA-568-C.3), ANSI (TIA-604-2)
• GTiN: 30078477297521
