Product Description

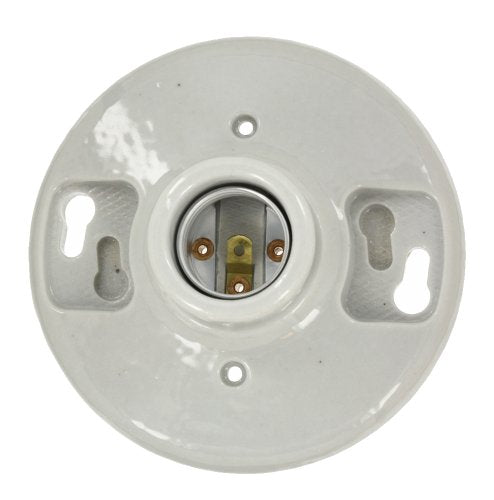

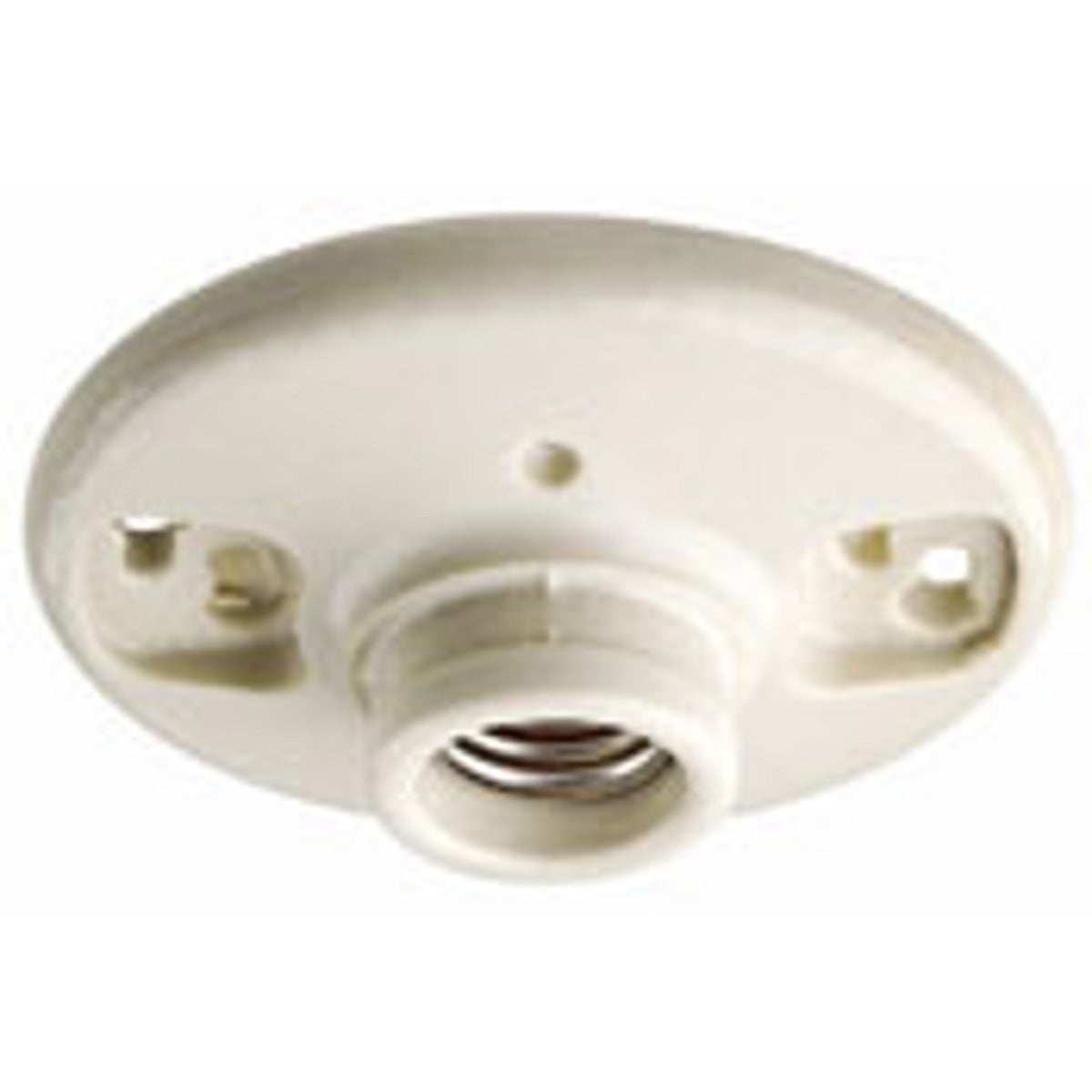

The Leviton 49875 lampholder is a 1-piece keyless lampholder that supports up to 660 W lamps at 250 VAC. Designed for incandescent lamps with a medium base, it features a screw terminal and twist-lock mounting. It has a top wired connection and is constructed from white glazed porcelain with dimensions of 4-1/2 in Dia.
- 1-piece construction
- ON-OFF sequence
- Single circuit lampholder
Product Highlights
This lampholder is ideal for commercial applications and fits 3-1/4 in or 4 in outlet box mounts.
Product Information
Standard Information
-
Brand: LEVITON
-
Manufacturer Part Number: 49875
-
Country of Origin: China
Technical Specifications
-
Type: 1-Piece Keyless
-
Color: White
-
Finish: Glazed
-
Material: Glazed Porcelain (Body)
-
Lamp Type: Incandescent
-
Dimensions: 4-1/2 in Dia
-
Lamp Wattage: 660 W
-
Manufacturer: LEVITON
-
Mounting Type: Twist-Lock
-
Terminal Type: Screw
-
Lamp Base Type: Medium
-
Voltage Rating: 250 VAC
-
Connection Type: Top Wired
-
CSA: LR-1863
-
Base: Medium
-
Torque: 14 lb-in
-
Standard: CSA Certified (LR-1863),UL Listed (E3810)
-
Sub Brand: CEILING LAMPHOLDERS
-
Light Type: Incandescent
-
Product UPC: 07847732300
-
12-Digit UPC: 078477323007
-
Applications: Commercial
-
Circuit Type: Single Circuit
-
Construction: One-Piece
-
Body Material: Glazed Porcelain
-
Operator Type: Keyless
-
Certifications: CSA,NOM,UL
-
Warranty Length: 1 yr
-
Termination Type: 4 Terminal Screws
-
Country of Origin: China
-
Model / MPN: 49875
-
Size: Pack of 1
-
Number of Items: 1.0
-
Product Type: LIGHT_BULB_SOCKET
-
Application: Commercial Applications
-
Manufacturer Part Number: 49875
-
Standards/Approvals: UL File No. E3810|CSA File No. LR1863
-
RoHS Compliant: True
-
Circuit: Single Circuit
-
Sequence: ON-OFF
-
Termination: 4 Terminal Screws
-
Availability: Distribution
-
Shell Material: Aluminum
-
Lamp Socket Base: Medium
-
Fits Outlet Box Size: 3-1/4 or 4 Inch
-
Socket Shell Material: Aluminum
-
Max. Lamp Wattage: 660W
-
Standards and Certifications: UL/CSA, NOM
-
Wiring Access: Top Wired
-
Torque Range: 14 – 18 in.-lbs
-
Mounting: Twist-Lock
-
Maximum Load Capacity: 660 Watt
-
Dimensions: H: 2.12 in
-
W: 4.5 in
-
D: 4.5 in
-
Bulb Compatibility: Incandescent
-
Base Type: E26
-
Wattage Rating: 660W
-
Heat Resistance: Built-in Switch
-
Item [Specifications]: Lampholder
-
Bulb Base Type [Specifications]: Medium Screw (E26)
-
Voltage: 250 VAC
-
Unit count: 1 Count
-
Colour: White
-
Mounting type: Outlet Box Mount
-
Wattage: 660 watts
-
Specification met: CSA, UL
-
Packages: 1 - Unit
50 - Crate
1400 - Pallet
-
UNSPSC: 39111803
-
Energy Star Flag: No
-
RoHS Flag: Contact manufacturer
-
Item Name: Incandescent Outlet Box Lampholder
-
Bulb Base: Medium
-
Bulb Base Group: Screw-In
-
For Use With: 3-1/4 Inch or 4 Inch Outlet Box
-
Dimmable: No
-
Made in USA: No
-
Special Features: 1-Year Limited Warranty, Country of Origin China
-
UPC: 078477323007
-
GTIN: 00078477323007
-
Item Type: Incandescent
-
Cross Reference Products: 274
-
Approval: UL, CSA
-
Body Color: White
-
Number Of Circuits: 1
-
PDW ID: ECL155848
-
Size REF: 4.5 IN x 1.52 IN
