Leviton 49816-C Lampholder 660W 250VAC E26 MDM Incand

Product Description

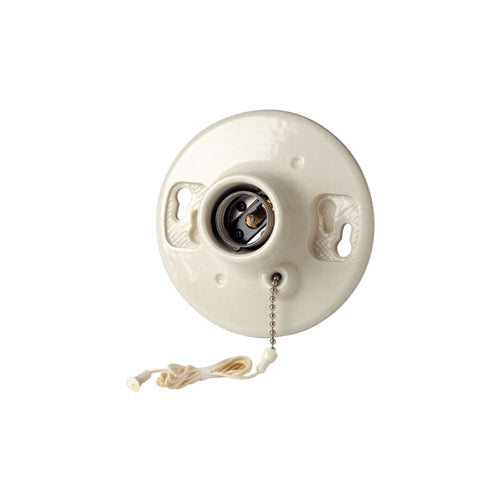

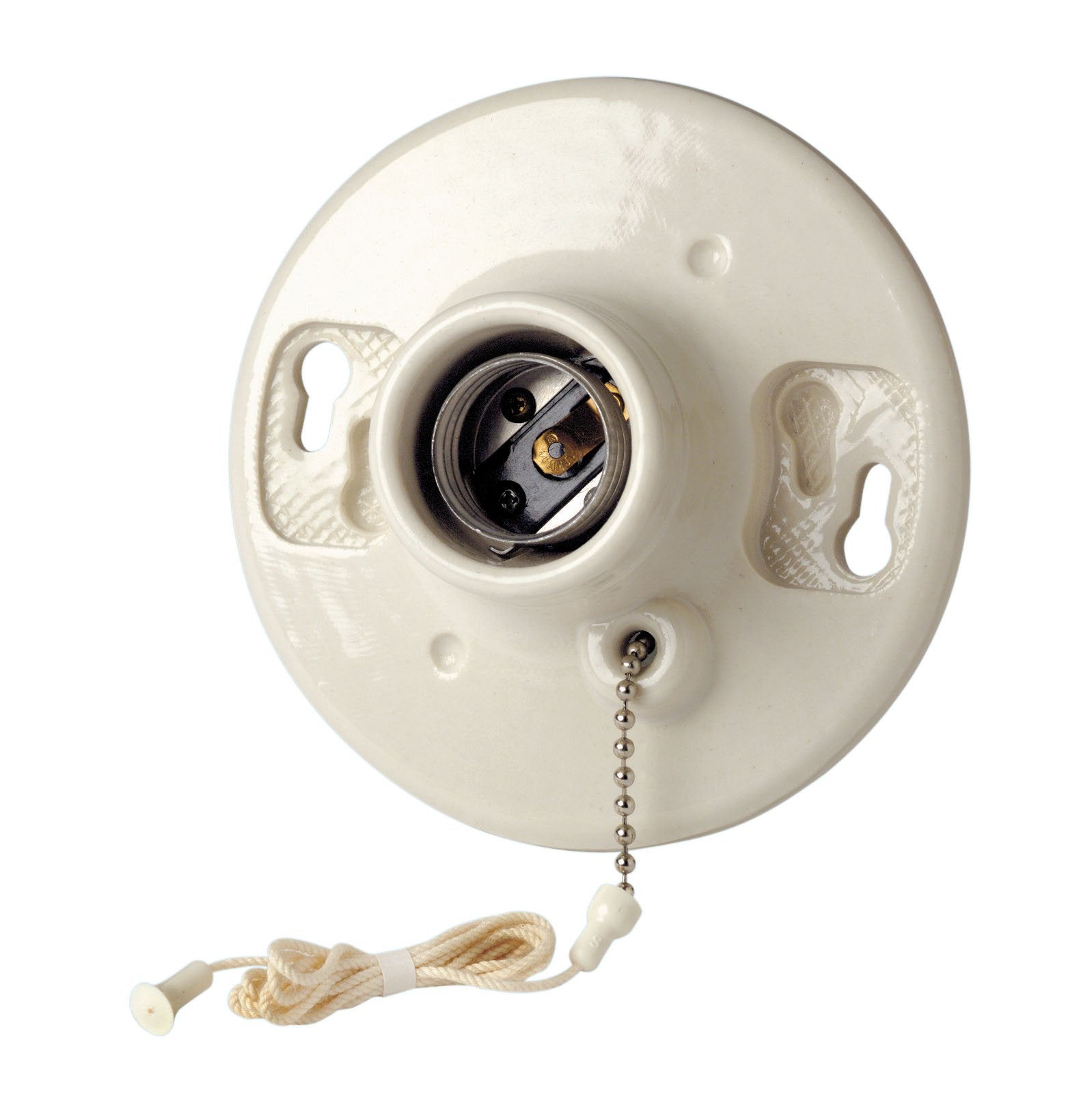

The Leviton 49816-C lampholder is a 1-piece unit designed for incandescent lamps. Rated for 660W and 250 VAC, it features an E26 medium lamp base and twist-lock mounting. Constructed from glazed porcelain with a screw connection, it measures 4-1/2 in OD. Suitable for commercial applications.

• Single circuit
• Top wired access
• 3-1/4 in or 4 in fits outlet box size
• ON-OFF sequence

Product Highlights

This Leviton lampholder supports incandescent, fluorescent, or CFL lamps. It features a medium base and porcelain construction.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 49816-C
• Country of Origin: Please Contact Customer Service

Technical Specifications

• Type: 1-Piece
• Color: White
• Finish: Glazed
• Material: Porcelain
• Lamp Type: Incandescent
• Lamp Wattage: 660 W
• Mounting Type: Twist-Lock
• Lamp Base Type: E26 Medium
• Voltage Rating: 250 VAC
• Connection Type: Screw
• Circuit: Single Circuit
• Sequence: ON-OFF
• Termination: 2 Terminal Screws w/Captive Clamps
• Body Material: Glazed Porcelain
• Shell Material: Aluminum
• Construction: One-Piece
• Wiring Access: Top Wired
• Lamp Socket Base: Medium
• Fits Outlet Box Size: 3-1/4 or 4 Inch
• Socket Shell Material: Aluminum
• Standards and Certifications: UL/CSA
• Torque Range: 14 – 18 in.-lbs
• Application: Commercial Applications
• Standards/Approvals: UL File No. E3810|CSA File No. LR1863
• ECCN: EAR99
• UNSPSC: 39111803
• Lampholder Base: Medium (E26) Base
• Lampholder Watts: 660W
• Part Number #: 49816-C
• UPC: 00078477322901
