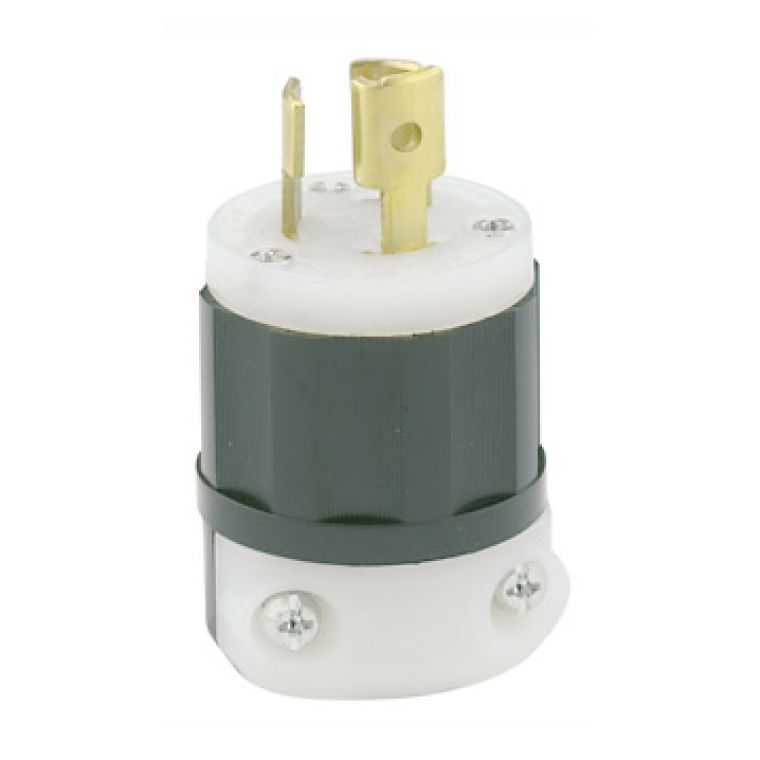

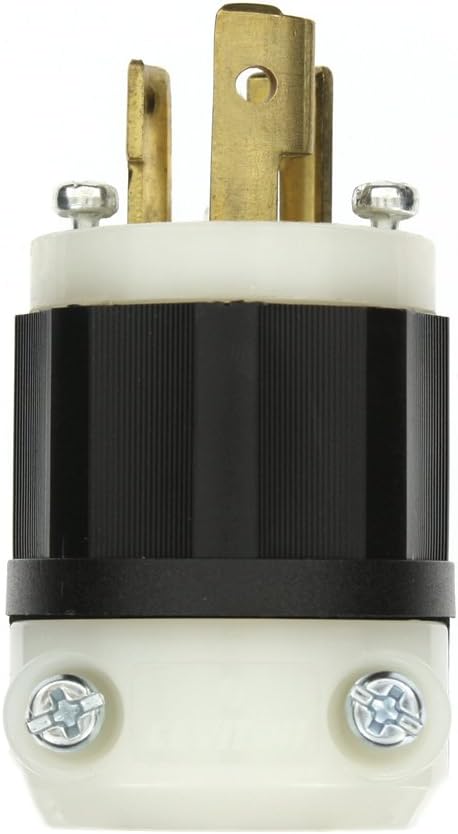

Leviton 4770-PLC 15-Amp, 277-Volt, NEMA L7-15P, 2P, 3W, Locking Plug, Industrial Grade

Product Description

The Leviton 4770-PLC is a 15-Amp, 277-Volt, NEMA L7-15P, 2P, 3W, locking plug designed for industrial use. It features grounding and power indication. The plug's solid brass blades and contacts offer improved conductivity, low resistance, and long life. Internal wiring chambers isolate individual conductors to prevent flashover and arcing.

• One piece contacts reduce friction and overheating
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Ratings and NEMA I.D. permanently marked on device

Product Highlights

Industrial grade locking plug with solid brass blades and rugged nylon construction.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 4770-PLC
• Country of Origin: Mexico

Technical Specifications

• Voltage: 277 Volts
• Material: Nylon
• Connector Type: Plug in
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 4770-PLC
• Nema: L7-15P
• AC Horsepower Ratings: 2 HP
• Amperage: 15 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Wire: 3
• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40 C to 60 C
• Assembly Screws: Steel, Zinc Plated
• Back Cover: Thermoplastic
• Blades/Contacts: Solid Brass
• Body Material: Impact Modified Nylon
• Clamp Insert: Nylon
• Cord-Clamp: Nylon
• Terminal Screws: Brass
• Wire Module: Nylon
• Cord Range: .240 - .700
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Wire Gauge: 18-10 AWG
• Feature: Power Indication
• Number Of Poles: 2
• Number Of Wires: 3
• Product Grade: Industrial
• Amperage Rating: 15 Amps
• Specification Met: NEMA
• HP Rating: 2 hp
• Rated Voltage: 277V
• ADI Part Number: LV-4770PLC
• Brand Name: Leviton
• Manufacturer Part Number: 4770-PLC
