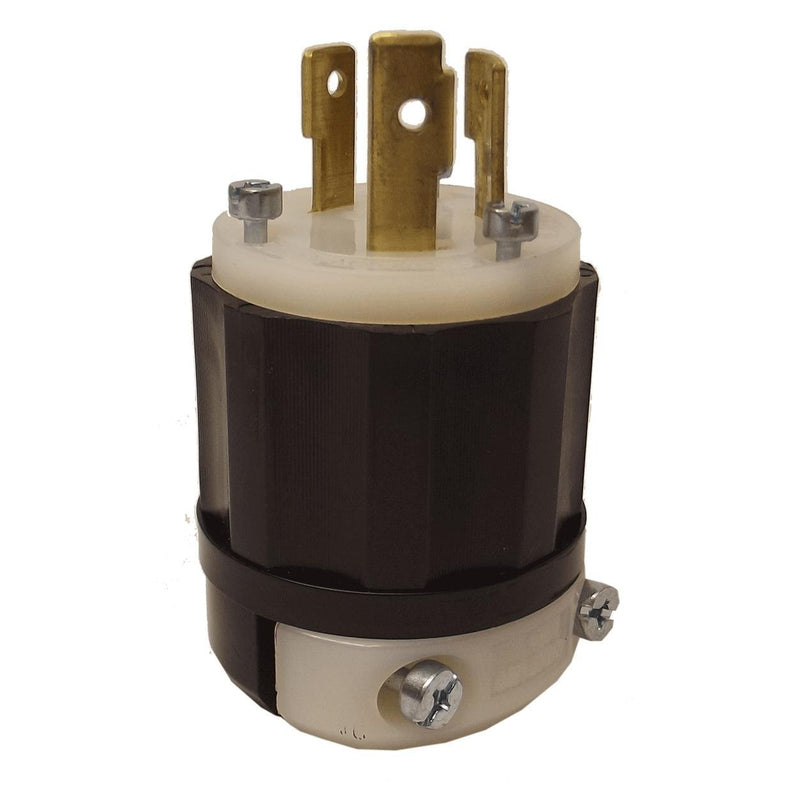

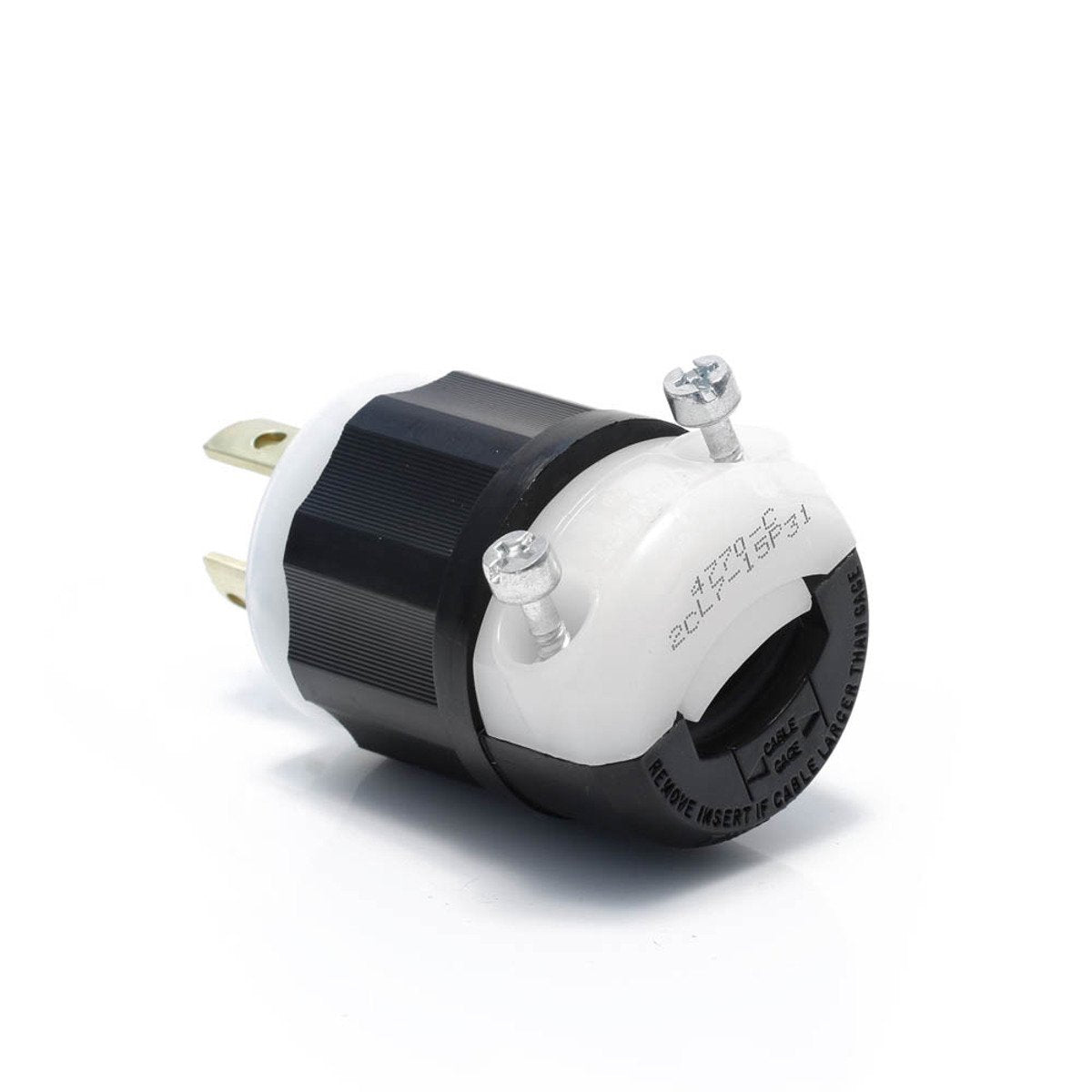

Leviton 4770-C 15 Amp, 277 Volt, NEMA L7-15P Locking Plug, Industrial Grade, Grounding

Product Description

The LEVITON 4770-C is an industrial grade locking plug with a NEMA L7-15P configuration, designed for 277V and 15A applications. Constructed with a super tough nylon body, it resists damage from impact, abrasion, and chemicals. This grounding plug features solid brass blades and contacts for improved conductivity and long service life. It is suitable for industrial applications.

• Certified for current interrupting at full rated current
• Industrial Grade
• Grounding

Product Highlights

Durable nylon construction, solid brass blades, and a secure locking mechanism make this plug ideal for demanding industrial environments.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 4770-C
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 15 A
• Voltage Rating: 277 VAC
• NEMA Rating: NEMA L7-15P
• Number of Poles: 2
• Number of Wires: 3
• Grade: Industrial Grade
• Material: Nylon
• Cord Diameter: 0.24 to 0.7 in
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Horsepower: 2 hp
• Configuration: L7-15P
• Grounding: Grounding
• Operating Temperature: -40°C to 60°C
• Flammability: Rated HB or better UL94
• Dielectric Voltage: Withstands 2000V per UL498
• Approvals: UL, CSA C22.2
• Wire Size: 18-10 AWG
• Body Material: Impact Modified Nylon
• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Solid Brass
• Environment: Dry
