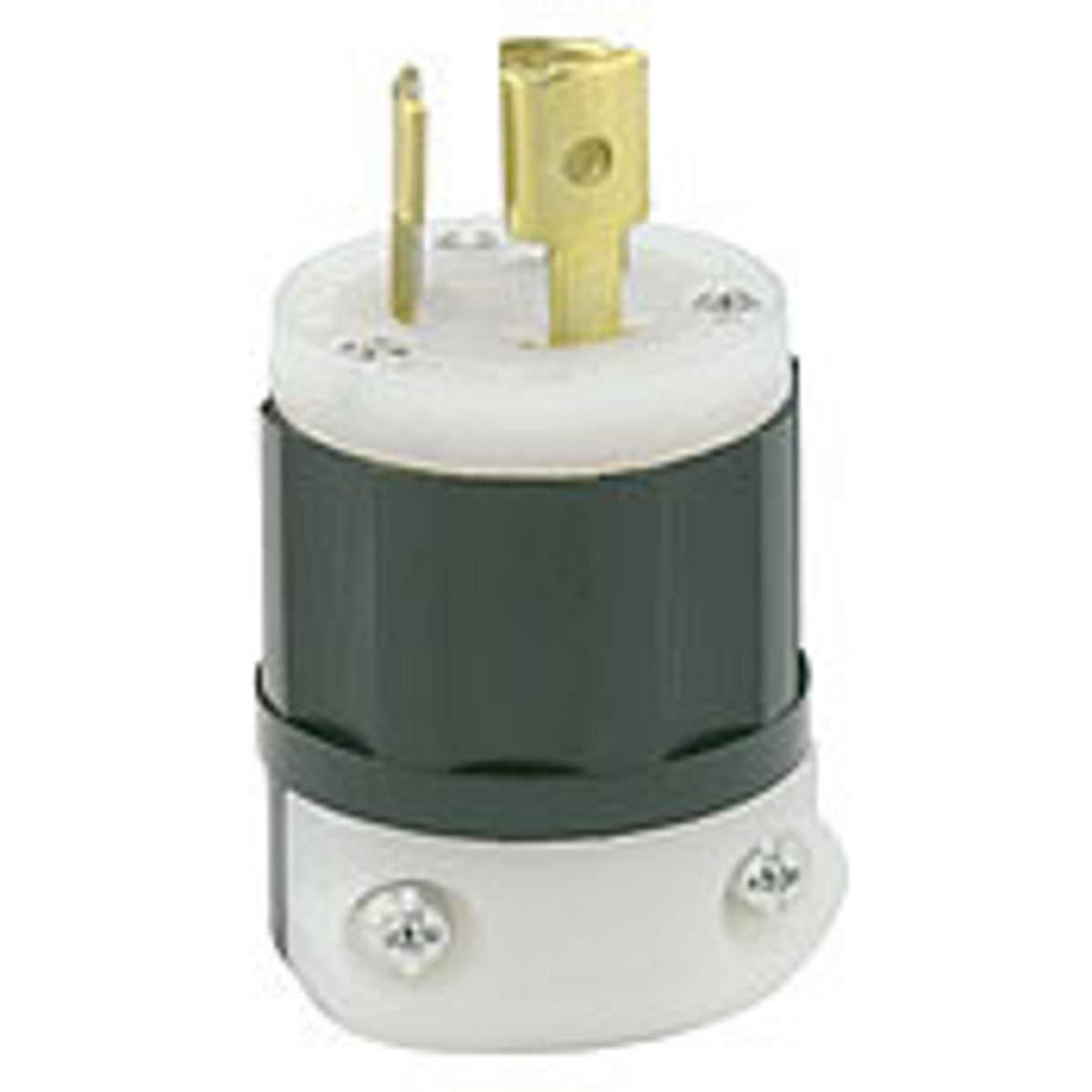

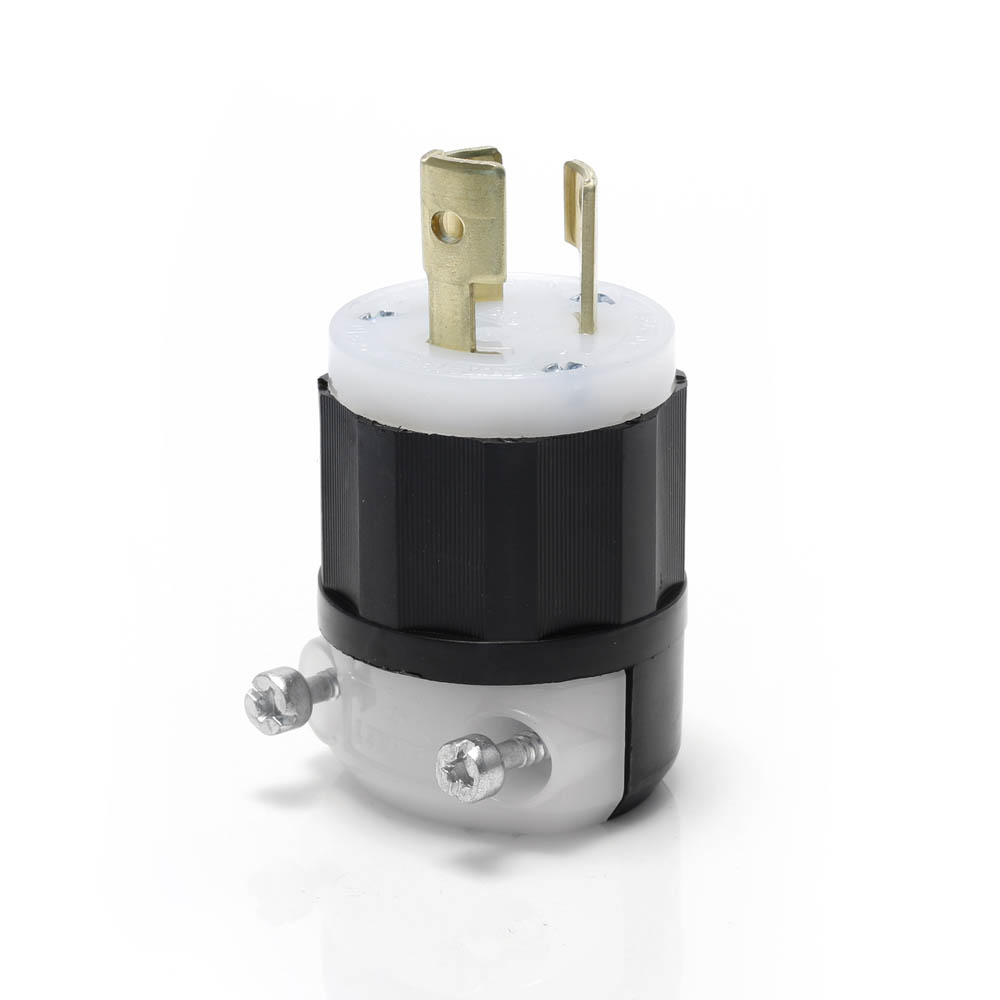

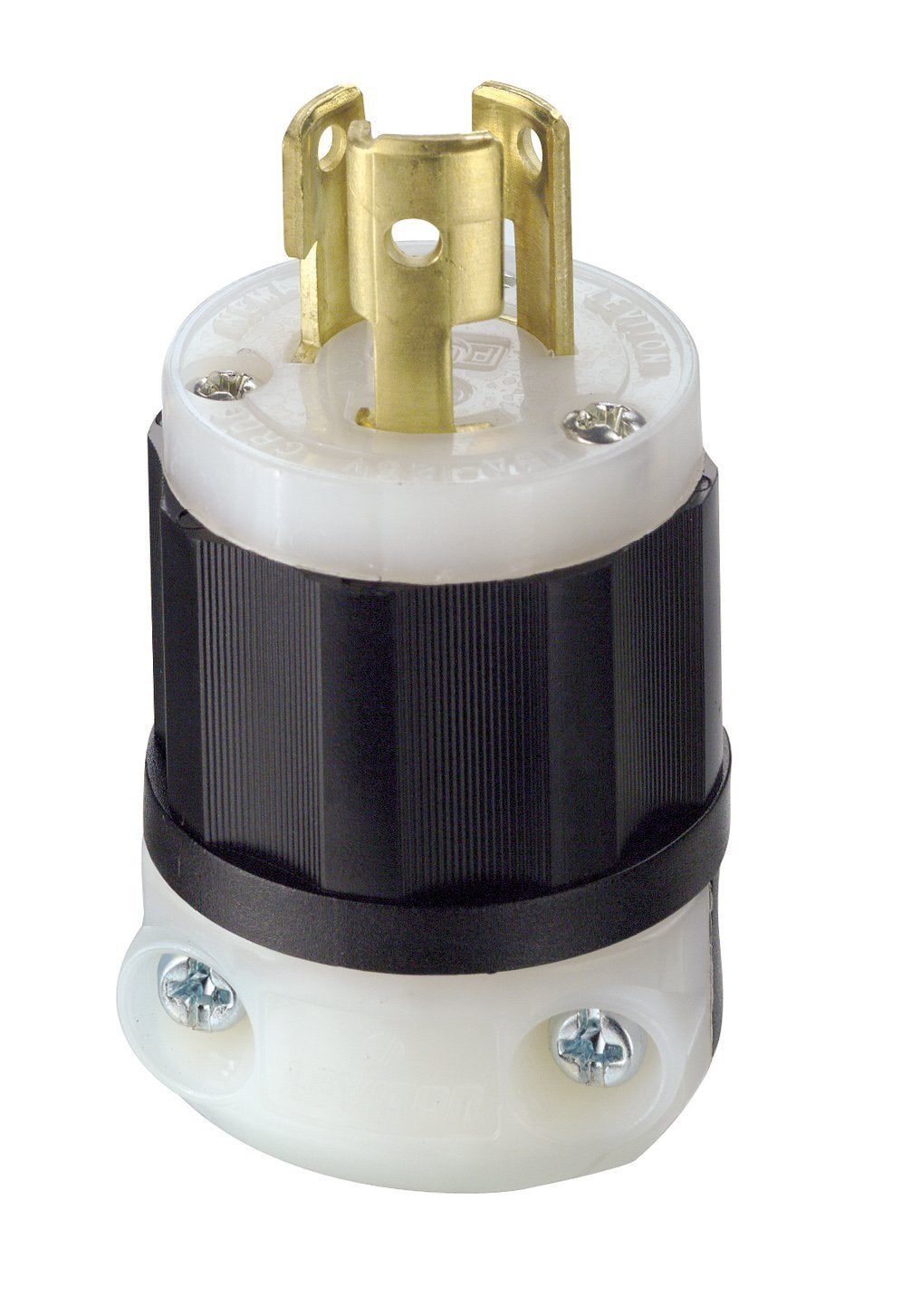

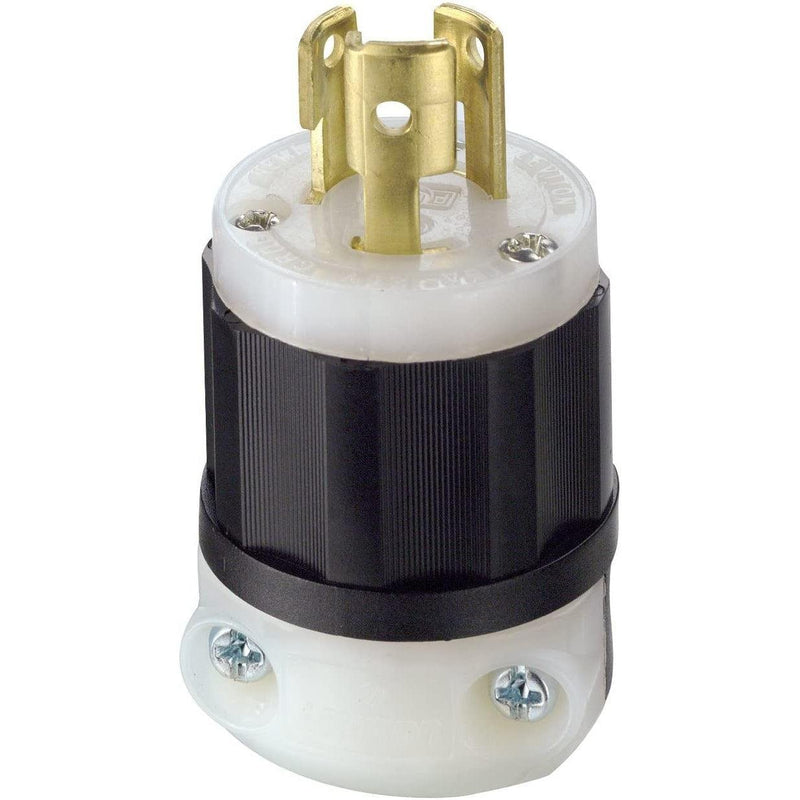

Leviton 4720-C 15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding

Product Description

The LEVITON 4720-C is a 15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, locking plug with industrial grade grounding. This plug is designed for secure and reliable electrical connections. Ideal for industrial applications and motor loads, such as shop vacs and pool pumps, and generators.

• 15 Amp
• 125 Volt
• NEMA L5-15P

Product Highlights

The LEVITON 4720-C locking plug offers superior performance and long-lasting reliability for industrial applications.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 4720-C
• Country of Origin: Mexico

Technical Specifications

• Color: Black-White
• Finish: Black, White
• Voltage: 125 Volts
• Material: Super Tough Nylon (Body), Solid Brass (Blade/Contact)
• Plug Format: Type B
• Power Source: Wired Electric
• Certification: NEMA
• Amperage Capacity: 15 Amps
• Batteries Included?: No
• Batteries Required?: No
• Included Components: 4720-C
• NEMA: L5-15P
• Poles: 2P
• Wires: 3W
• Grade: Industrial Grade
• Grounding: Grounding
• Brand: Leviton
• Model / MPN: 4720-C
• Connector Type: Plug in
• Amperage Rating: 15 A
• Cord Diameter: 0.24 to 0.7 in
• Horsepower: 1/2 hp
• NEMA Rating: NEMA L5-15P
• Number of Poles: 2
• Number of Wires: 3 Wire
• Temperature Rating: -40 to 60 deg C
• Terminal Type: Screw
• Type: 1-Phase Grounding Cable Mount
• Voltage Rating: 125V AC
• Manufacturer: LEVITON
• Country of Origin: Mexico
• RoHS Compliant: True
• Pole: 2
• Wire: 3
• Cord Range: 0.230 to 0.685
• Wire Gauge: 14-8 AWG Solid or Stranded Wire
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 10-14 in-lbs
• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: 40C to 60C
• Back Cover: Thermoplastic
• Cord-Clamp: Nylon
• Wire Module: Nylon
• Clamp Insert: Nylon
• Body Material: Impact Modified Nylon
• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Solid Brass
• Terminal Screws: Brass
• Temperature Rise: 200 %
• Dielectric Voltage: Withstands 2000V per UL498
• Size: 1.53 Diameter X 1.98 L IN
• Phase: 1 Phase
• UNSPSC: 39121402
• Mounting: Cable
• Standard: ANSI (C-73);CSA Certified (File LR-406);NEMA (WD-1, WD-6);NOM Certified (057);UL Fed Spec WC-596 (File E13393);UL498 (File E13393)
• Cord Type: S;SO;SVT
• Sub Brand: Black & White
• Wire Size: 18-10
• Connection: Screwed Terminal
• Application: Industrial
• Description: LEV 4720-C BLK LKG PLUG-NM L5-15P
• Substitutes: 34532
• Box Quantity: 10
• Product Name: Locking Device Plug
• Commodity Code: 5130
• Voltage Rating UOM: 125V
• Stripped Catalog Number: 4720C
• Environmental Conditions: Flammability (Rated V-2);Operating Temperature Range (-40 to +60 DEG C)
• Catalog Description (MFR): 15 Amp, 125 Volt, NEMA L5-15P, 2P, 3W, Locking Plug, Industrial Grade, Grounding - Black-White
• Invoice Description (MFR): EB PLUG LOCK 2PO 3WI L5-15P 15A125V
• Safety Data Sheet (SDS) Flag: Y
• Buy American Act (BAA) Compliant: C
• Concatenated Invoice Description: EB PLUG LOCK 2PO 3WI L5-15P 15A125V
• American Recovery and Reinvestment Act (ARRA) Compliant: C
• Manufacturer Item Status: Active
• Manufacturer Name: Leviton
• UPC: 078477795491
• GTIN: 00078477795491
• Alternative Part Number: 7326408
• Amperage Rating UOM: A
• Country: USA|Canada
• Dimensions UOM: in
• Horsepower UOM: hp
• IDEA Index ID: 7326408
• Temperature Rating UOM: deg C
• Blade Type: Solid Brass
• Dielectric: 2000 V
• Screw Type: Steel,Zinc-Plated
• Wire Count: 3
• Number of Phases: 1 Phase
• Terminal Size: 18-10 AWG
• Conductor Size: 18-10 AWG
• Screw Material: Brass
• Connection Type: Screw Terminal
• Contact Material: Solid Brass
• Flamability Class: Rated HB Or Better UL94
• Operating Temperature Range: (-40 To 60) C
• Approval: UL, CSA C22.2, NOM 057
• Configuration: L15-15P
• Constructional Feature: Abrasion Resistant, Chemical Resistant, Impact Resistant
• Cord Size: 0.24 to 0.7 Inch
• Ground Type: Grounding
• PDW ID: ECL156762
• Product UPC: 07847779549
• Polarized: Yes
• HP: 1/2
• Item: Locking Plug
• Market: Industrial
• Shrouded: No
• IP Rating: Not Rated
• Standards: ANSI C73, CSA C22.2 No. 42 File LR-406, NOM 057 Certified, UL Federal Specification WC-596 File E13393
• Body Length: 1.98 in
• Wiring Style: Standard
• Face Diameter: 1.39 in
• Housing Color: Black, White
• Current Rating: 15 A
• Midget Locking: No
• Overall Length: 2.76 in
• For Environment: Dry
• Housing Material: Nylon
• Number of Blades: 3
• Outside Diameter: 1.53 in
• Special Features: Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
• Horsepower Rating: 1/2 hp
• Maximum Wire Size: 10 AWG
• Minimum Wire Size: 18 AWG
• NEMA Configuration: L5-15
• Wire Connection Type: Screw Terminals
• Resistance Properties: Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
• Connection Orientation: Straight
• NEMA Plug Configuration: L5-15P
• UL 94 Flammability Rating: HB
• For Maximum Cable Diameter: 0.685 in
• For Minimum Cable Diameter: 0.23 in
• Amps - Plugs and Receptacles: 15A
• Item - Plugs and Receptacles: Locking Plug
• Color - Plugs and Receptacles: Black, White
• Grade - Plugs and Receptacles: Industrial
• Maximum Operating Temperature: 60 Degrees C
• Minimum Operating Temperature: -40 Degrees C
• Voltage - Plugs and Receptacles: 125VAC
• Hazardous Location Specification: Not Applicable
• Country of Origin (subject to change): United States
• NEMA Plug Configuration - Plugs and Receptacles: L5-15P
• Current Interrupting: Certified for current interrupting at full rated current
• Terminal Accom.: 18-10 AWG
• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NOM Certified: 057
• UL Fed Spec WC-596: File E13393
• Specification Met: NEMA
• Blades: Brass
• Length: 1.98"
• Diameter: 1.53"
• Commercial/Industrial: Commercial/Industrial
• Indoor: Indoor
• Standards and Certifications: UL/CSA
• ADI Part Number: LV-4720C
