Leviton 467 Fluorescent Lampholder 660 W

Product Description

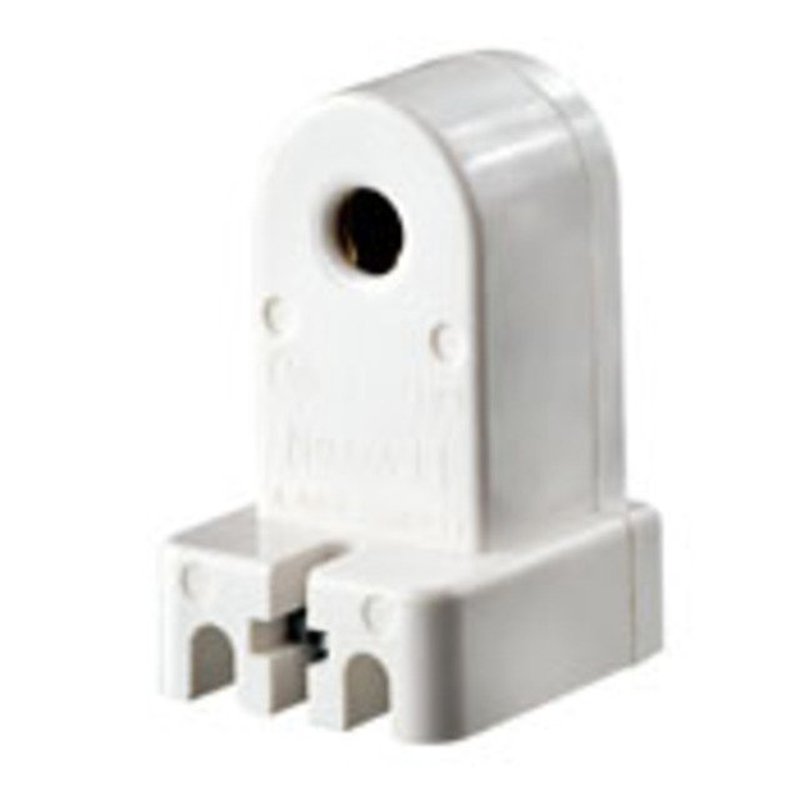

The LEVITON 467 is a slimline base, single-pin, standard fluorescent lampholder. It is a pedestal, slide-on, stationary component with a thermoplastic body. This lampholder is suitable for slimline fluorescent lamps and is commonly used in commercial applications. It is rated for 660W and is UL, CSA, and NOM approved.

• Quickwire terminals accept 18 AWG twisted and tinned, solder dipped/solid leads
• Rated for 660W
• Suitable for slimline fluorescent lamps

Product Highlights

The LEVITON 467 is a reliable choice for fluorescent lighting applications, offering easy installation and robust construction.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 467
• Country of Origin: Mexico

Technical Specifications

• Approval: UL, CSA, NOM
• Body Color: White
• Body Material: Thermoplastic
• Lamp Base: Slimline
• Lamp Type: Slimline Fluorescent
• Lamp Wattage: 660 W
• Manufacturer Name: Leviton
• Mounting: 20 Gauge Panel, Slide-On
• PDW ID: ECL155262
• Product UPC: 07847711773
• Type: Pedestal, Standard
• Contact Type: Stationary
• Panel Thickness: 20 Ga. Panel
• Rated Wattage: 660W
• Voltage: 600 Volt
• Standards and Certifications: UL/CSA/NOM
• CSA Certified: File LR-1863
• NOM Certified: 057
• UL Listed: File E5833
• Power: 660W
• Item Length: 2.000
• Compatible Product: Fluorescent Lamp Holder Light Socket
• Current Type: AC
• Item Height: 0.500
• Amperage: 660 W
• Features: Heavy Duty
• Bulb Wattage: 600 W
• Item Width: 2.000
• Lighting Technology: Fluorescent Tube
• Material: Plastic
• Installation Area: Indoor
• Brand: Leviton
• Connectors: Single Pin
• Model: 467
• Output Voltage: 600 V
• Product Line: Leviton
• Application: Commercial
• Base: Slimline
• Bulb: Fluorescent Lamp
• Standard: UL Listed (E5833)/CSA Certified (LR 5863)/NOM Certified (057)
• Voltage Rating: 600 V
• Additional Info: FIXED SOCKET, MATE TO LV466 PLUNGER
• Lamp Types: FLUORESCENT
• BT Part#: LV467
• BT Description: LV 467
• Mfg: LEVITON
• Mfg Prod Description: 467
• Tariff Code: 8536.61.00.00
• BT Ordering Code: 0011574
