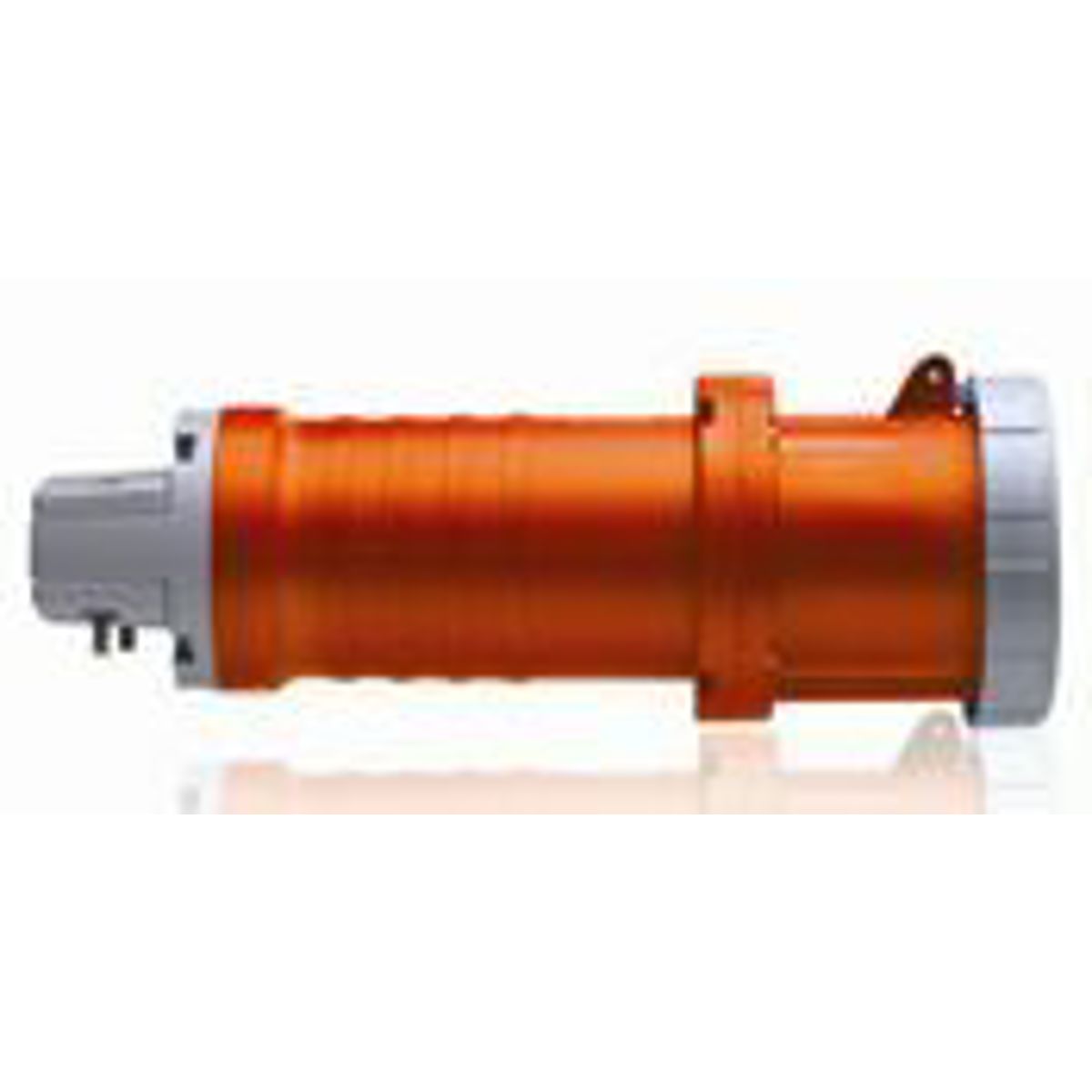

Leviton 460C12W Pin And Sleeve Connector 60 Amp 125/250 Volt

Product Description

Leviton 460C12W is a pin and sleeve connector designed for industrial use. It operates at 60 amps and supports voltages of 125 and 250. This watertight connector features an IP67 rating and is made from Valox 357 material. With a size of four point four one inches in diameter and eleven point two six inches in length, it is suitable for various applications.

• Rated for 60 amps and 125/250 volts
• IP67 rated for watertight performance
• Made of Valox 357 for durability

Product Highlights

This connector is ideal for industrial applications requiring reliable electrical connections in moist or harsh environments.

Product Information

Standard Information

• Catalog Number: 460C12W
• Manufacturer: Leviton
• Country of Origin: Czech Republic

Technical Specifications

• Amperage Rating: 60 A
• Voltage Rating: 125;250 VAC
• Number of Poles: 3
• Number of Wires: 4
• Material: Valox 357
• Size: 4.41 Diameter x 11.26 Length
• Application: Industrial
• Environmental Conditions: Rated for humidity and temperature extremes (-40 to 60 degrees Celsius)
• Standards: UL Listed; CSA Certified
