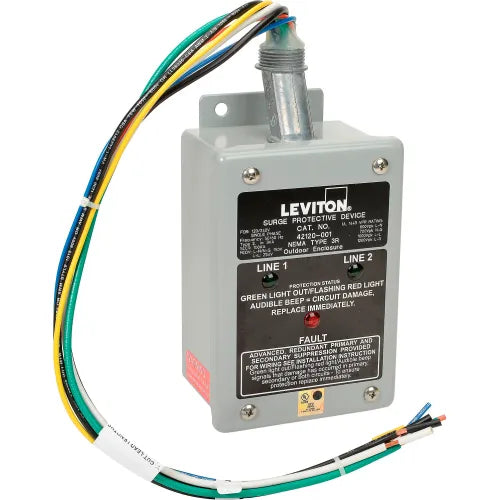

Leviton 42120-1 120/240 Volt Single Phase Panel Protector 4-Mode Protection

Product Description

The Leviton model 42120-1 is a 120/240 Volt single phase panel protector designed for commercial applications. This surge protection device features 4-mode protection to safeguard against electrical surges and spikes.

• Voltage rating of 120/240 Volts
• NEMA 3R enclosure for outdoor use
• Peak surge current rating of 80 kA

Product Highlights

This device is suitable for industrial and commercial settings, offering a robust solution to prevent damage from voltage transients.

Product Information

Standard Information

• Brand: Leviton
• Manufacturer Part Number: 42120-1

Technical Specifications

• Catalog Number: 42120-1
• Country of Origin: Mexico
• Material: Powder Coated Steel
• Width: 4.25 inches
• Height: 7.5 inches
• Depth: 3.25 inches
• Application: Commercial
• Frequency Rating: 50/60 HZ
• Short Circuit Rating: 10 kAMP
• Environmental Conditions: Storage temperature (-20 to +85 degrees Celsius); Humidity (5 to 95% Non-Condensing)
