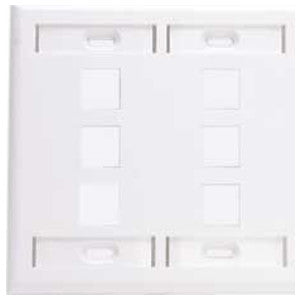

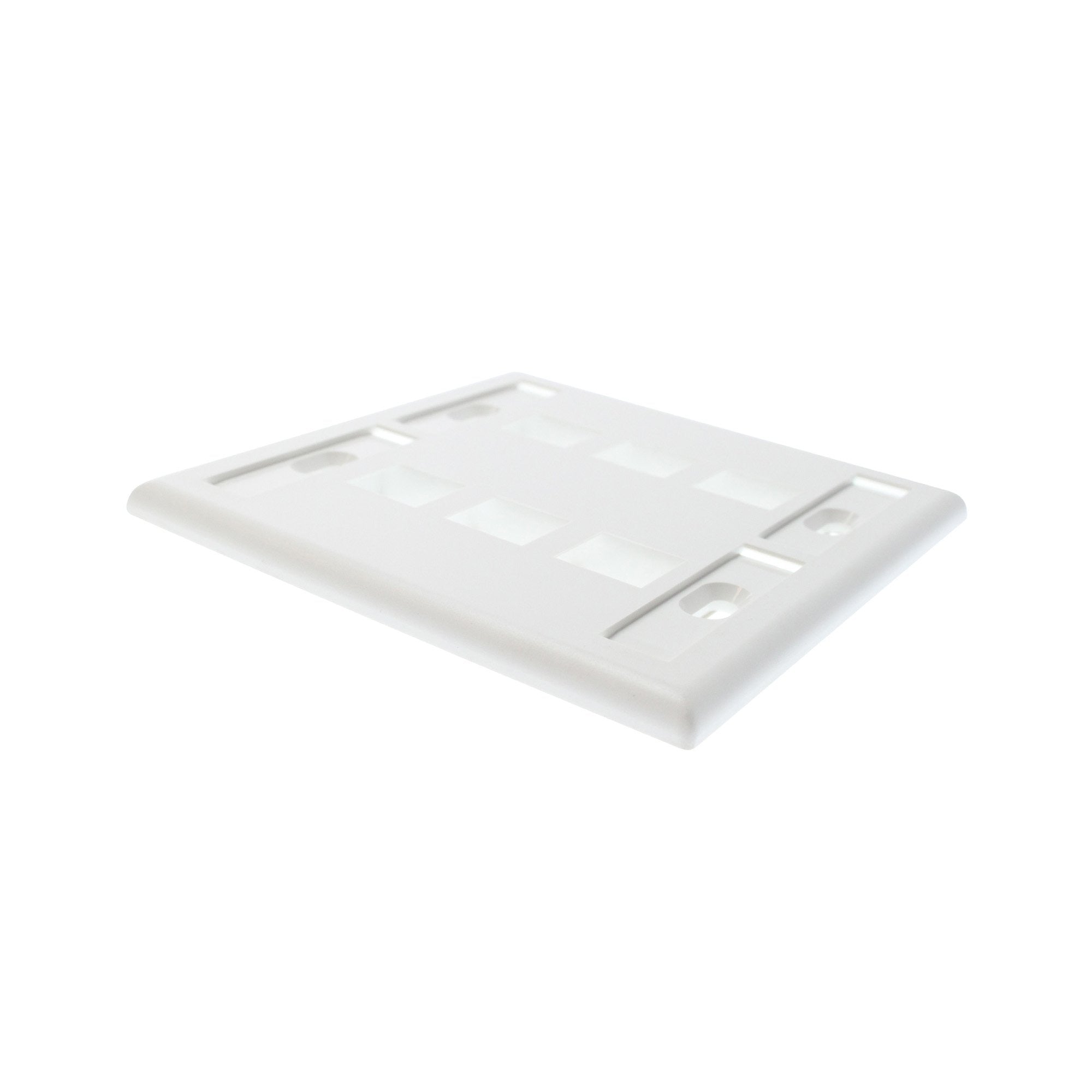

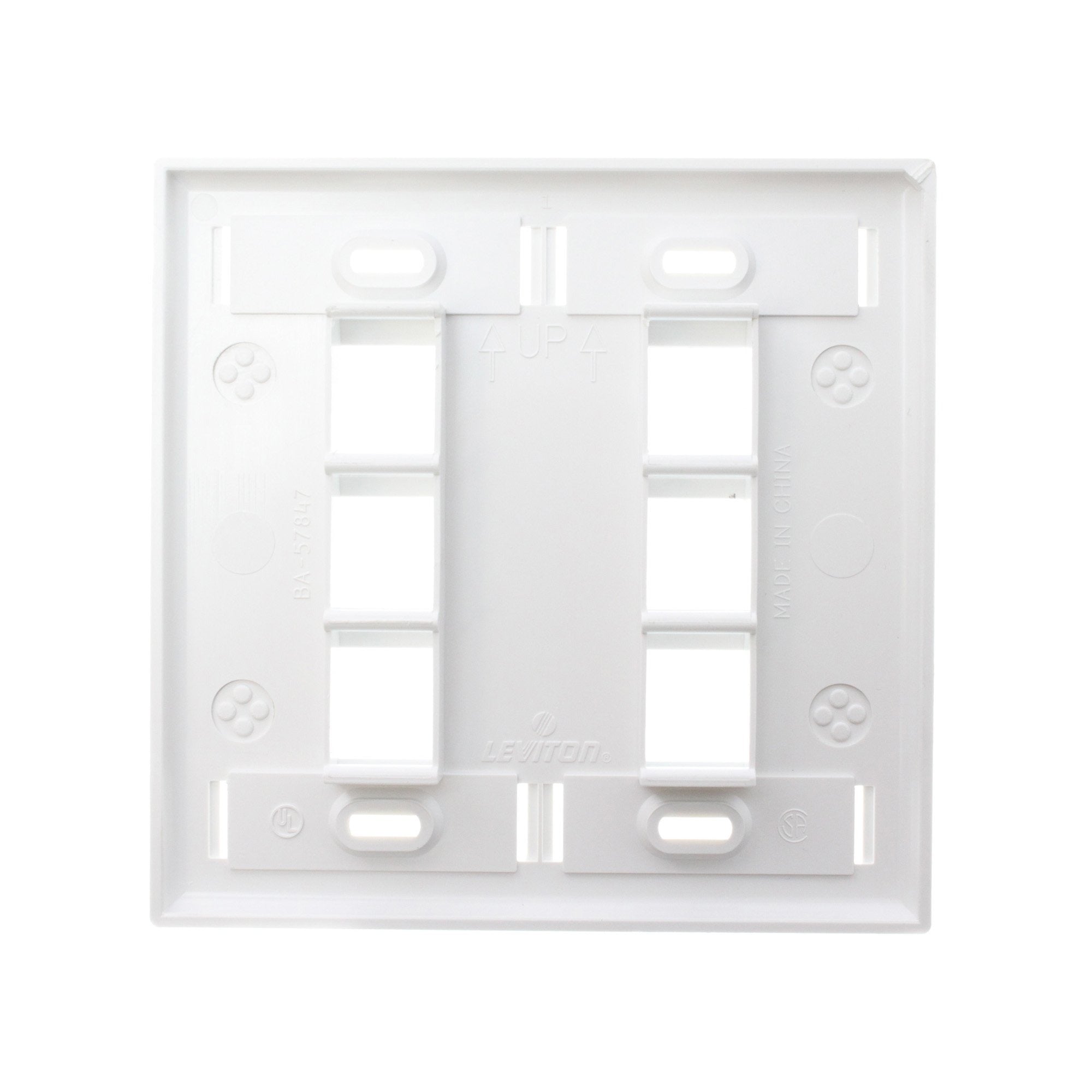

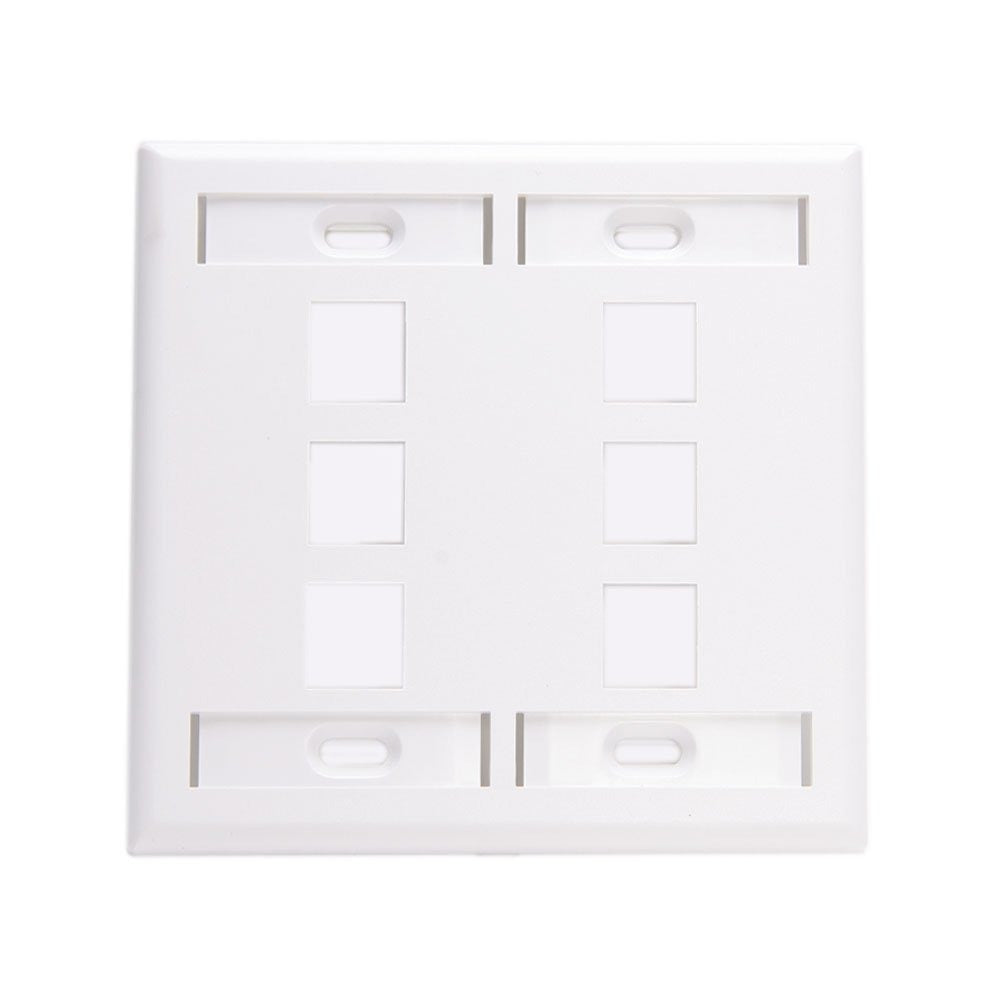

Leviton 42080-6WP 6-port Dual Gang Quickport Wallplate

Product Description

The LEVITON 42080-6WP is a 6-port, dual-gang QuickPort wallplate designed for structured wiring and multimedia station installations. Built from high-impact plastic in a flush-mount housing, it accepts any individual QuickPort snap-in module, giving installers full flexibility to configure each port independently. At 4.57 inches wide by 4.49 inches tall and just 0.43 inches deep, it fits within standard NEMA rectangular openings without modification. Each port position includes an ID designation window so ports can be labeled clearly after installation. Color-matched screws are included.

This wallplate is suited for residential and light commercial low-voltage installations where a clean, configurable outlet point is needed. Common applications include home theater runs, structured media centers, patch locations in offices, and any multimedia station requiring mixed-module port layouts. The white finish coordinates with standard decor trim. It is available in additional colors for projects requiring color-matched faceplate configurations across a space.

Key Features

• Accepts all individual QuickPort snap-in modules for per-port configurability
• Includes ID designation windows at each port position for clear labeling
• Color-matched wallplate screws included
• Flush-mount design fits within minimum rectangular NEMA openings
• High-impact plastic construction for durability in wall applications
• Dual-gang, 6-port configuration supports multimedia station layouts

Compatibility

Compatible with all individual QuickPort snap-in modules. Designed as an OEM-style dual-gang flush-mount wallplate for low-voltage structured wiring and multimedia station applications.

Installation Notes

Installation of low-voltage wallplates is typically performed by a low-voltage technician or licensed electrician following local codes and NEC low-voltage wiring guidelines. Ensure all low-voltage cabling is terminated and dressed before snapping modules into ports. No line-voltage power shutoff is required for the wallplate itself, but verify any adjacent circuits are de-energized if working inside a shared enclosure. Do not overtighten the mounting screws, as the high-impact plastic housing can crack under excessive torque.
