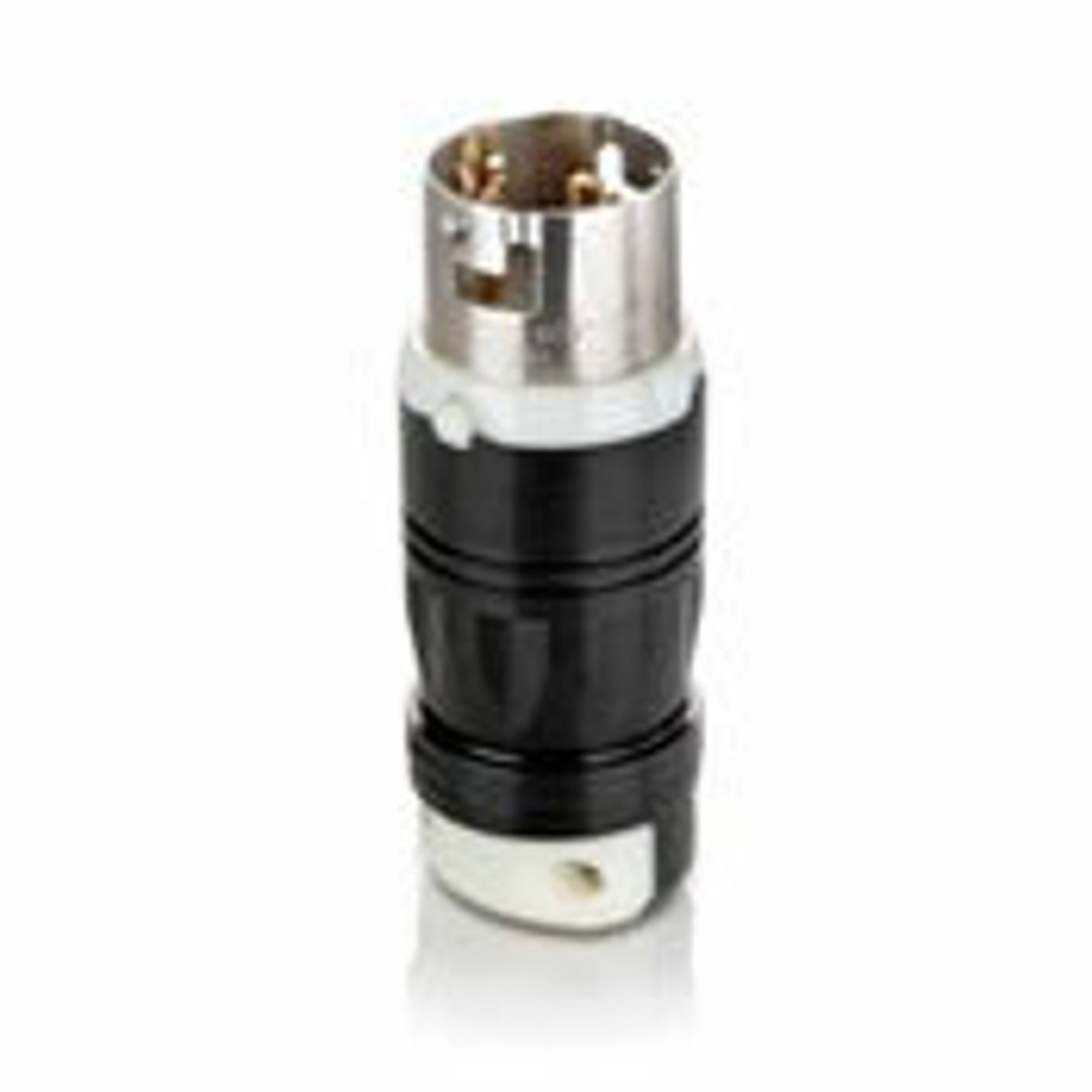

Leviton 3765C Plug LKG 600 VAC/250 VDC 50A 3 Poles 4 Wires

Product Description

Leviton 3765C is a locking plug with a voltage rating of six hundred VAC and two hundred fifty VDC, designed for a maximum current of fifty amperes. This three-pole, four-wire device is suitable for industrial applications. It has a rugged construction that resists impact, sunlight, and chemicals.

• Voltage rating: 600 VAC / 250 VDC
• Amperage rating: 50 A
• Cord diameter: 0.68 to 1.125 inches

Product Highlights

This locking plug features a unique cord clamp that securely grips various cord sizes without damage. The ergonomic design allows for easy handling and installation. Its durable nylon housing is suitable for harsh environments.

Product Information

Standard Information

• Manufacturer: Leviton
• Type: Locking Plug

Technical Specifications

• Catalog Number: 3765C
• Number of Poles: 3
• Number of Wires: 4
• Temperature Rating: -40 to 75 degrees C
• Material: Nylon
• Color: Black/White
• Dimensions: 2.56 inches diameter x 6.74 inches height
• Ground Type: Grounding
• Terminal Type: Set Screw/Cable Clamp
• Standards: UL Listed, RoHS Compliant
