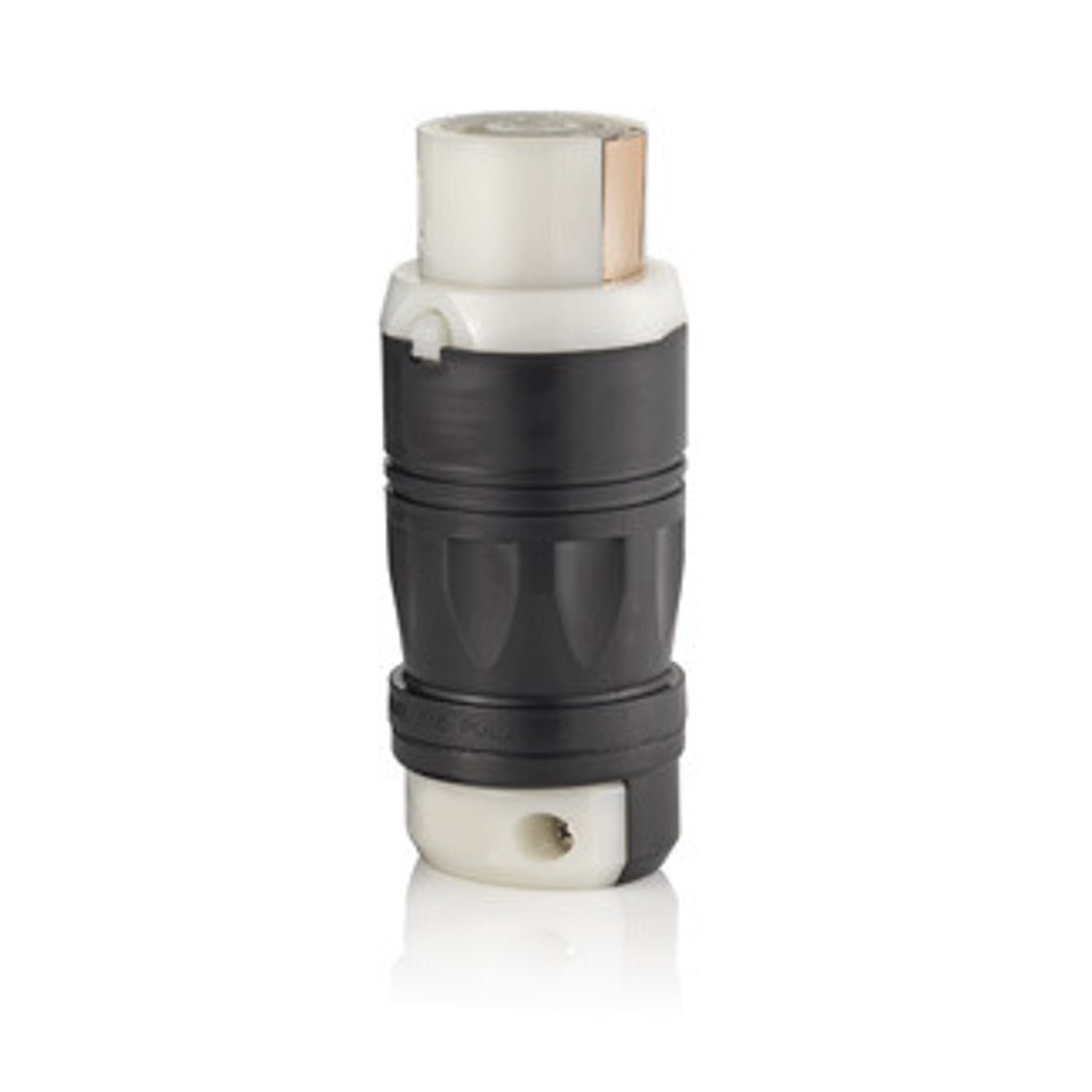

Leviton 3764C Locking Connector 600 VAC/250 VDC 50A 3 Poles 4 Wires

Product Description

Leviton 3764C is a grounding locking connector rated for six hundred volts alternating current and two hundred fifty volts direct current at fifty amps. This connector features three poles and four wires, making it suitable for various industrial applications. Its rugged design can handle a cord diameter between zero point six eight inches to one point one twenty-five inches, ensuring reliability in demanding environments.

• Voltage Rating: 600 VAC/250 VDC
• Amperage Rating: 50 A
• Construction Material: Nylon

Product Highlights

This connector is designed for industrial use, offering a robust option for secure electrical connections. It has a temperature rating from negative forty degrees Celsius to seventy-five degrees Celsius, ensuring performance across a wide range of conditions.

Product Information

Standard Information

• Catalog Number: 3764C
• Brand: Leviton

Technical Specifications

• Type: Grounding
• Number of Poles: 3
• Number of Wires: 4
• Cord Diameter: 0.68 to 1.125 inches
• Temperature Rating: -40 to 75 degrees Celsius
• Terminal Type: Screw
• Material: Nylon
• Dimensions: 2.56 inches Diameter x 7.1 inches Height
• Application: Industrial
• Standards/Approvals: RoHS Compliant, NOM Certified, CSA C22.2 No. 42, UL Listed
