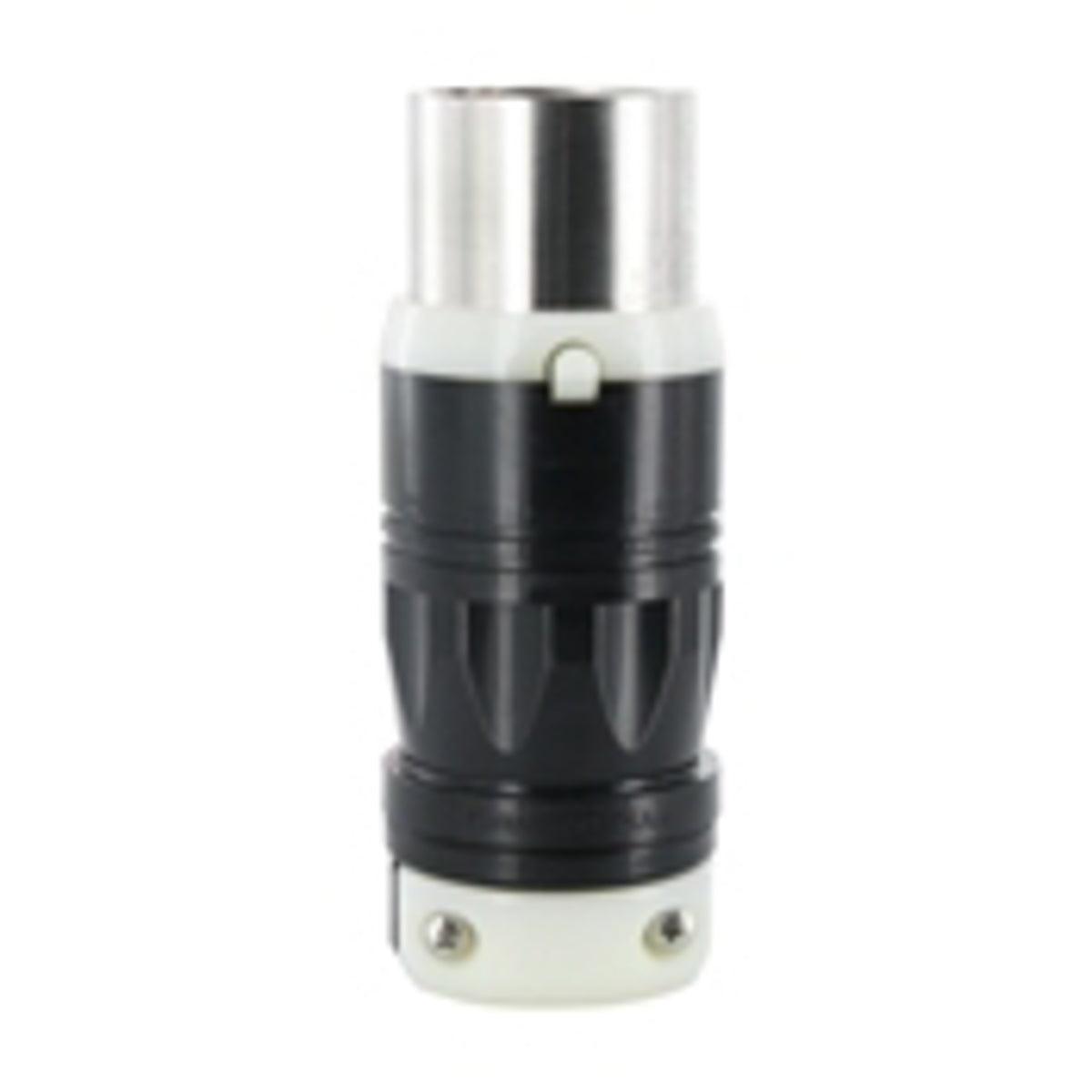

Leviton 3763C Locking Plug 50 Amp 250 Volt DC/600 Volt AC

Product Description

The LEVITON 3763C is a 50 Amp, 250 Volt DC/600 Volt AC, Non-NEMA, 2P, 3W, industrial grade locking plug with grounding. Constructed with rugged nylon, it resists impact, sunlight, chemicals, and rough use. It is suitable for industrial applications and features solid one-piece contacts for superior conductivity.

• Industrial grade locking plug
• Rated for 50 Amp, 250 Volt DC/600 Volt AC
• Constructed with rugged nylon

Product Highlights

This Leviton locking plug is ideal for industrial applications requiring a durable and reliable connection.

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 3763C
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: 3763C
• Manufacturer: Leviton
• Brand: Leviton
• Sub Brand: Black & White
• Country of Origin: Mexico
• Made in USA: No
• Amperage Rating: 50 A
• Application: Industrial
• Color: Black/White
• Conductor Range: 10-4 AWG
• Connection: Terminal Set Screw;Cable Clamp Screw
• Material: Nylon
• NEMA Rating: NON-NEMA
• Standard: NOM Certified (057);CSA C22.2 No. 42 (File 152105);UL Listed 498 (File E13399);RoHS Compliant
• UPC: 078477804391
• GTIN: 00078477804391
• Item Type: Locking Plug
• Environmental Conditions: Flammability (Rated V-0 Per UL94HB)
• Voltage Rating: 600 VAC;250 VDC
• Cord Diameter: 0.68 to 1.125 in
• Grade: Industrial
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 75 deg C
• Terminal Type: Set Screw/Cable Clamp
• Type: Grounding
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage Withstand: 2000V minimum per UL 498
• Maximum Working Voltage: 250V DC/600V AC as rated
• Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Environment: Dry
• Flammability: UL94V-2
• Operating Temperature: -40°C to 75°C
• Assembly Screws: Brass
• Cable Clamp Screw: Philips Head, SS 304
• Dust Shield: Santoprene TPE
• Face Module: Nylon
• Ground Post: Brass
• Ground Shunt: Bronze
• Housing Material: Nylon
• Plug Blade: 0.1000inch thick Brass
• Plug Blade Shroud: SS 302/304
• Standard Cable Clamp: Nylon
• Terminal Block: 0.062inch thick Copper
• Terminal Set Screw: SS 302/304
• Wiring Chamber: Nylon
• Cord Range: .680 - 1.125
• Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire
• Terminal ID: X, W, Y, Z and Green for ground
