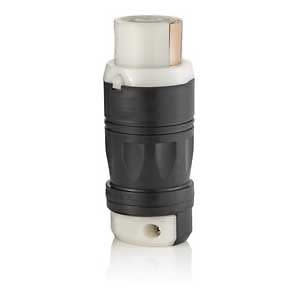

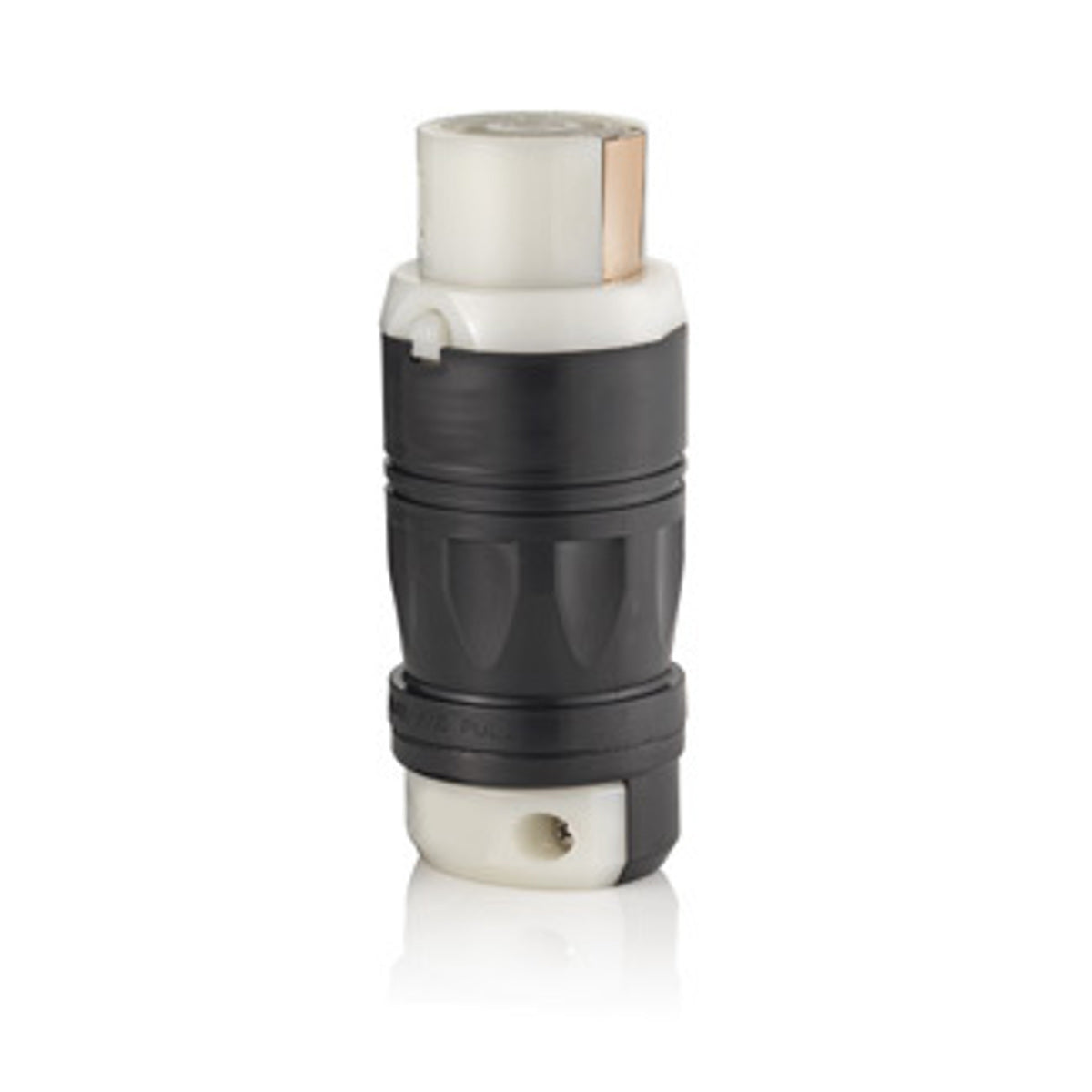

Leviton 3762C EB Conn Lock 50 Amp 2 Pole 3 Wire Non NEMA Locking Connector

Product Description

Leviton 3762C is a 50 Amp grounding locking connector designed for industrial use. This device operates at 600 Volt AC and 250 Volt DC, providing reliable connections in demanding environments. Constructed from nylon, it resists damage from impacts, chemicals, and sunlight.

• Rugged construction for industrial applications
• Compatible with 0.68 to 1.125 inches diameter cords
• Built to meet strict industry standards including RoHS and UL certifications

Product Highlights

The ergonomic design allows for easy gripping and pulling, enhancing usability on job sites. The unique cord clamp fits various cord sizes securely, eliminating strain on the cord.

Product Information

Standard Information

• Manufacturer: Leviton
• Country of Origin: Mexico

Technical Specifications

• Amperage Rating: 50 A
• Voltage Rating: 600 VAC/250 VDC
• Number of Wires: 3
• Material: Nylon
• Temperature Rating: -40 to +75 degrees C
• Dimensions: 2.56 inches diameter x 7.23 inches length
• Standards: CSA C22.2 No. 42, UL Listed 498, NOM Certified, RoHS Compliant
• Grounding: Yes
