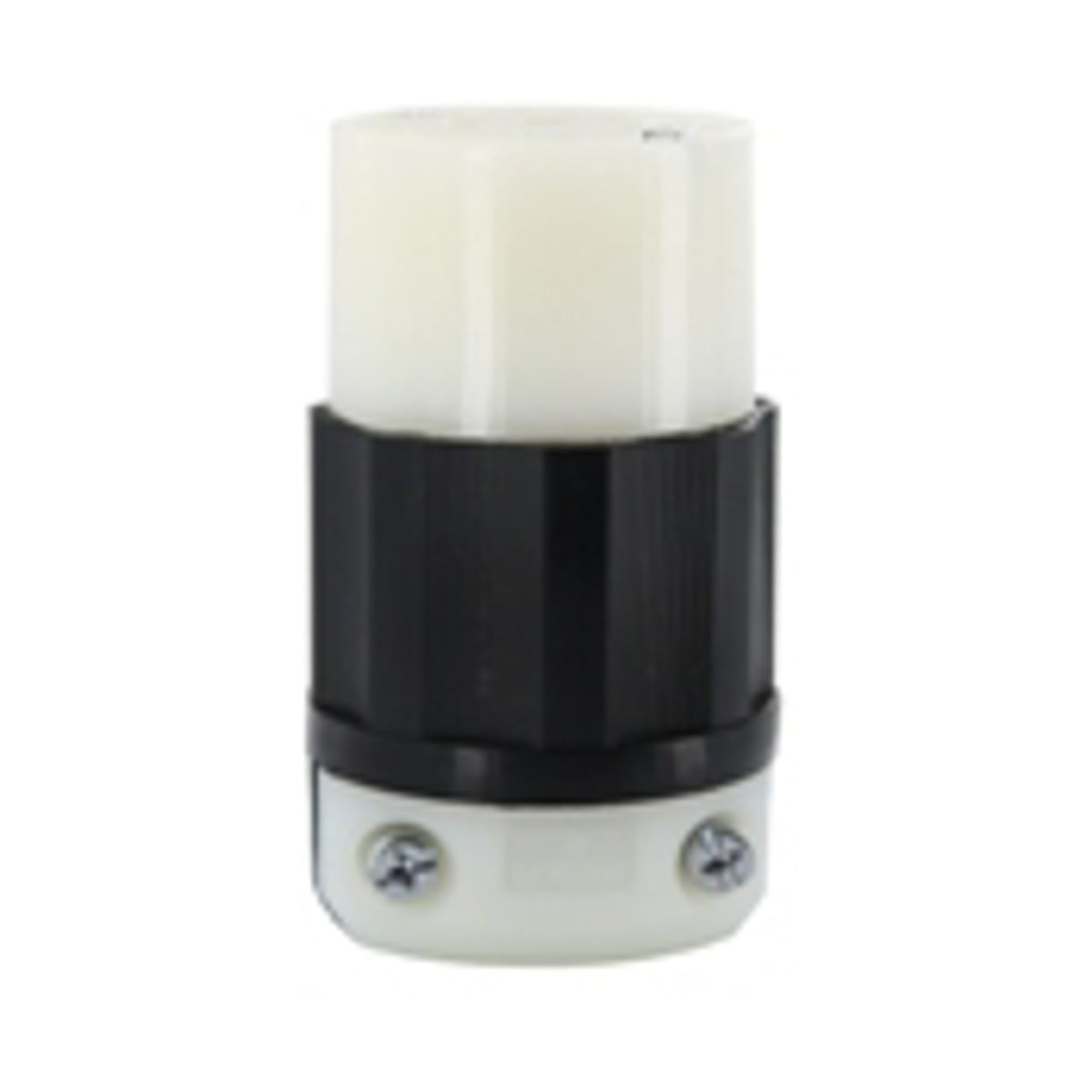

Leviton 3433-C Connector LKG 120/208VAC 30A 4 4 BK/WHT

Product Description

Leviton 3433-C locking connector is designed for 120/208 VAC, 30 A, with a 3-phase non-grounding configuration. This connector is built for tough industrial use and features a nylon construction with a black and white color scheme. Its dimensions are two point twenty-two inches in diameter and three point seventy-eight inches high. Ideal for applications that require a dependable connection under demanding conditions.

• Voltage Rating: 120/208 VAC
• Amperage Rating: 30 A
• Number of Poles: 4

Product Highlights

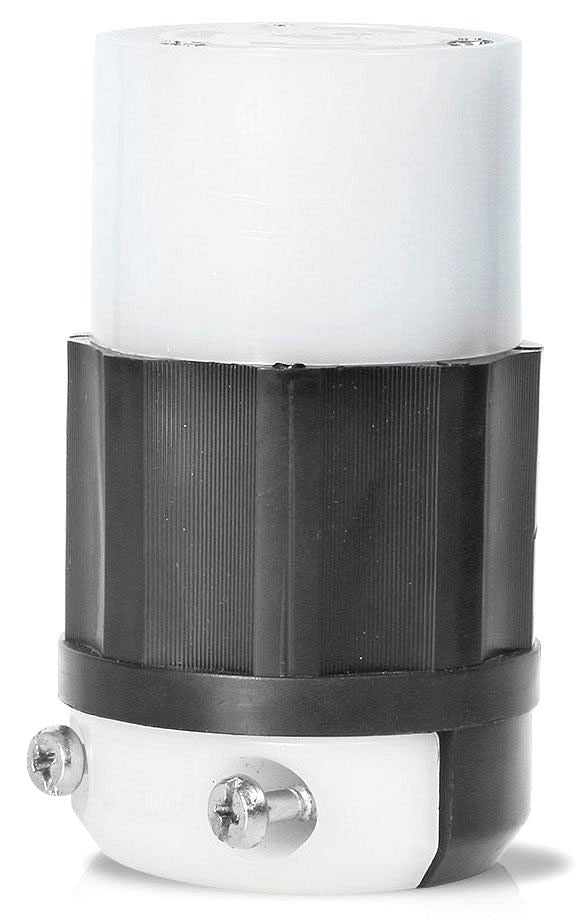

This locking connector is engineered for reliability and safety in industrial environments. It features a screw terminal for easy installation and maintenance.

Product Information

Standard Information

• Product Name: Leviton 3433-C Locking Connector
• Manufacturer: Leviton

Technical Specifications

• Catalog Number: 3433-C
• Material: Nylon
• Temperature Rating: -40 to 60 degrees Celsius
• Cord Diameter: 0.595 to 1.15 inches
• Number of Wires: 4
• Number of Phases: 3
• Dielectric Strength: 2000 V
• Color: Black/White
