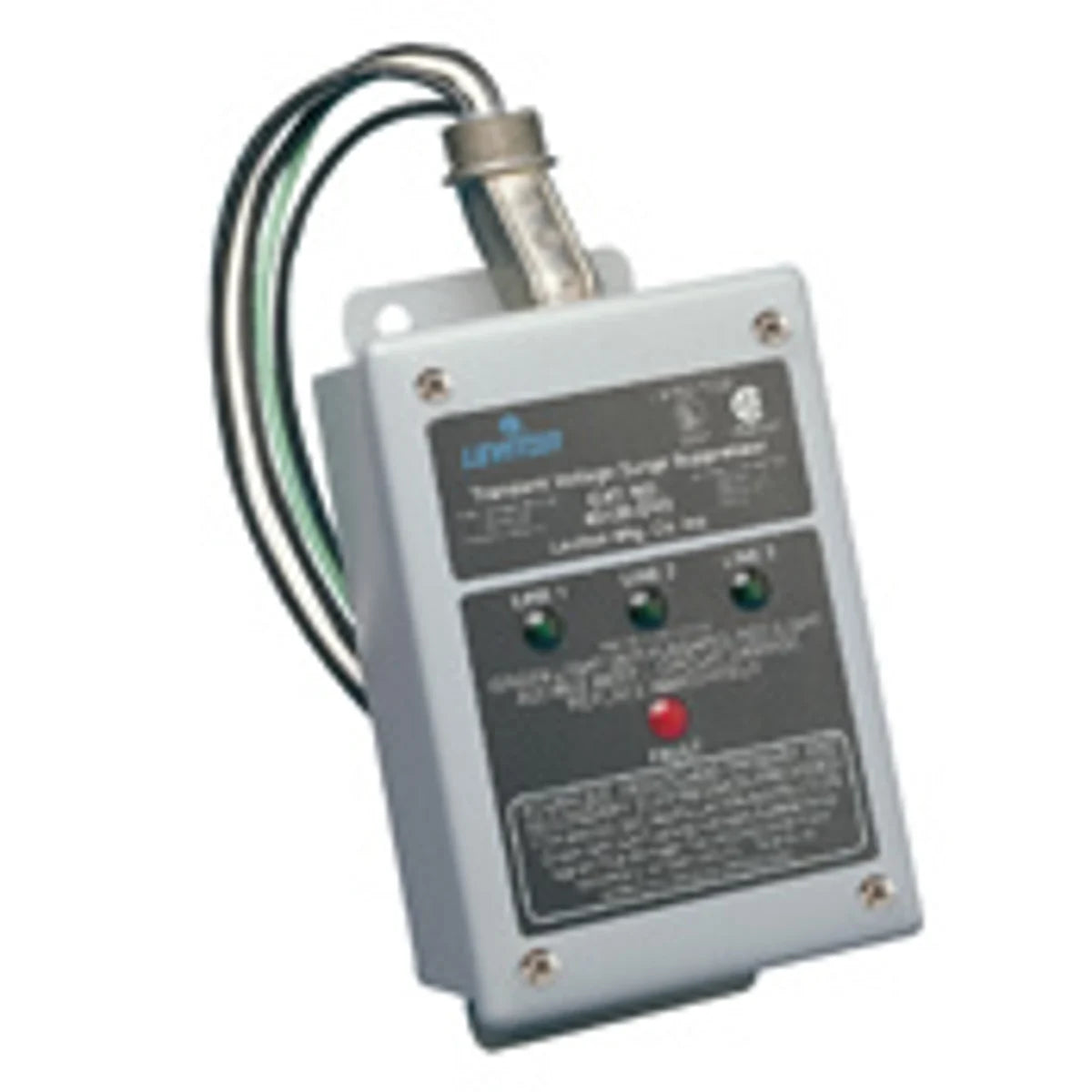

Leviton 32120-1 120/240V Type Single Phase Surge Protection Panel

Product Description

Leviton 32120-1 is a surge protection panel designed for 120/240 volts in single phase applications. This device protects sensitive electronic equipment from voltage transients in industrial, commercial, and residential settings. It meets UL 1449 standards to ensure reliability.

• 100% compatible with Decora Home Control and X10 systems
• Durable NEMA 3R enclosure
• Certified UL 1449 3rd Edition Type 2 device

Product Highlights

Leviton's surge protection technology diverts harmful voltage surges away from equipment, reducing the risk of failure and downtime. Utilize this device in critical applications for effective surge suppression.

Product Information

Standard Information

• Brand: Leviton
• Country of Origin: Mexico

Technical Specifications

• Voltage Rating: 120/240 volts
• Phase: 1
• Short Circuit Rating: 10 kA
• Peak Surge Current: 80 kA
• Electrical Ratings: 20 A, 50/60 Hz
• Operating Temperature: -10 to 60 degrees Celsius
• Storage Temperature: -20 to 85 degrees Celsius
• Weight: 0.21 lbs
• Dimensions: 7.50 H x 4.25 W x 3.25 D inches
• Material: Powder coated steel
• Environmental Conditions: Humidity 5% to 95% non-condensing
