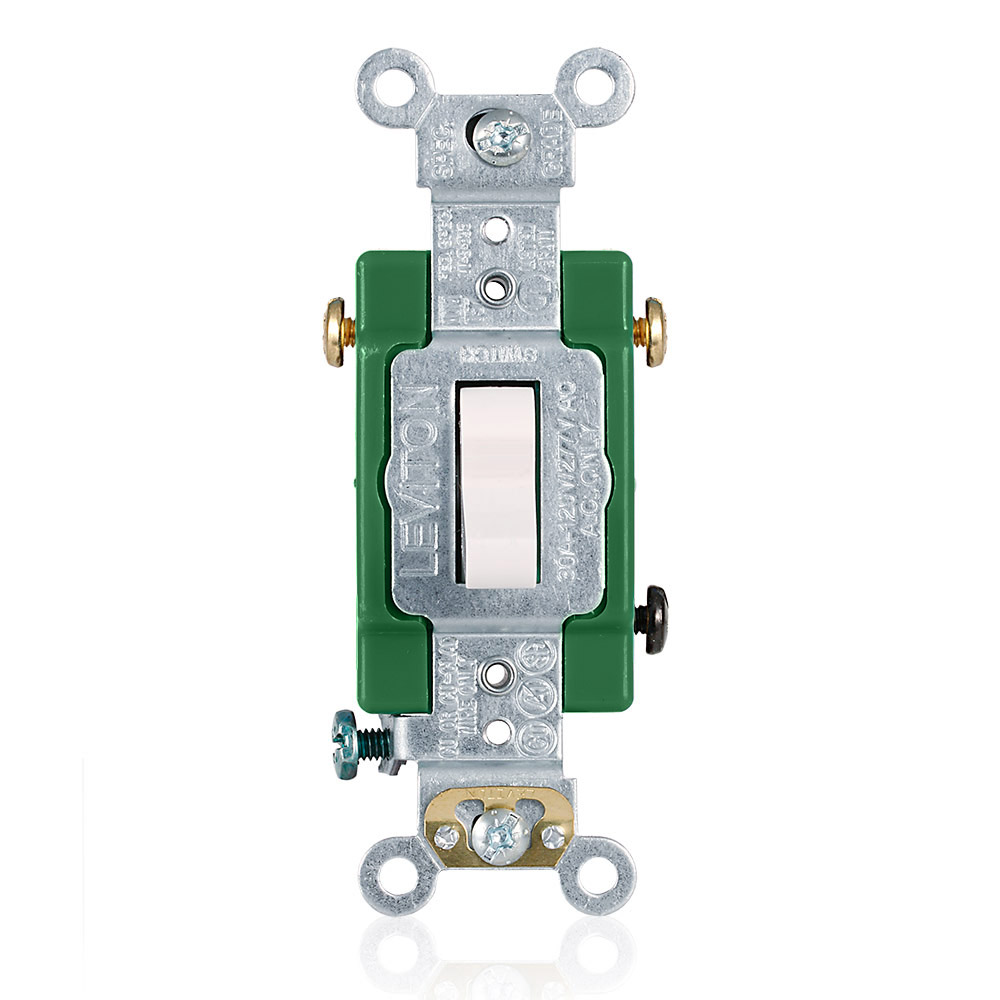

Leviton 3033-2W SM WHT SW 30 Amps

Product Description

Leviton 3033-2W is a toggle switch designed for commercial applications. It operates on 120/277 volts and has a current rating of 30 amps. The toggle actuator and NEMA rated enclosure ensure reliability in heavy-duty environments. This switch has been constructed with thermoplastic materials, providing durability and resistance to environmental factors.

• Rated for 30 amps at 120/277 volts
• Toggle actuator for easy operation
• NEMA WD-1 and WD-6 rated for versatility

Product Highlights

Leviton's industrial-grade toggle switch is ideal for both commercial and heavy-duty applications. The design includes features such as self-grounding clips and a back/side wire connection method for installation flexibility.

Product Information

Standard Information

• Catalog Number: 3033-2W
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120/277 VAC
• Power Rating: 2 hp
• Operating Cycles: 50000 Cycles
• Material: Thermoplastic
• Environmental Conditions: -40 to 65 degrees Celsius
• Mounting Type: Surface
• Number of Poles: 3
