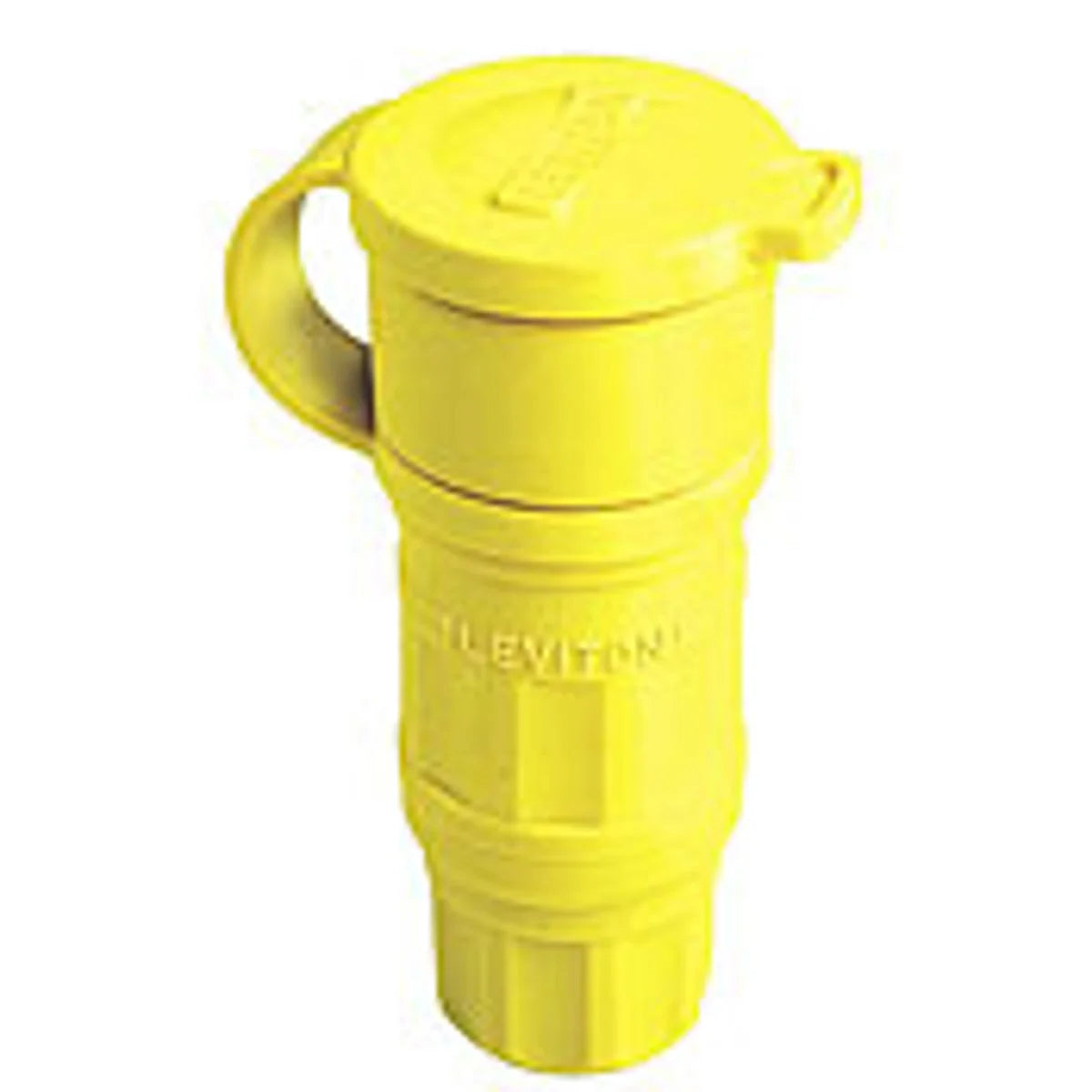

Leviton 29W74 30 Amp Locking Connector Industrial Grade Grounding Wetguard NEMA L14-30R

Product Description

The Leviton 29W74 is a 30 amp locking connector designed for industrial use. It operates at both 125 and 250 volts. This three-pole connector features a watertight design, making it suitable for outdoor applications. The screw terminal connection ensures reliability and ease of installation.

• Rated for 30 Amps
• Compatible with NEMA L14-30R standards
• Constructed from durable TPV material

Product Highlights

This locking connector is ideal for industrial settings where moisture protection is a must.

Product Information

Standard Information

• Catalog Number: 29W74
• Brand: Leviton

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125/250 VAC
• Number of Poles: 3
• Number of Wires: 4
• NEMA Rating: L14-30R
• Material: TPV
• Temperature Rating: -40 to 60 degrees Celsius
• Dimensions: 2.75 inches Diameter x 5.52 inches Length
• Environmental Conditions: Flammability rated V-2 per UL 94; Operating temperature range -40 to 60 degrees Celsius
