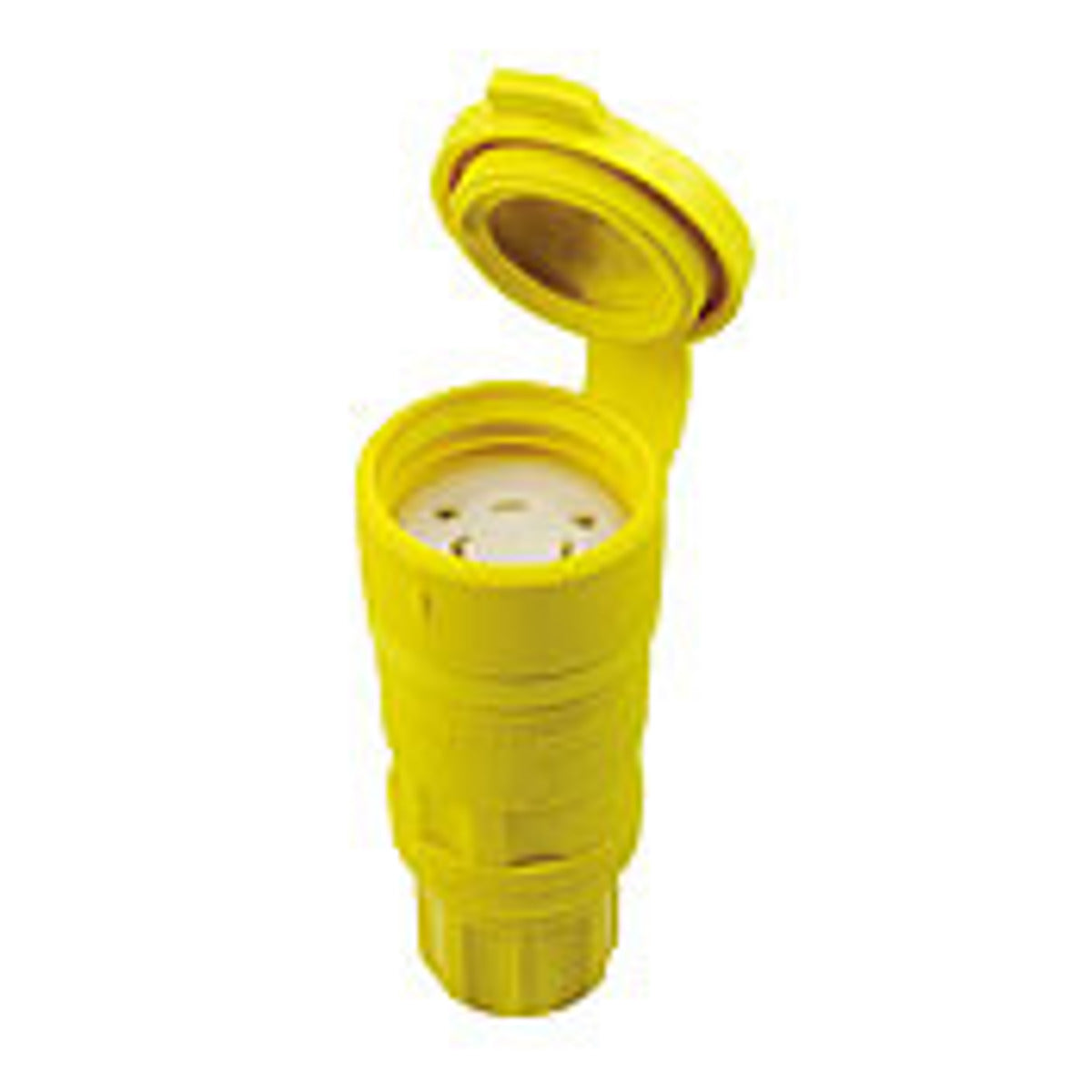

Leviton 29W47 Locking Connector 30 Amp 125 Volt NEMA L5-30R Industrial Grade

Product Description

The Leviton 29W47 is a locking connector designed for 30 Amp and 125 Volt applications. This NEMA L5-30R connector is suitable for industrial use and provides reliable performance in wet conditions.

• Rated for a maximum of 30 Amps
• Temperature range from negative forty to sixty degrees Celsius
• Compatible with cords ranging from five-eighths to one and one-eighth inches in diameter

Product Highlights

This locking connector is part of Leviton's Wetguard line, ensuring superior watertight performance. It meets NEMA standards, providing protection against water ingress.

Product Information

Standard Information

• Manufacturer: Leviton
• Manufacturer Part Number: 29W47

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 125 VAC
• NEMA Rating: L5-30R
• Number of Poles: 2
• Number of Wires: 3
• Temperature Rating: -40 to 60 degrees Celsius
• Material: TPV
• Terminal Type: Screw
• Cord Diameter: 5/8 to 1-1/8 in
• Dimensions: 2.75 in Dia x 5.52 in L
• Standards/Approvals: ANSI C73, CSA C22.2 No.42, NEMA WD1/WD6, UL 498, UL94 V-2
