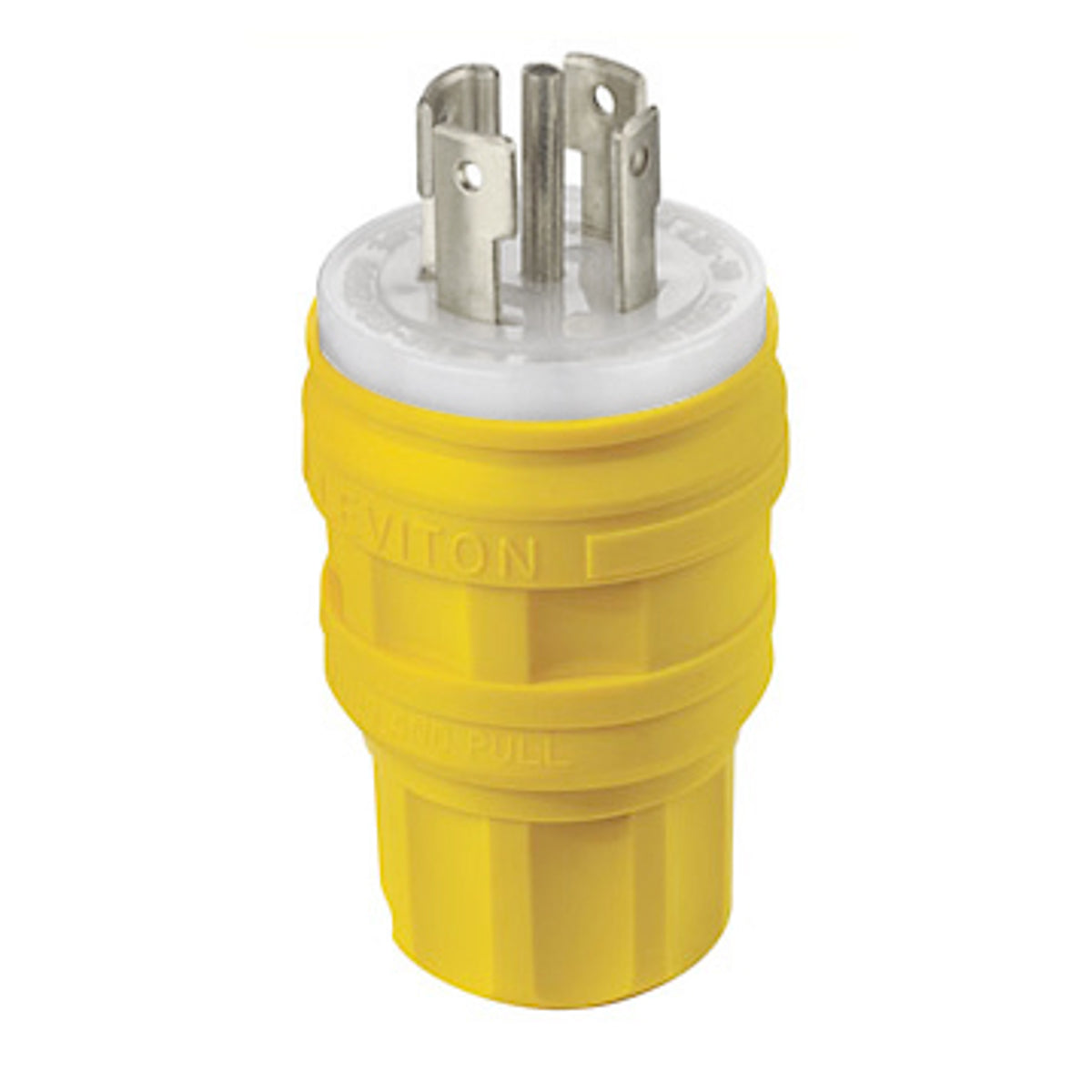

Leviton 28W81 30 Amp 120/208 Volt 3 Phase Y Locking Plug Industrial Grade Grounding Wetguard Yellow

Product Description

Leviton, 28W81, is a locking plug designed for use in industrial applications. It provides grounding and is watertight. This device operates at 120/208 VAC with a rating of 30 amps. It features four poles and five wires.

• Watertight design suitable for industrial environments
• Rated for 30 amps, usable with 120/208 volt systems
• Made from durable TPV material with screw terminal connections

Product Highlights

The Leviton 28W81 locking plug is engineered for safety and reliability. It is part of the Wetguard series and meets NEMA L21-30P ratings, ensuring excellent water ingress protection.

Product Information

Standard Information

• Catalog Number: 28W81
• Manufacturer: Leviton

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 120;208 VAC
• Application: Industrial
• Color: Yellow
• Material: TPV
• Enclosure Rating: IP67
• Number of Poles: 4
• Number of Wires: 5
• Temperature Rating: -40 to 60 degrees Celsius
• Cord Diameter: 5/8 to 1-1/8 inches
• Connections: Screw Terminal
• NEMA Rating: NEMA L21-30P
• Size: 2.28 inches Diameter x 3.61 inches Length
• Standards: NEMA (WD-1, WD-6); ANSI (C-73); NOM Certified; CSA (C22.2 No.42); UL (498)
