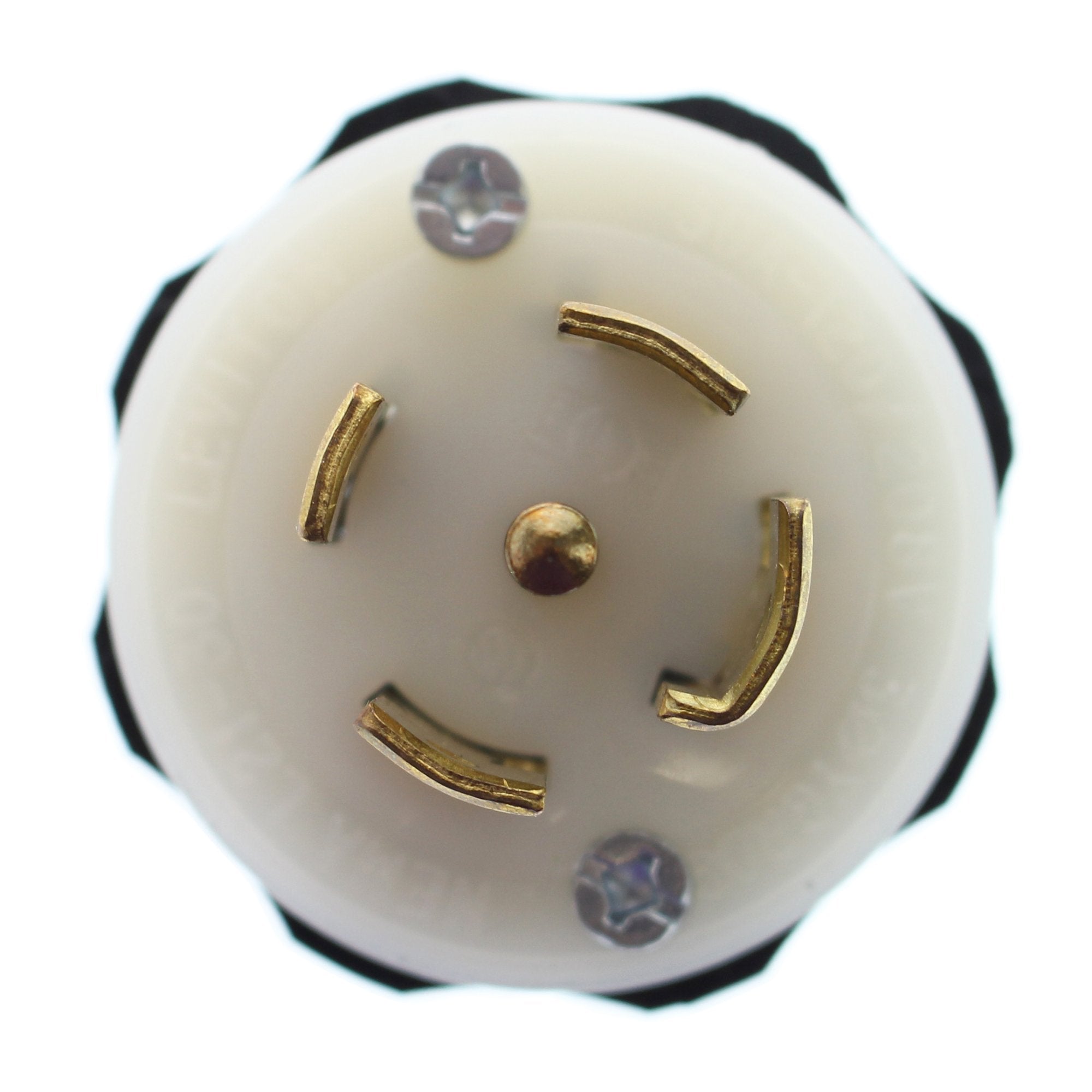

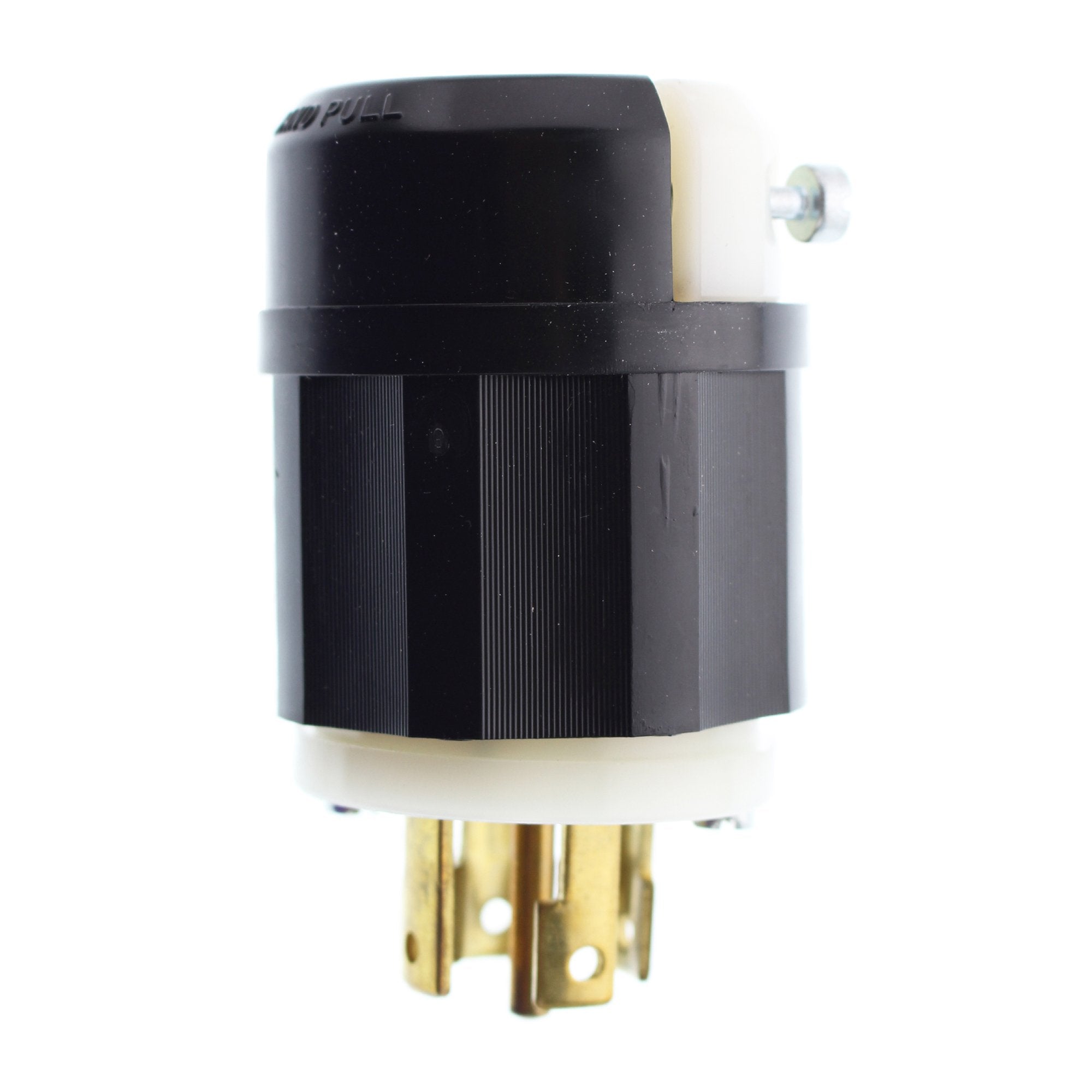

Leviton 2811 EB PLG LCK 4PO5WI3PH L21-30P30A120/208V

Product Description

The Leviton 2811 is a locking plug with a current rating of thirty amps and a voltage of one hundred twenty to two hundred eight volts. This device is designed for industrial applications and meets the NEMA L21-30P configuration. It features four poles and five wires, providing robust grounding for three-phase systems.

• Nylon body with rugged construction
• Temperature rating of negative forty to sixty degrees Celsius
• Compatible with cords from zero point five nine five to one point fifteen inches in diameter

Product Highlights

Leviton's locking devices are known for their reliability and performance. This plug supports industrial-grade applications and provides a safe connection for heavy-duty electrical usage.

Product Information

Standard Information

• Brand: Leviton
• MPN: 2811

Technical Specifications

• Voltage Rating: 120/208 VAC
• Amperage Rating: 30 A
• Number of Poles: 4
• Number of Wires: 5
• Horsepower Rating: 3 hp
• NEMA Rating: L21-30P
• Connection Type: Screw Terminal
• Material: Impact Modified Nylon
• Dimensions: 2.22 in Dia x 2.7 in L
• Temperature Rating: -40 to 60 degrees Celsius
• Weight: 0.16 lb
