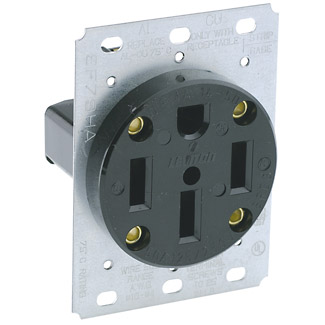

Leviton 279-S Shallow Single Receptacle 50A 125/250V Flush Mount 279-S00

Product Description

The Leviton 279-S is a shallow design single receptacle configured as a NEMA 14-50R, rated 50 A at 125/250 V for flush mounting. It provides a 3-pole, 4-wire grounding arrangement with heavy-gauge brass double-wipe contacts and a galvanized steel strap in a high-impact polypropylene body. Side-wired terminals accept up to #4 AWG conductors (torque 40 in-lbs) and the device withstands 2000 V per UL 498. Operating range is -40 C to 60 C. Not recommended for electric vehicle charging.

• NEMA 14-50R configuration, 50 A, 125/250 V, 3-pole 4-wire grounding; flush mount, shallow design
• High-impact polypropylene body with galvanized steel strap and brass double-wipe line contacts
• Side-wired terminals accept #4 AWG (torque 40 in-lbs); withstands 2000 V per UL 498; operating -40 C to 60 C

Product Highlights

Shallow industrial-grade NEMA 14-50R flush receptacle, 50 A/125-250 V, brass contacts, #4 AWG terminals

Product Information

Standard Information

• Brand: LEVITON
• Manufacturer Part Number: 279-S
• Country of Origin: Mexico
